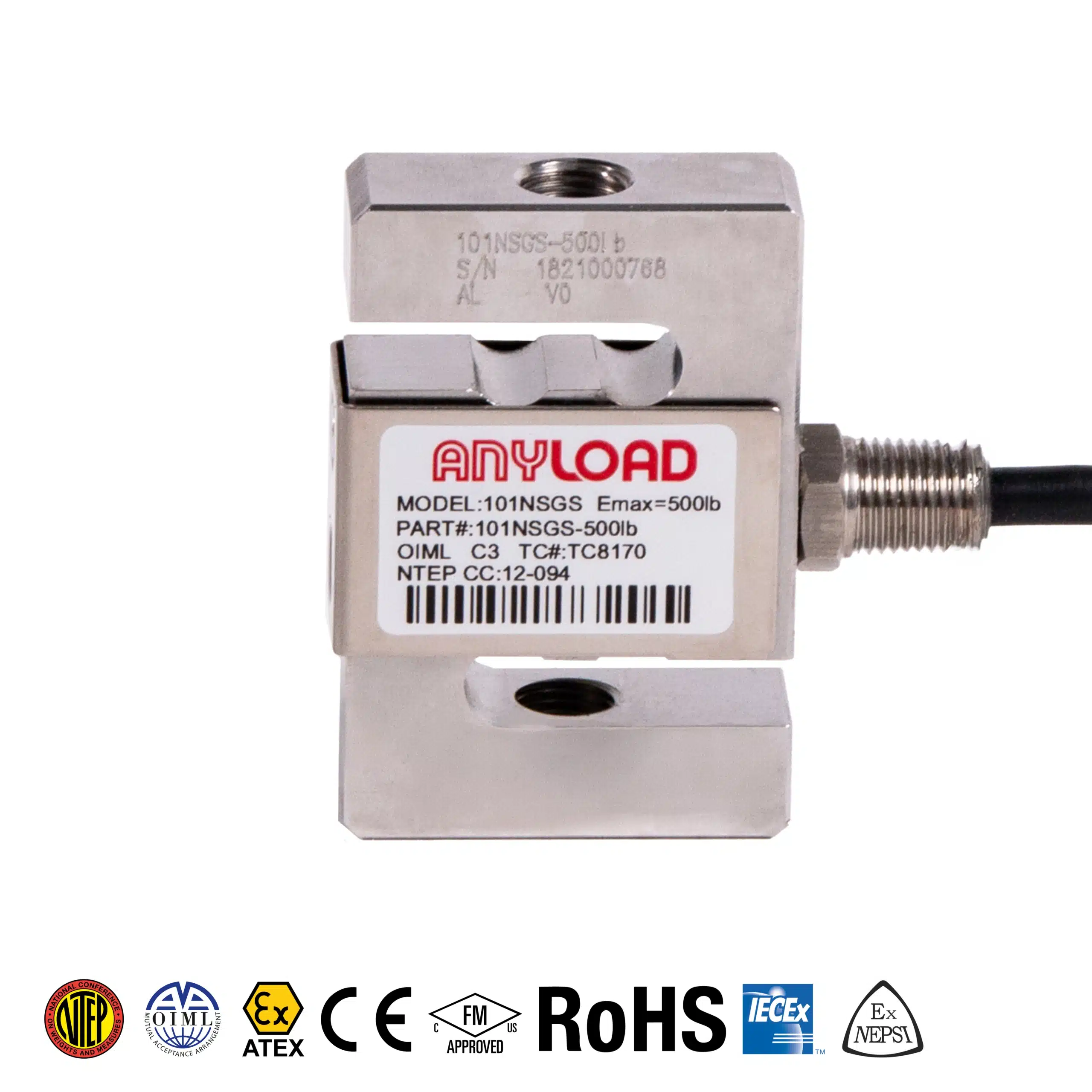

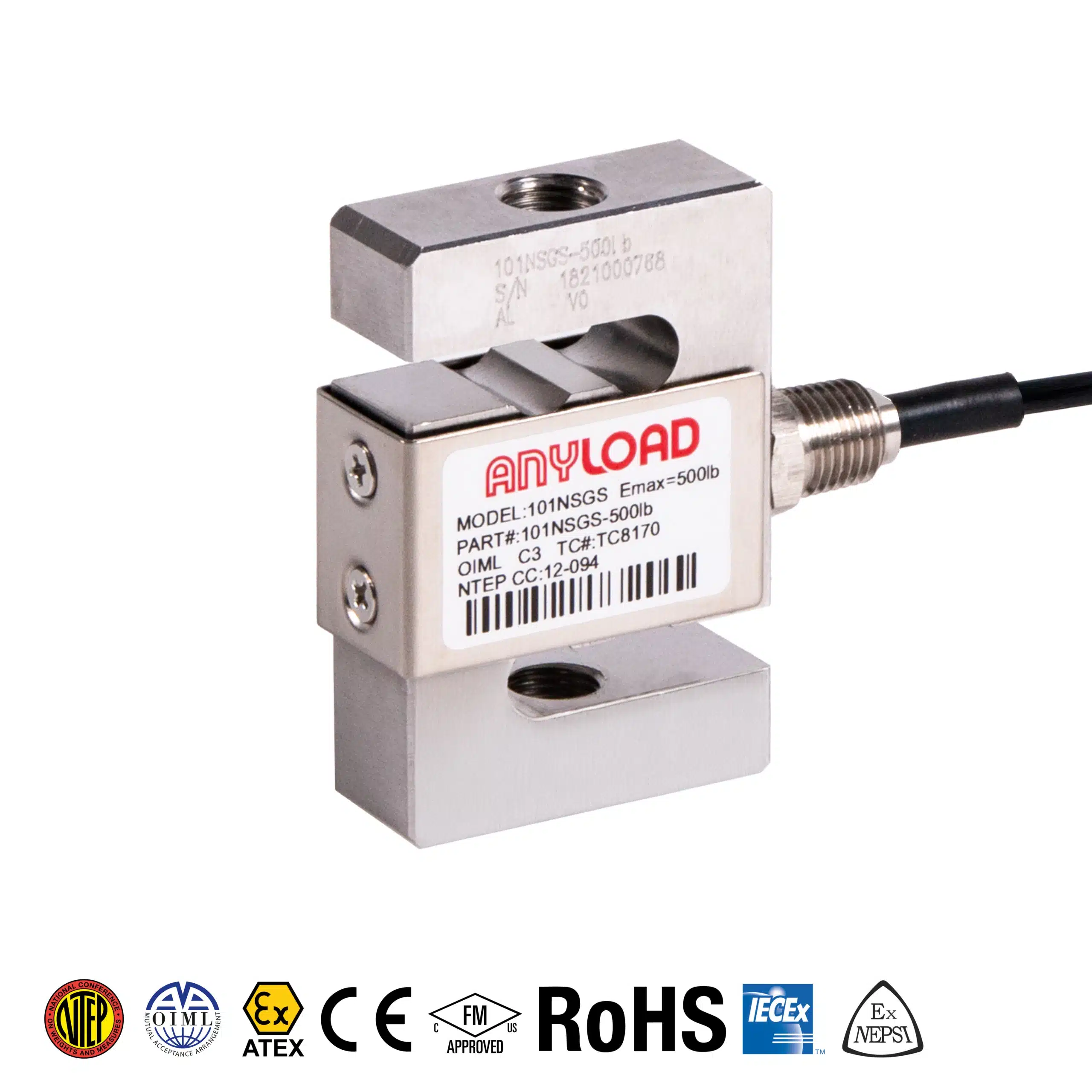

101NSGS S-Beam Load Cell

The ANYLOAD 101NSGS is a stainless steel S-beam load cell designed for accurate, repeatable weight measurement in environmentally sealed applications. Built from 17-4PH stainless steel, it is offered in 13 rated capacities from 50lb up to 20,000lb, with a nominal full-scale output of 3.0 mV/V and a tightly controlled zero balance. Nonlinearity, repeatability, and hysteresis error are each held below roughly 0.017 percent, and creep over 30 minutes stays below 0.023 percent, giving engineers and OEM designers the stability they need for scale, weighing, and force measurement systems. Cells rated 500lb and below carry an IP66 seal, while 1Klb to 20Klb models are rated IP67, and every capacity is protected by a 150% safe overload and a 300% breaking overload rating.

Installation and integration are straightforward. Threaded mounting holes range from 1/4-28 UNF-2B on the lowest capacities up to 1-12 UNF-2B on the 20Klb cell, and the dimensional drawing and tables give height, length, width, and thread size in both inches and millimeters, along with approximate weights for each part number. The standard 5.1 mm cable is 6 meters long and uses a clear color code: red for excitation positive, black for excitation negative, green for signal positive, white for signal negative, and a bare shield wire. The datasheet also documents the 350 ohm input and output resistance, 10V recommended excitation (15V maximum), insulation resistance, and the compensated temperature range of -10°C to 50°C (14°F to 122°F), so you can specify, wire, and mount the cell without guesswork.

The 101NSGS is RoHS compliant and is documented for legal-for-trade use, with NTEP Class III single-cell ratings and OIML MAA C3 and C4.5 classes across its capacity range. ATEX, FM, and IECEx approved versions are available under the “-Ex” suffix. An interchangeability reference cross-lists equivalent models from Artech, Coti Global, Mettler-Toledo, Rice Lake, and Vishay (Celtron, Revere Transducers, and Sensortronics), helping dealers, service technicians, and procurement teams quickly identify a direct ANYLOAD replacement.

See more

- +

Features

  • Rated Capacities: 50lb, 100lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
  • Material: Stainless steel
  • Full Scale Output: 3mV/V ± 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • NTEP 1:4 500 Class III, Single Cell certified from 100lb-500lb
  • NTEP 1:5 500 Class III, Single Cell certified from 1Klb-20Klb
  • OIML MAA C3, Y=17 000 certified from 200kg-1.5t
  • OIML MAA C4.5, Y=14 000 certified from 2t-10t
  • CE, RoHS and Ex certified
  • ATEX, FM, IECEx available upon request

Specifications

Rated Capacities 50lb, 100lb, 200lb, 250lb, 500lb, 1Klb, 1.5Klb, 2Klb, 2.5Klb, 3Klb, 5Klb, 10Klb, 15Klb, 20Klb
Full Scale Output 3mV/V ± 1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 350Ω ± 7Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Compensated Temperature Range –10°C to 50°C/14°F to 122°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Cap.≤500lb: Environmentally Sealed/IP66 ; Cap.≥1Klb: Environmentally Sealed/IP67
IP Rating IP67

Interchangeable

Artech SS20210
Coti Global CGSB-SS
Mettler Toledo SLS510*
Rice Lake RL20000 SS
Rice Lake RL20000 ST
Vishay Celtron STC-SS
Vishay Revere Transducers 9363
Vishay Sensortronics 60050

* SLS510’s height of 500lb-2KLB: 2.40inch; 3Klb: 3.90inch.
Thread of SLS 15Klb: 1-14 UNF-2B
