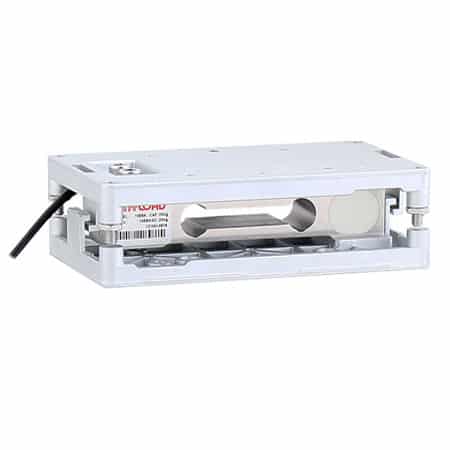

TMA-108B Compression Test Mount

ANYLOAD TMA-108B Compression Test Mount is an easy-to-use mount that can be used for demonstration or testing of your scale indicators, remote displays, printers, computers, PLC, etc. This Test Mount is very useful especially in very complex installation. You can install and test first your indicating device using this TMA-108B Test Mount to make sure the indicating device works with the requirements like cable length and calibration prior in installing the device to its complex location:

  • Aluminum single point load cell with an aluminum mount
  • Capacities: 6kg, 20kg (other capacities available upon request)
  • CE, RoHS, Ex, OIML MAA, NTEP approved for load cells
  • Four points overloading protection and anti-lifting protection
  • Available options: Capacities of 3kg, 7kg, 10kg 15kg and 30kg are available upon request; application for 6-wire cable load cell
Part No. Rated Capacity Shipping Weight (kg) Approx.
TMA-108B-6kg 6kg 0.8
TMA-108B-20kg 20kg 0.8
