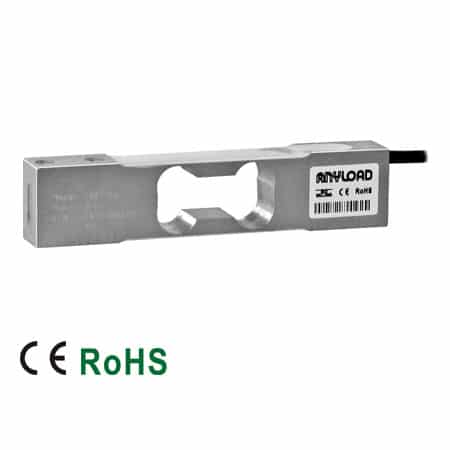

108TSLL Single Point Load Cell

Description:

The 108TSLL is an affordable single-point that offers versatility and superior accuracy. The IP66 stainless steel construction provides reliable performance under challenging conditions. Common applications include platform scales, bench scales, check weighing, retail scales, and more. The 108TSLL is also interchangeable with RL1380.

Features:

  • Material: Stainless steel
  • Rated Capacities: 7kg, 10kg, 15kg, 30kg, 60kg, 100kg, 150kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP66
  • CE and RoHS certified
Rated Capacities 7kg, 10kg, 15kg, 30kg, 60kg, 100kg, 150kg
Reference Max. Platform Size 400mm x 400mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.017%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.017%
Creep in 30 minutes < ± 0.023%
Input Resistance 385Ω ± 15Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Nominal Temperature Range 10°C to 40°C/14°F to 104°F
Service Temperature Range 18°C to 65°C/0°F to 149°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP66

pdf- Download data sheet

pdf- 108TSLL-(7-60)kg

Note: You may need a software that can open/view STEP files.

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

Manufacturer Model
Coti Global CG-PWS
HBM PWS
Rice Lake RL1380
