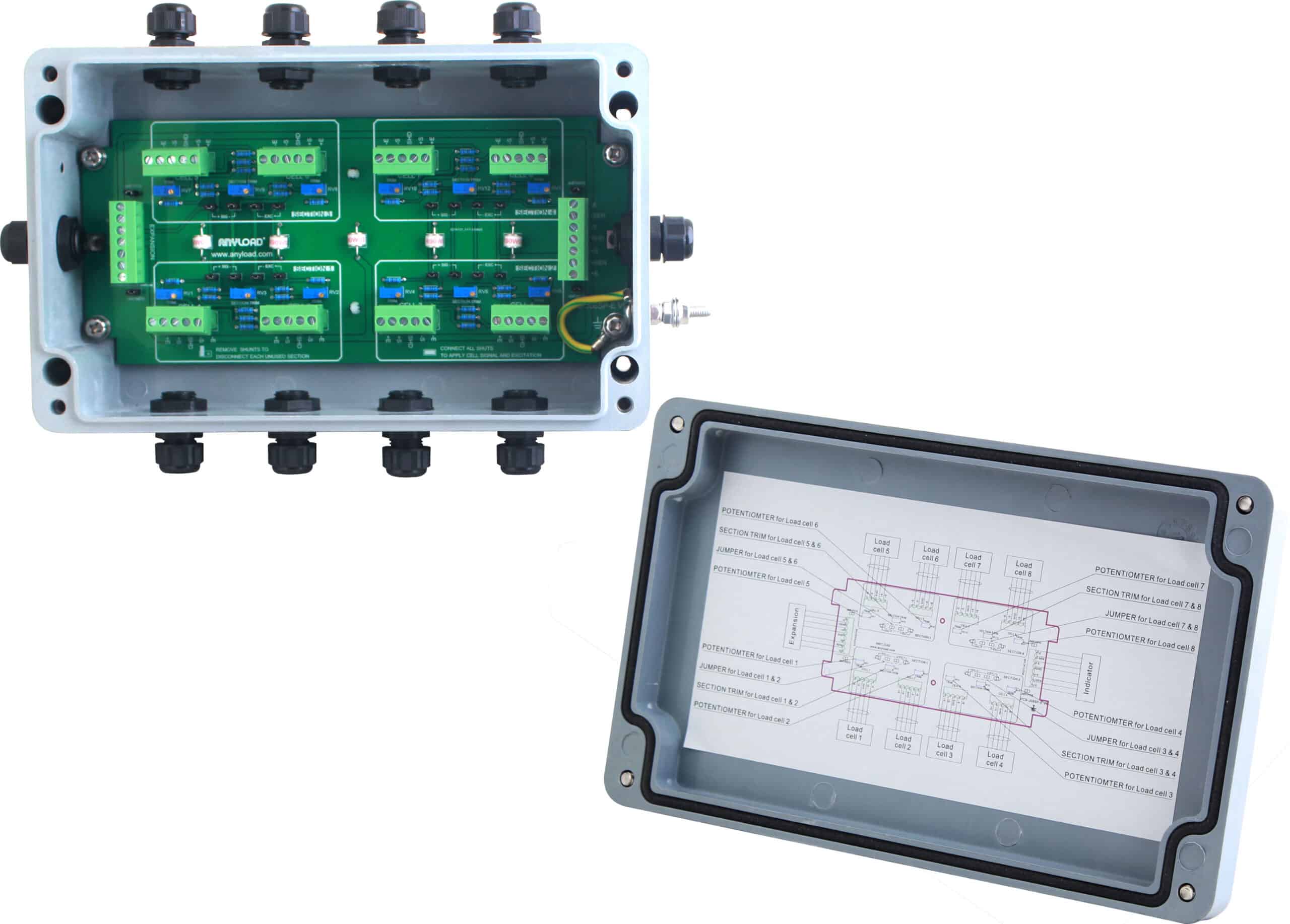

J08SP-E Junction Box

ANYLOAD J08SP-E junction and summing box accepts inputs from multiple load cells and sums up the generated signals into a single output to ensure an accurate multi-cell balance adjustment.  The J08SP-E is housed in a fiberglass reinforced polyester enclosure purpose-built to prevent condensation and saltwater damage. It is designed to accommodate two to eight parallel load cell connections with an expansion port for wiring additional junction boxes.  The J08SP-E load cell junction box is easy to install with quick removable load cell connectors and with our captive screw design securing the cover. This model equips with lightning/over voltage protection.

  • Enclosure Material: Fiberglass Reinforced Polyester
  • Number of cells: 2-8 single cells
  • Section or individual cell with signal trim
  • Lightning/Overvoltage Protection
  • Quick removable load cell connectors
  • Switchable On/Off power per channel
  • Equipped with independent potentiometers
  • Preinstalled GORE breather vent
  • Conformal coated circuit board
  • Expansion port to/for additional J-Box
  • "No-loss" captive screw design
  • IP Rating: IP67
Clear
Product Enquiry
Number of cells 2-8 single cells
Input Cable Fittings M20: 6mm-12mm diameter cable
Output Cable Fittings M20: 6mm-12mm diameter cable
Trimming Options Section or individual cell with signal trim
Enclosure Material Fiberglass Reinforced Polyester
IP Rating IP67
Load Cell Resistance Signal Trim
350Ω 3.6% of output
700Ω 6.3% of output
1000Ω 7.0% of output

pdf- Download data sheet
