CCS Load Cell Cable Connector with Threaded Coupling, Nylon 66, IP68

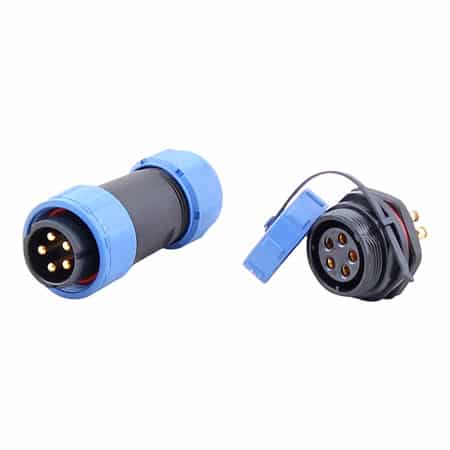

CCS Cable Connector

  • Contacts: 5, 7
  • IP Rating: IP68
  • Water resistant design
  • Connector with threaded coupling
  • CCS5-S has a smaller outer cable diameter than CCS5-L
Clear
Product Enquiry
Part Number CCS5-S CCS5-L CCS7-L
Rated Current 30A 15A
No. of Contacts 5 7
Contact Diameter φ3mm×5 φ2mm×7
Contact Resistance 1MΩ 2.5MΩ
Wire Size mm / AWG ≤4.17/11 ≤2/14
Termination Screw Screw Solder
Cable Outer Diameter φ4.5-7mm φ7-12mm
Shell Material PC, Nylon66, fire resistance: V-0
Insert Material PPS, max temperature 260oC
Contact Material Brass with gold plating
Rated Voltage (AC) 500V
Test Voltage/min (AC) 1500V
Mating Cycle >500
Input Resistance 2000MΩ
Working Temperature -40C to 85C / -40F to 185F
Protection Class IP68
Part No. Contacts Termination Shipping Weight (kg) Approx.
CCS5-S 5 screw 0.05
CCS5-L 5 screw 0.05
CCS7-L 7 solder 0.05

pdf- Download data sheet
