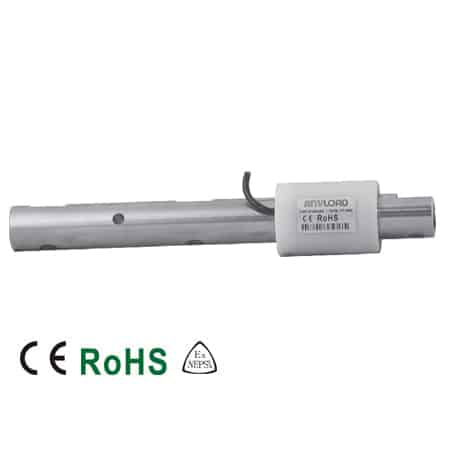

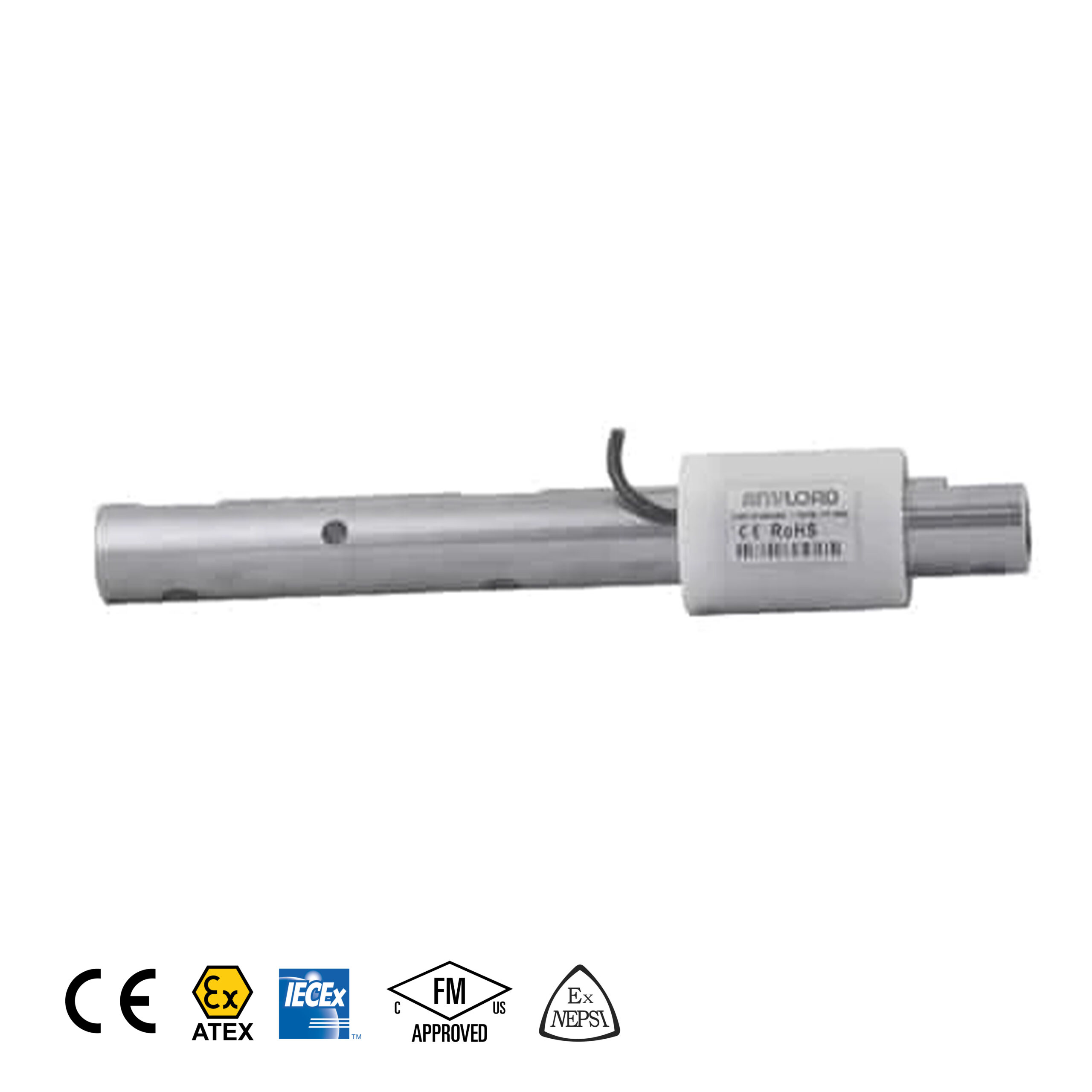

563WS-WBL Single Ended Beam Load Cell
The ANYLOAD 563WS-WBL is a single-ended beam load cell constructed from 2Cr13 stainless steel, designed as a direct bolt-in weigh bar replacement for platform and bench scale applications. Rated at 1.25Klb capacity, the 563WS-WBL delivers a full scale output of 2.0 mV/V ±0.25% with excellent non-linearity and repeatability performance under ±0.05% and ±0.03% respectively, making it well-suited for legal-for-trade and industrial weighing systems.
The environmentally sealed IP67 rating ensures reliable performance in wet and washdown environments commonly found in food processing, agriculture, and industrial weighing installations. The load cell is compatible with 10V excitation (15V maximum) and features a standard 4-wire plus shield cable configuration, simplifying integration with most weight indicators and junction boxes.
The 563WS-WBL is a verified interchangeable replacement for the Avery Weigh-Tronix Bolt-In Weigh Bar (ProDec series), Coti-Global CG-WBL-SS-1.25Klb, and Rice Lake RL32011WB-T-1.25Klb, making it an ideal drop-in upgrade or service replacement. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for use in hazardous and explosive environments.
If your application requires a stainless steel bolt-in weigh bar for platform scales, bench scales, or industrial weighing systems, the ANYLOAD 563WS-WBL offers a reliable, certified, and cost-effective solution. Contact ANYLOAD to discuss capacity requirements, hazardous area approvals, or custom configurations.
Features
- Rated capacities: 1.25Klb
- Stainless steel construction for enhanced durability
- Environmentally sealed to IP67 for harsh environments
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- FM/ ATEX/ IECEx certified optional
Specifications
| Rated Capacities | 1.25Klb |
|---|---|
| Full Scale Output | 2.0 mV/V ± 0.25% |
| Zero Balance | ± 0.02 mV/V |
| Non-linearity | < ±0.05% |
| Repeatability | < ±0.03% |
| Hysteresis Error | < ±0.05% |
| Creep in 30 min. | < ±0.03% |
| Input Resistance | 350Ω ± 7 |
| Output Resistance | 350Ω ± 3 |
| Element Material | 2Cr13 Stainless Steel |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Nominal Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
Interchangeable
| ANYLOAD | 3-481XX-1 |
|---|---|
| Avery Weigh-Tronix | Weigh Bar |
| Coti Global | CG-WBL-SS-1.25Klb |
| Rice Lake | RL32011WB-T-1.25Klb |
