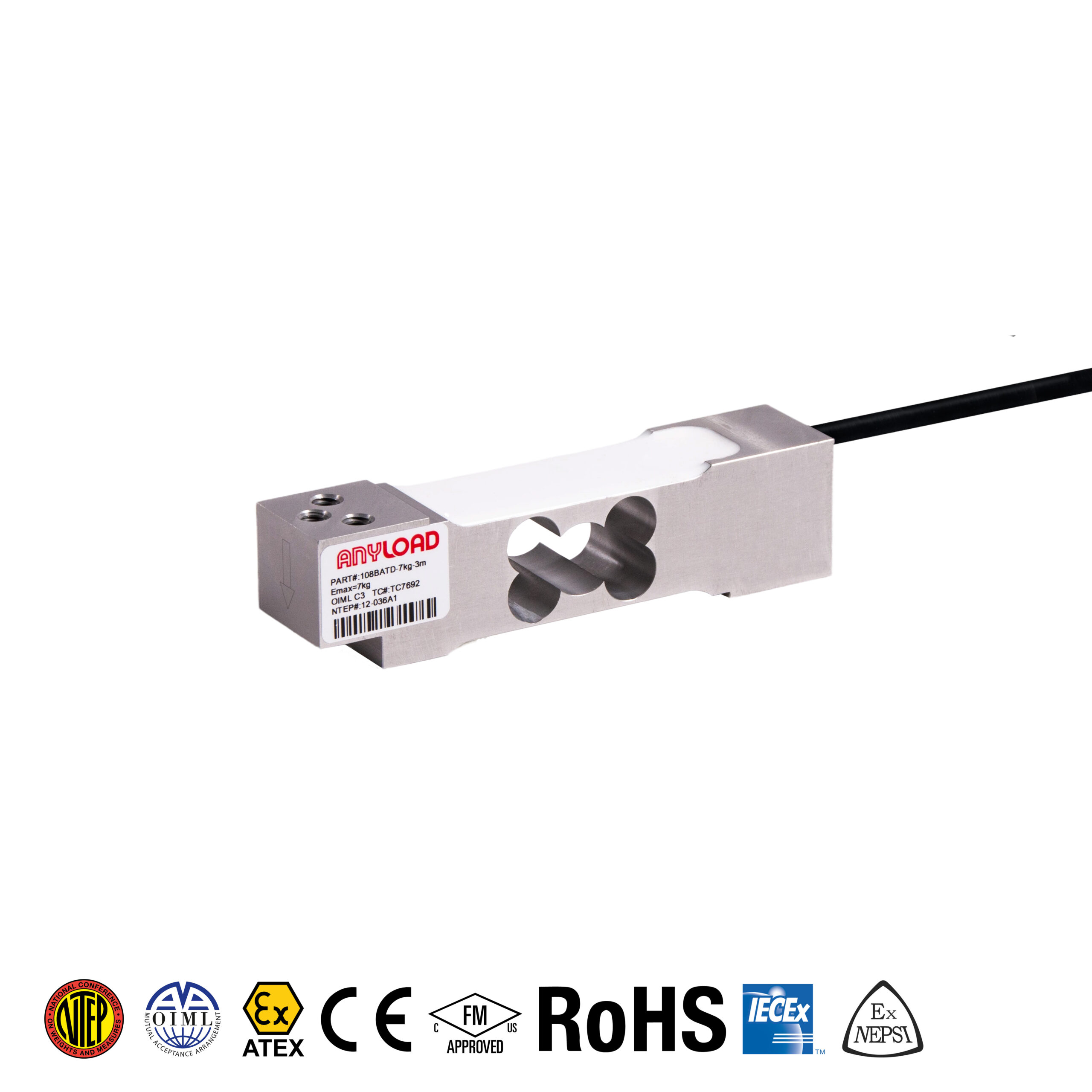

108BATD Single Point Load Cell
The ANYLOAD 108BATD is an aluminum, clear anodized single point load cell designed for platform and bench scale applications requiring accurate, repeatable weight measurement. Available in capacities from 3 kg to 100 kg, the 108BATD features a compact, low-profile design with an integrated overload stop and environmentally sealed IP66 rating, making it suitable for light industrial and commercial weighing environments.
Built to meet NTEP Class III (1:5,000) and OIML-CS certifications — C7.5 for 5–30 kg models and C6 for 50–100 kg models — the 108BATD delivers a full scale output of 2.0 mV/V with non-linearity, repeatability, and hysteresis all within ±0.017%. Its consistent performance across the capacity range makes it a reliable choice for OEM scale manufacturers, system integrators, and industrial weighing equipment producers seeking a certified, interchangeable single point load cell.
The 108BATD is a direct interchangeable replacement for the Vishay Tedea-Huntleigh Model 1030 and is available in ATEX, FM, and IECEx approved versions with the “-Ex” suffix for use in hazardous or explosive environments. Designed to support platform sizes up to 350×350 mm, the load cell accepts 10V excitation (15V maximum) and ships with a 1-meter cable. RoHS compliant and CE marked, the 108BATD is a versatile, certification-ready single point load cell suited for retail scales, portion scales, postal scales, and light industrial platform scales.
Features
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg
- Material: Aluminum, Clear Anodized
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- Up to NTEP 1:5 000 Class III, Single Cell
- 5kg-30kg: OIML-CS C7.5, Y=20 000;
50kg-100kg: OIML-CS C6, Y=29 000 - CE, RoHS, NTEP, and Ex certified
Specifications
| Rated Capacities | 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 100kg |
|---|---|
| Reference Max. Platform Size | 350mm x 350mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ±0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Interchangeable
| Vishay Tedea-Huntleigh | 1030 |
|---|
