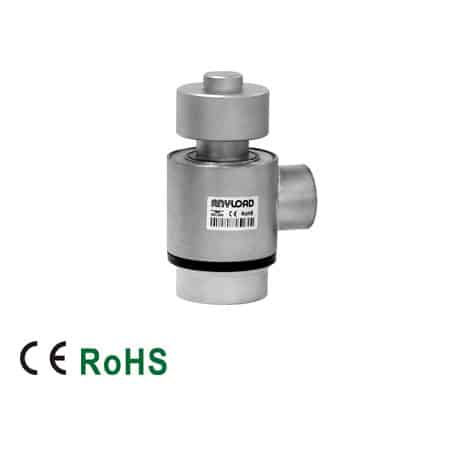

106AH Canister Load Cell
Description:ย
Suitable for high-capacity applications, the heavy-duty IP67-class water-resistant canister load cell provides a high accuracy compression weighing solution that performs under challenging conditions. The load cell is fully compensated from –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF.ย Common applications include truck scales, hopper/silo weighing, and other high-capacity compression weighing applications.
Features:
- Material: Alloy steel
- Rated Capacities: 5t, 10t, 20t, 30t, 50t
- Full Scale Output: 1.5mV/V ยฑ 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
| Rated Capacity | 5t, 10t, 20t, 30t, 50t |
| Full Scale Output | 1.5mV/V ยฑ 0.25% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.023% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 770ฮฉ ยฑ30ฮฉ |
| Output Resistance | 700ฮฉ ยฑ 5ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0017% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | –30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP67 |
| Manufacturer | Model |
| Sartorius | PR6221* |
| Vishay Tedea Huntleigh | 120** |
ย
* Sartorius PR6221 has a ย stainless steel element with an input resistance of 1080ฮฉ ยฑ 1ฮฉ and output resistance of 1010ฮฉ ยฑ 1ฮฉ.ย Sartorius PR6221 mounting kit dimensions are different.
** Vishay Tedea Huntleigh 120 has a stainless steel element with an input resistance of 670ฮฉ ยฑ 10ฮฉ and output resistance of 605ฮฉ ยฑ 5ฮฉ.ย The top mounting cap of the 50t capacity is different.
