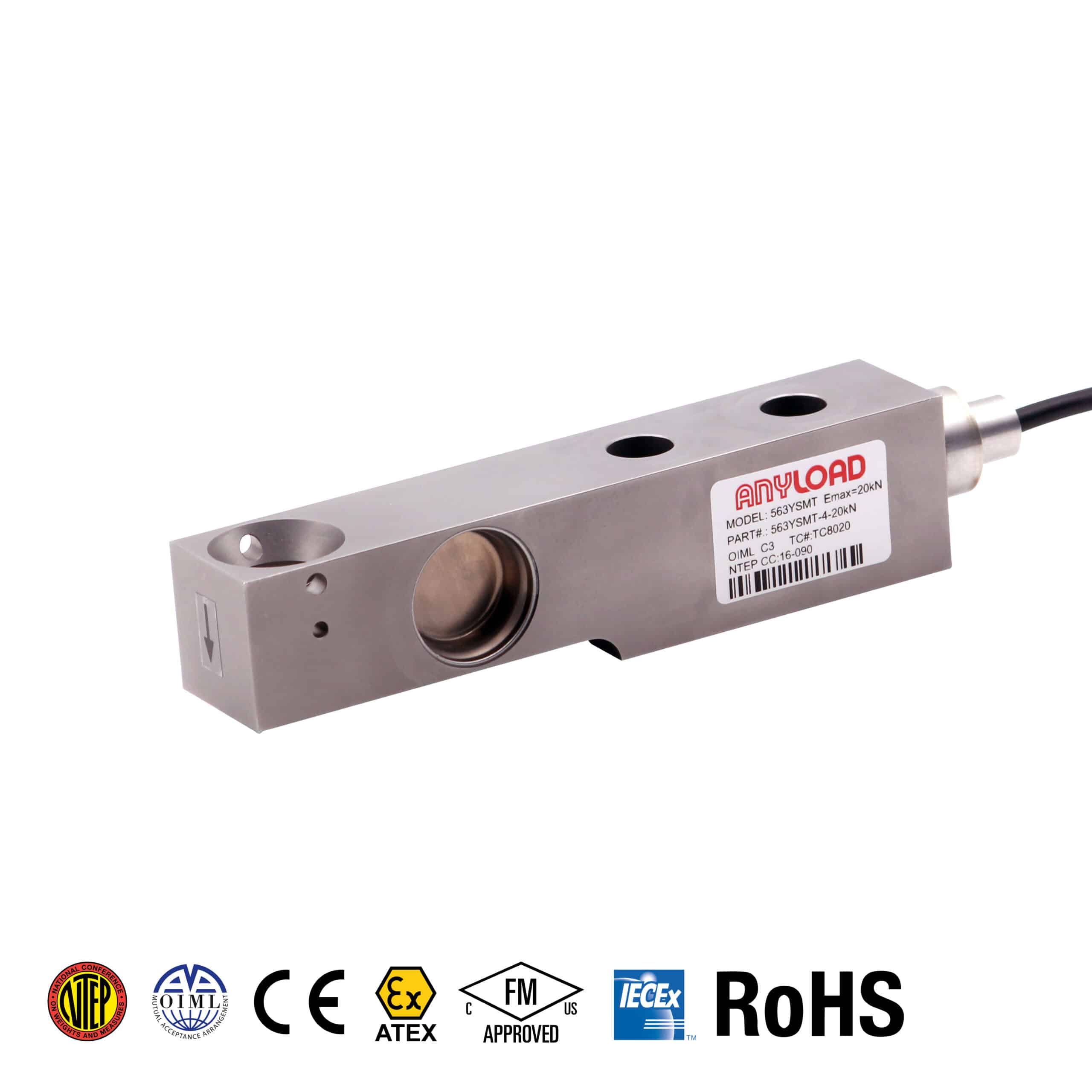

563YSMT-4 Single Ended Beam Load Cell

Description:

This cost-effective single-ended beam load cell’s compact, low-profile design makes it suitable for lower and medium-capacity applications, such as platform scales and hopper scales. Its IP68-class water-resistant stainless steel welded sealed construction ensures excellent performance under rugged conditions. The 563YSMT-4 is interchangeable with Flintec SB4 (see the INTERCHANGEABLE tab).

Features:ย

  • Material: Stainless steel
  • Rated Capacities: 5kN, 10kN, 20kN, 50kN, 100kN
  • Full-Scale Output: 2.0 mV/Vยฑ 0.1%
  • Safe Overload: 200%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • 5kN-10kN: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cell
    20kN-50kN: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell
  • 5kN-20kN: up to OIML MAA C5, Y=26 000;
    50kN-100kN: up to OIML MAA C6, Y=8 500
  • CE, RoHS and Ex(NEPSI) certified
  • ATEX, FM, IECEx available upon request
Rated Capacity 5kN, 10kN, 20kN, 50kN, 100kN
Full Scale Output 2.0mV/Vยฑ 0.1%
Zero Balance ยฑ 0.01mV/V
Non-linearity <ยฑ 0.017%
Repeatability <ยฑ 0.017%
Hysteresis Error <ยฑ 0.017%
Creep in 30 minutes <ยฑ 0.017%
Input Resistance 1100ฮฉ ยฑ 50
Output Resistance 1000ฮฉ ยฑ 5
Recommended Excitation 10V (15V Maximum)
Insulation Resistance >2 [50V DC] Gฮฉ
Compensated Temperature Range -10ยฐC to 40ยฐC/14ยฐF to 104ยฐF
Safe Overload 200% of full scale
Breaking Overload 300% of full scale
Seal Type Weld Seal
IP Rating IP68
Manufacturer Model
Flintec SB4
