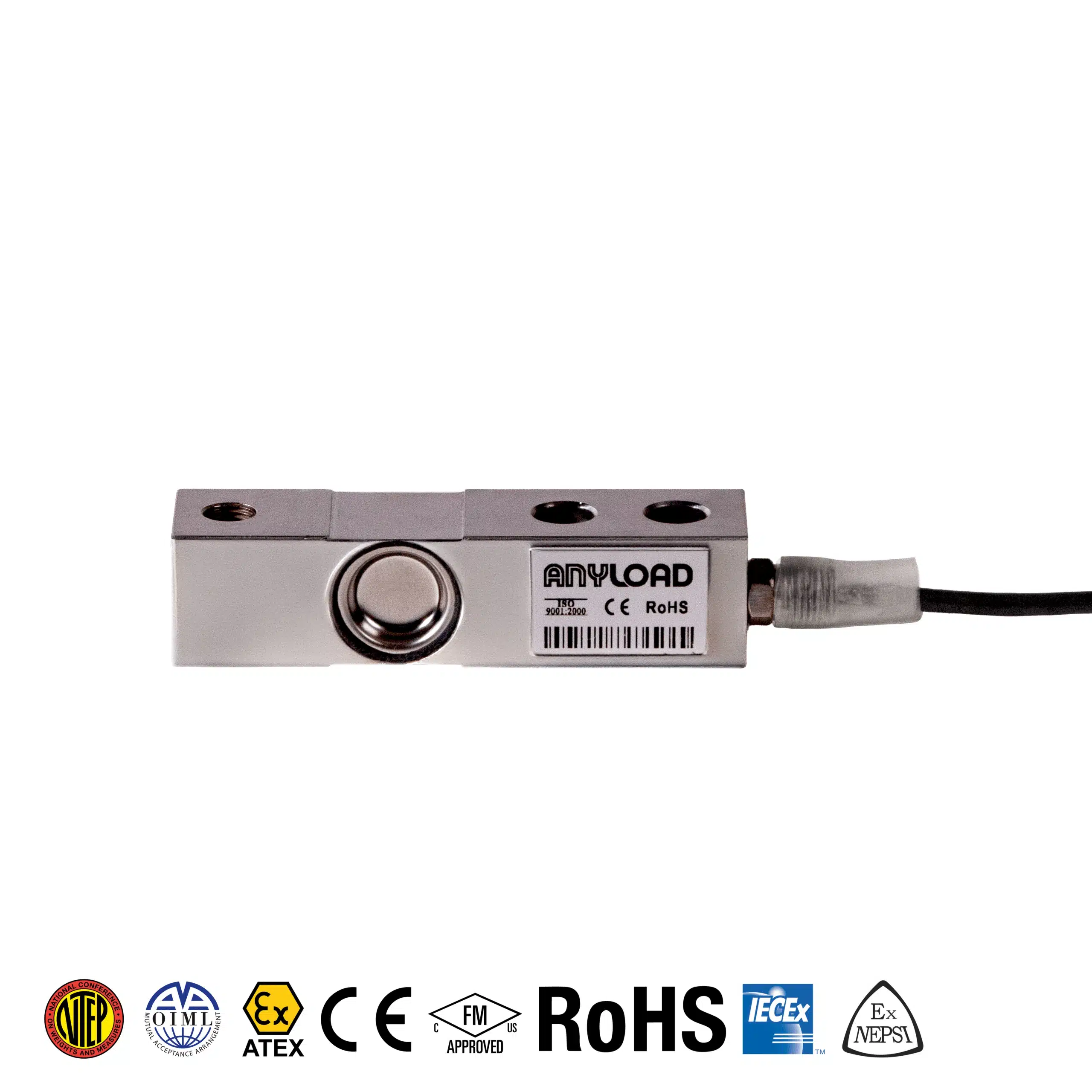

The 563YSGS series covers a wide capacity range, from 500kg to 20t, including a compact SE5Klb option for space-limited installations. Approvals include NTEP 1:5,000 Class III for multiple-cell applications and OIML MAA C4 and C6. Each cell ships with a 6 m shielded cable with a clearly defined color code, a compensated temperature range of -10°C to 50°C (14°F to 122°F), and is RoHS compliant.
Designed as a drop-in replacement, the 563YSGS is interchangeable with popular models including Rice Lake RL35023S and RL39123, Vishay Celtron SQB-SS, Vishay Revere Transducers 9123, and Vishay Sensortronics 65023S. This makes it a practical choice for platform scales, tank and hopper weighing, and general industrial weighing systems, whether for new builds or replacing existing load cells.
