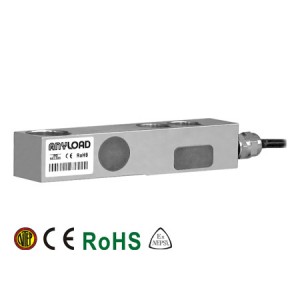

563YSGS Single Ended Beam Load Cell
Description:
The compact, low-profile design of this cost-effective single-ended beam load cell makes it suitable for lower and medium capacity applications, such as platform scales, hopper scales, etc. The IP67-class water-resistant stainless steel construction ensures excellent performance under rugged conditions.
Features:ย
- Material: Stainless steel
- Rated Capacities: 1Klb, 2.5Klb, 4Klb, 5Klb, 10Klb, 15Klb, 20Klb, 500kg, 1t, 2t, 3t, 5t, 10t, 20t
- Full Scale Output: 3mV/V ยฑ 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- 1Klb-10Klb: up to NTEP 1:5 000 Class III, Multiple Cell
- 500kg-2t: up to OIML MAA C4, Y=15 000;
3t-10t: up to OIML MAA C6, Y=8 500 - CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacity | 1Klb, 2.5Klb, 4Klb, SE5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 500kg, 1t, 2t, 3t, 5t, 10t, 20t |
| Full Scale Output | 3mV/V ยฑ 0.25% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 400ฮฉ ยฑ 20ฮฉ for kg; 350ฮฉ ยฑ 7ฮฉ for lb |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
| Manufacturer | Model |
| Rice Lake | RL35023S |
| Rice Lake | RL39123 |
| Vishay Revere Transducers | 9123 |
| Vishay Sensortronics | 65023S |
