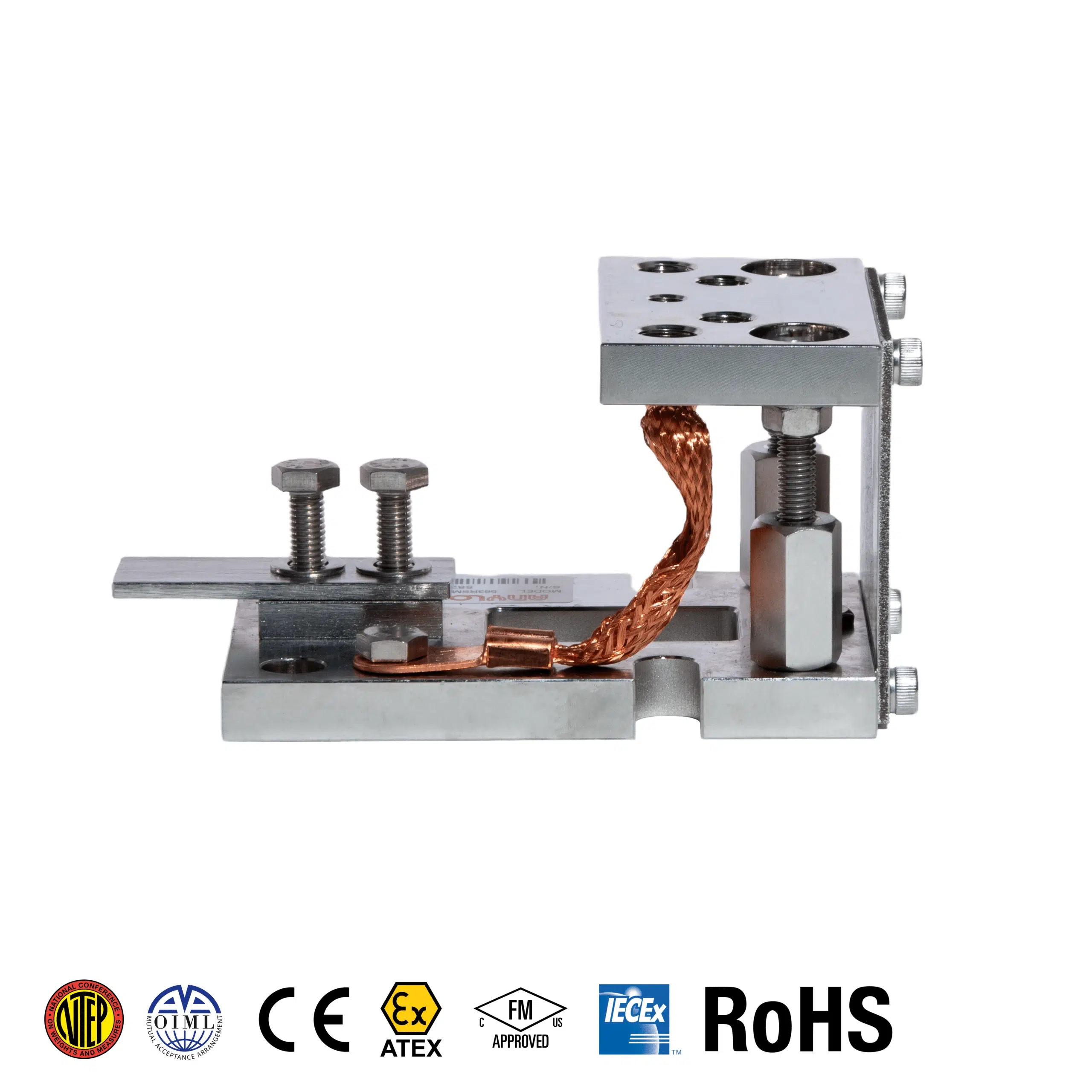

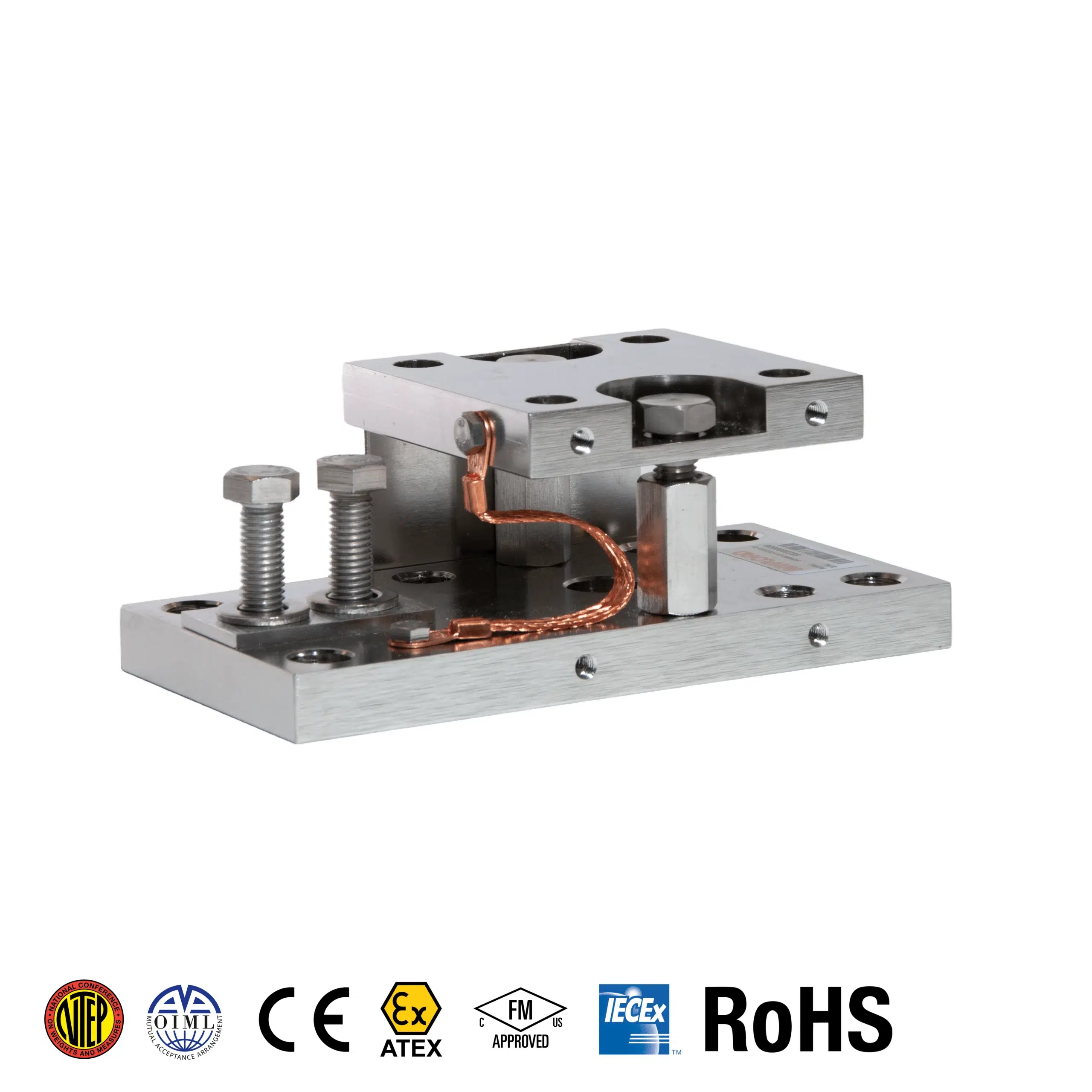

563YHM4-02 Compression Weigh Module

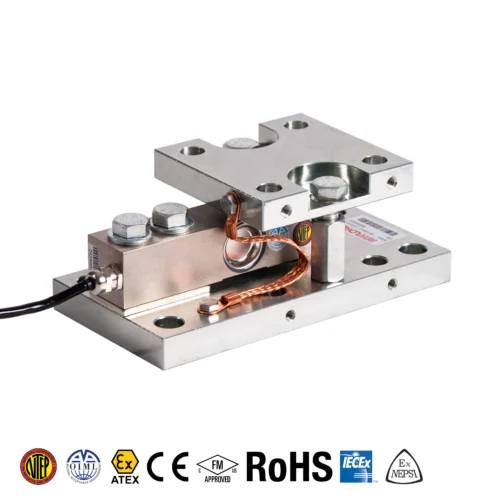

- Assembles: 563YH Alloy Steel Shear Beam Load Cell
- Capacities: 100lb-20Klb/100kg-10t
- Integral “Jacking” for easy load cell removal/installation
- Rocker pin design-allows for 360° thermal expansion
- Both uplift and overload protection with lateral stops
- Versatile mounting options for conventional tank/vessel leg
- Able to use existing 4-square tank leg mount holes in floor
- Free to rotate for fixed position 360° w/same 4-mount holes
- Able to flip entire mount 180° for further mount options
- Side holes each side for shipping & installation brackets
- Flexible copper braided grounding strap
- Load cell not included
Download 3D Drawing
563YHM4-(0.1-SE5)Klb-02
Download 3D Drawing
563YHM4-(5-10)Klb-02
Download 3D Drawing
563YHM4-(15-20)Klb-02
Download 3D Drawing
563YHM4-(100-2000kg)-02
Download 3D Drawing
563YHM4-(3-5)t-02
Download 3D Drawing
563YHM4-(10)t-02
Note: You may need a software that can open/view STEP files.
