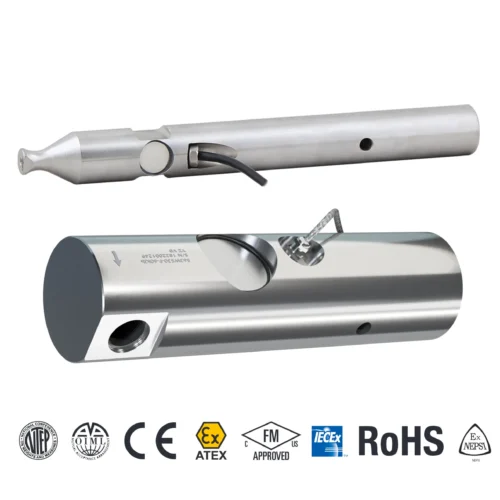

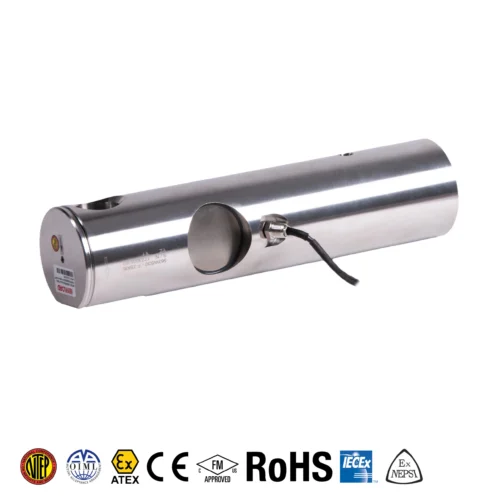

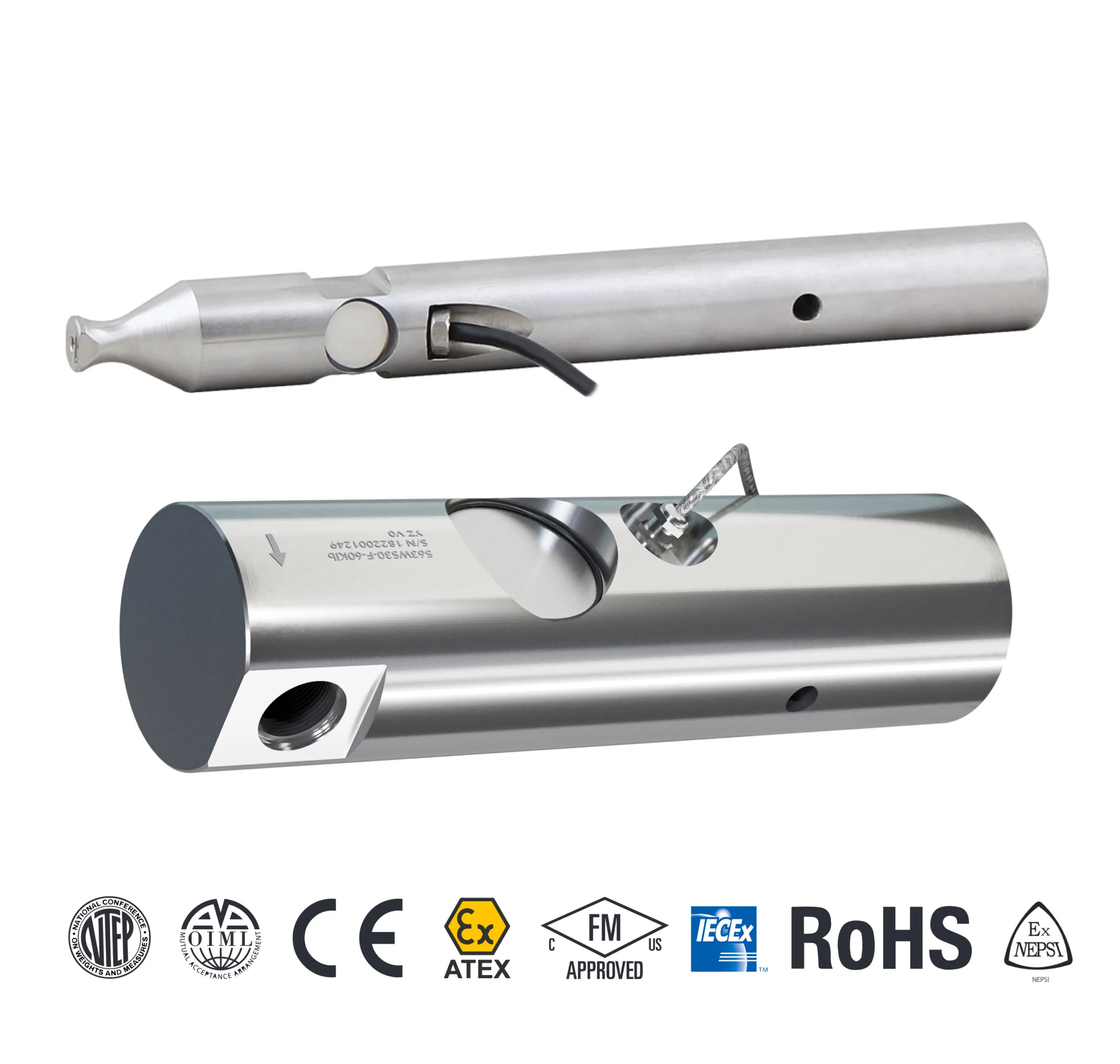

563WS, 563WS30 Single Ended Beam Load Cell
The 563WS is a premium stainless-steel, single-ended beam load cell engineered for versatile, high-reliability weighing across a wide range of capacities and industrial applications. Built tough for harsh environments, it combines strong overload protection, tight accuracy, and IP67 environmental sealing so you can count on steady performance even in demanding conditions.
- Material: Stainless steel
- Rated Capacities: 1.25Klb, 2.5Klb, 5Klb, 10Klb, 25Klb, 37.5Klb, 50Klb, 60Klb, 75Klb
- Full Scale Output: 2mV/V ± 1% (1.25Klb-25lb) or 3mV/V ± 1% (37.5Klb and 50Klb)
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP: 563WS30: 10Klb-75Klb: up to NTEP 1:10 000 Class III / III L, Multiple Cell
- OIML: 563WS30: 25Klb-75Klb: up to OIML MAA C6, Y=25 000
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
- Interchangeable with Coti Global (CG-WB-SS), Avery Weigh-Tronix, Weigh Bar ( 27173, 50104, 55829, AWT27-500080, Easi-Post etc), Rice Lake (RL75000 SS, RL32011WB-L)
Features
- Material: Stainless Steel
- Rated Capacities: 1.25Klb, 2.5Klb, 5Klb, 10Klb, 25Klb, 37.5Klb, 50Klb, 60Klb, 75Klb
- Full Scale Output: 2mV/V ± 1% (1.25Klb-25lb) or 3mV/V ± 1% (37.5Klb and 50Klb)
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS and Ex(NEPSI) certified
- Interchangeable with Coti Global (CG-WB-SS), Avery Weigh-Tronix, Weigh Bar ( 27173, 50104, 55829, AWT27-500080, Easi-Post etc), Rice Lake (RL75000 SS, RL32011WB-L)
Specifications
| Rated Capacities ≤ 25Klb ( 563WS ) | 1.25Klb, 2.5Klb, 5Klb, 10Klb, 25Klb |
|---|---|
| Rated Capacities ≥ 37.5Klb ( 563WS30 ) | 37.5Klb, 50Klb, 60Klb, 75Klb |
| Full Scale Output ≤ 25Klb ( 563WS ) | 2mV/V ± 1% |
| Full Scale Output ≥ 37.5Klb ( 563WS30 ) | 3mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity 563WS;563WS30(CG) | <± 0.023% |
| Non-linearity 563WS30-F | <± 0.02% |
| Repeatability 563WS;563WS30(CG) | <± 0.023% |
| Repeatability 563WS30-F | <± 0.02% |
| Hysteresis Error 563WS;563WS30(CG) | <± 0.023% |
| Hysteresis Error 563WS30-F | <± 0.03% |
| Creep in 30 minutes 563WS;563WS30(CG) | <± 0.030% |
| Creep in 30 minutes 563WS30-F | <± 0.03% |
| Input Resistance 563WS;563WS30(CG) | 350Ω ± 7Ω |
| Input Resistance 563WS30-F | 350Ω ± 25Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | 2Ω (50V DC) GΩ |
| Temperature Effect on Sensitivity | ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally Sealed |
| IP Rating | IP67 |
Interchangeable
| ANYLOAD | 563WS-1.25Klb-YZ | 563WS-2.5Klb-YZ | 563WS-5Klb-YZ | 563WS-10Klb-YZ | 563WS-25Klb-YZ | 563WS-25Klb-YZ-CG | 563WS30-37.5Klb-YZ-CG | 563WS30-37.5Klb-YZ | 563WS30-50Klb-YZ | 563WS30-E-50Klb-YZ-RP | 563WS30-H-50Klb-YZ-RP | 563WS30-F-60Klb-YZ | 563WS30-F-75Klb-YZ |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Avery Weigh-Tronix | Weigh Bar | Weigh Bar | Weigh Bar | Weigh Bar | Weigh Bar | – | – | Weigh Bar | Weigh Bar | 27173 | 50104 | 55829 | AWT27-500080 |
| Coti-Global | CG-WB-SS-1.25Klb | CG-WB-SS-2.5Klb | CG-WB-SS-5Klb | CG-WB-SS-10Klb | – | CG-WB-SS-25Klb | CG-WB-SS-37.5Klb | – | – | CG-WB-SS-50Klb-27173 | CG-WB-SS-50Klb-50104 | CG-WB-SS-60Klb-55829 | CG-WB-SS-75Klb-EZPOST |
| Rice Lake | RL75000 SS-1.25Klb | RL75000 SS-2.5Klb | RL75000 SS-5Klb | – | – | – | – | – | – | – | – | – | – |
| Rice Lake | RL32011WB-L-1.25Klb | RL32011WB-L-2.5Klb | RL32011WB-L-5Klb | RL32011WB-L-10Klb | – | – | – | – | – | – | – | – | – |
