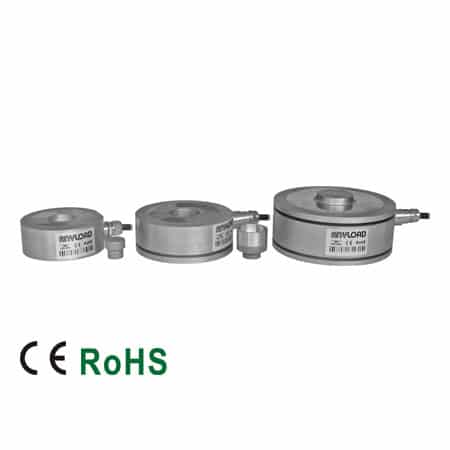

363RS Compression Load Cell, Stainless Steel, Welded Seal, IP68

363RS Compression Load Cell

  • Material: Stainless steel
  • Rated Capacities: 500kg, 1t, 2t
  • Full Scale Output: 2mV/V ± 0.1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68
  • CE and RoHS certified
  • Mounting hardware included
Clear
Product Enquiry
SKU: N/A Category:
Rated Capacity 500kg, 1t, 2t
Full Scale Output 2mV/V ± 0.1%
Zero Balance ± 0.05mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.023%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.030%
Input Resistance 1500Ω ± 50Ω
Output Resistance 1400Ω ± 10Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0023% of Cn/k
Temperature Effect on Zero Balance < ± 0.0120% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download data sheet

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Measurement Ukraine Certificate

Manufacturer Model
Metter-Toledo RLC
Vishay Revere Transducers RLC
