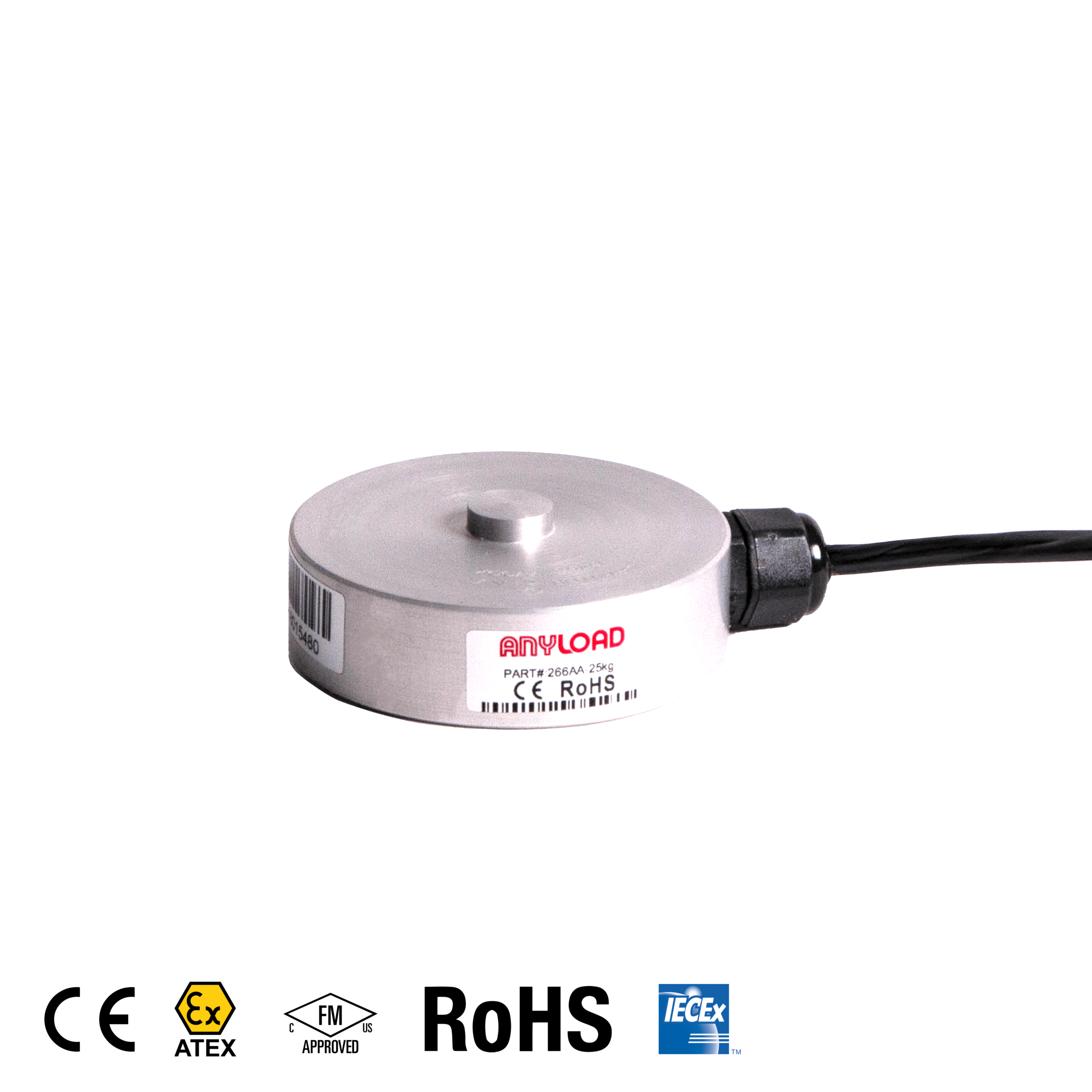

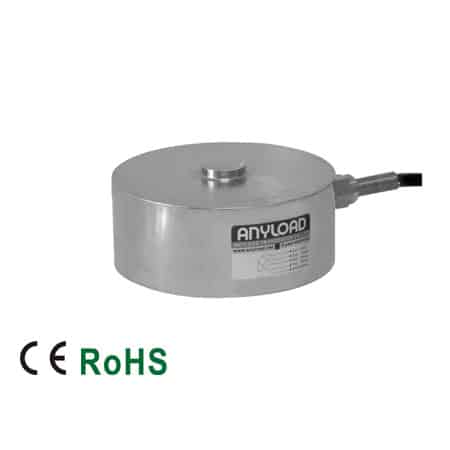

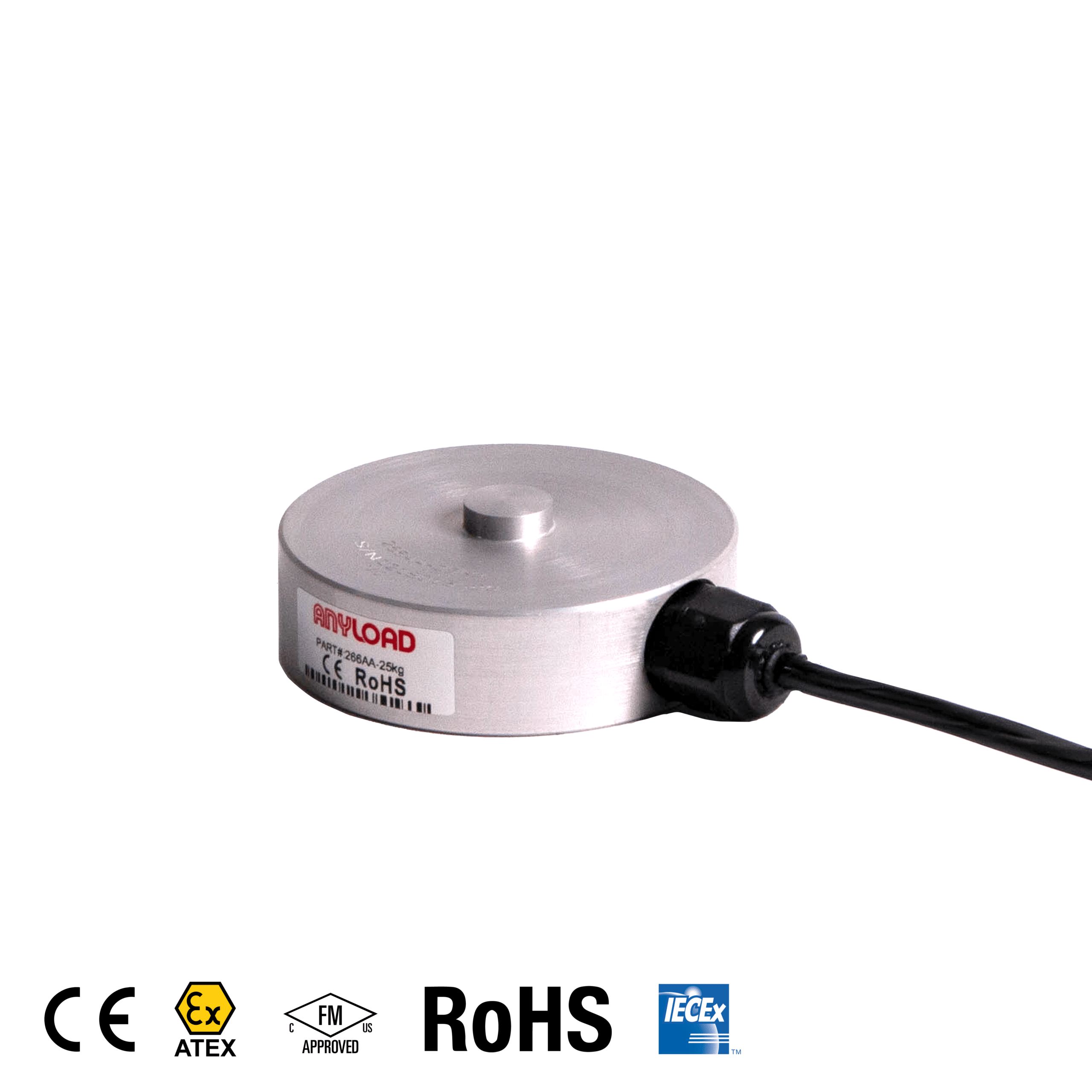

266AA Compression Load Cell
The ANYLOAD 266AA is a compact canister (disk) load cell built with a patent-protected design for reliable compression-type force measurement in light-duty applications. Constructed from clear-anodized aluminum, it covers rated capacities from 25 to 50 kg, making it well suited for small-scale platform, tank, and hopper weighing where a low-profile, robust sensor is required.
The 266AA delivers a 2.0 mV/V ± 1% full-scale output with non-linearity of ±0.2% and repeatability of ±0.03%, providing stable and repeatable readings for lighter-capacity industrial and commercial scale designs. It is environmentally sealed to IP66, giving it solid protection against dust and moisture in typical indoor or semi-protected installation environments. ATEX, FM, and IECEx hazardous-location certified versions are available with an “-Ex” suffix, along with standard CE and RoHS compliance.
Designed for compression loading, the 266AA is commonly used in small platform scales, bench scales, portable weighing systems, and other compact applications where a durable aluminum canister load cell is needed. Mounting hardware, including the F266-1 and F266-2 plates paired with a ZPS mounting kit, is available to simplify installation and is ordered separately from the load cell.
If your application requires a compact canister load cell for light-duty weighing, ANYLOAD can help with product selection and mounting configuration. Our team supports OEMs, scale builders, and system integrators in specifying the right capacity and mounting hardware for their installation. Contact us to discuss your application.
Features
- Rated Capacities: 25kg, 50kg
- Aluminum, clear anodized construction for enhanced durability
- Environmentally sealed rated to IP66 for harsh environments
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 25kg, 50kg |
|---|---|
| Full Scale Output | 2.0mV/V ± 1% |
| Zero Balance | < ± 0.04mV/V |
| Non-linearity | < ± 0.2% |
| Repeatability | < ± 0.03% |
| Hysteresis Error | < ± 0.1% |
| Creep in 30 minutes | < ± 0.1% |
| Input Resistance | 400Ω ± 20 |
| Output Resistance | 350Ω ± 3 |
| Element Material | Aluminum, Clear Anodized |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2 [50V DC] GΩ |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP66 |
