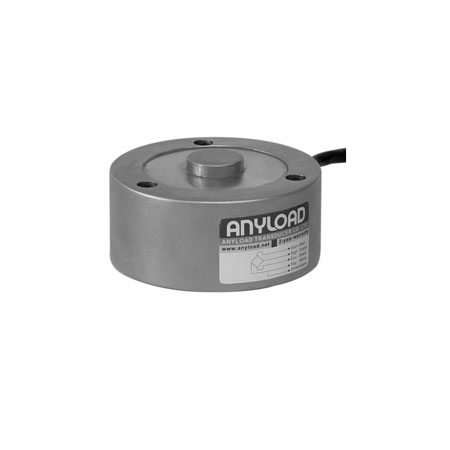

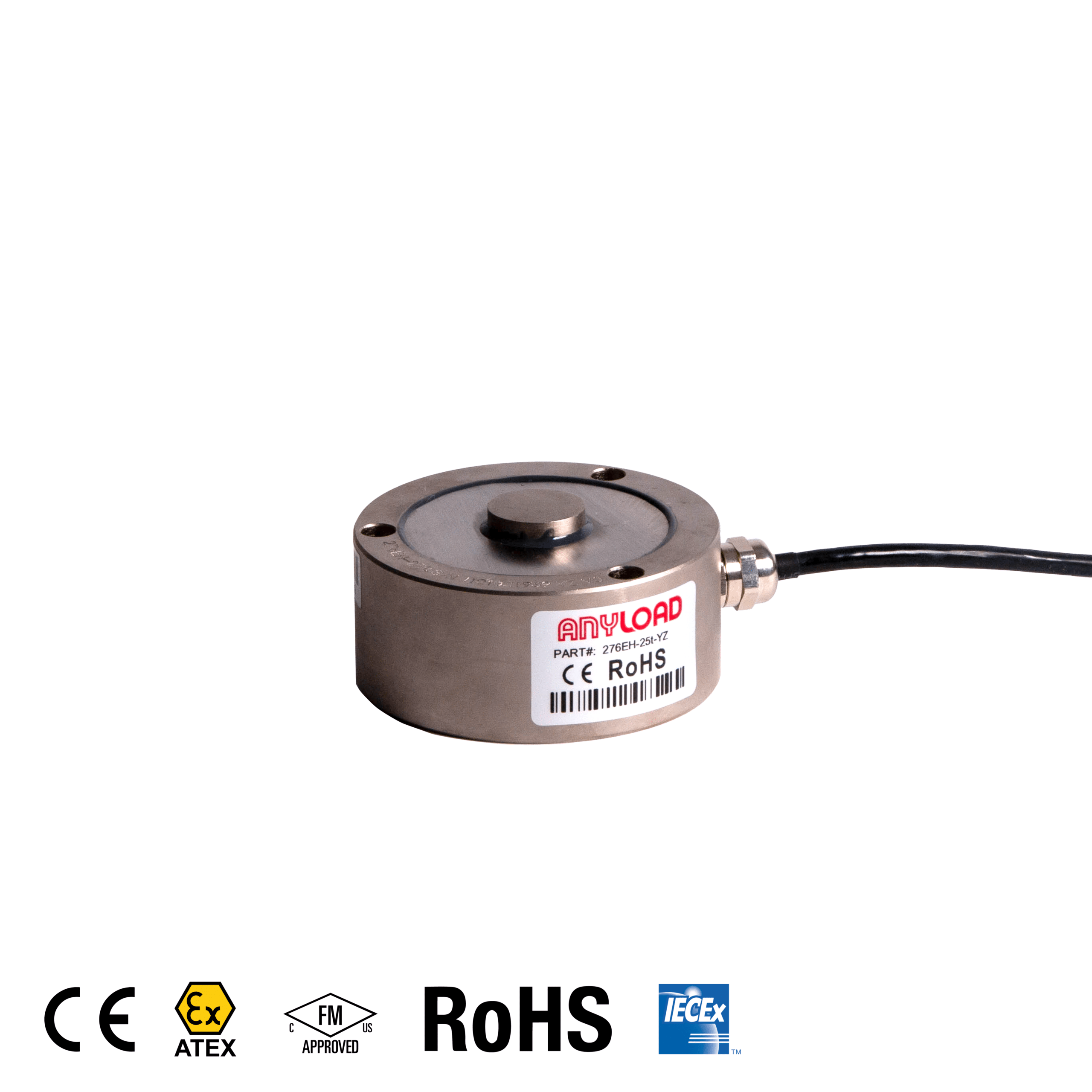

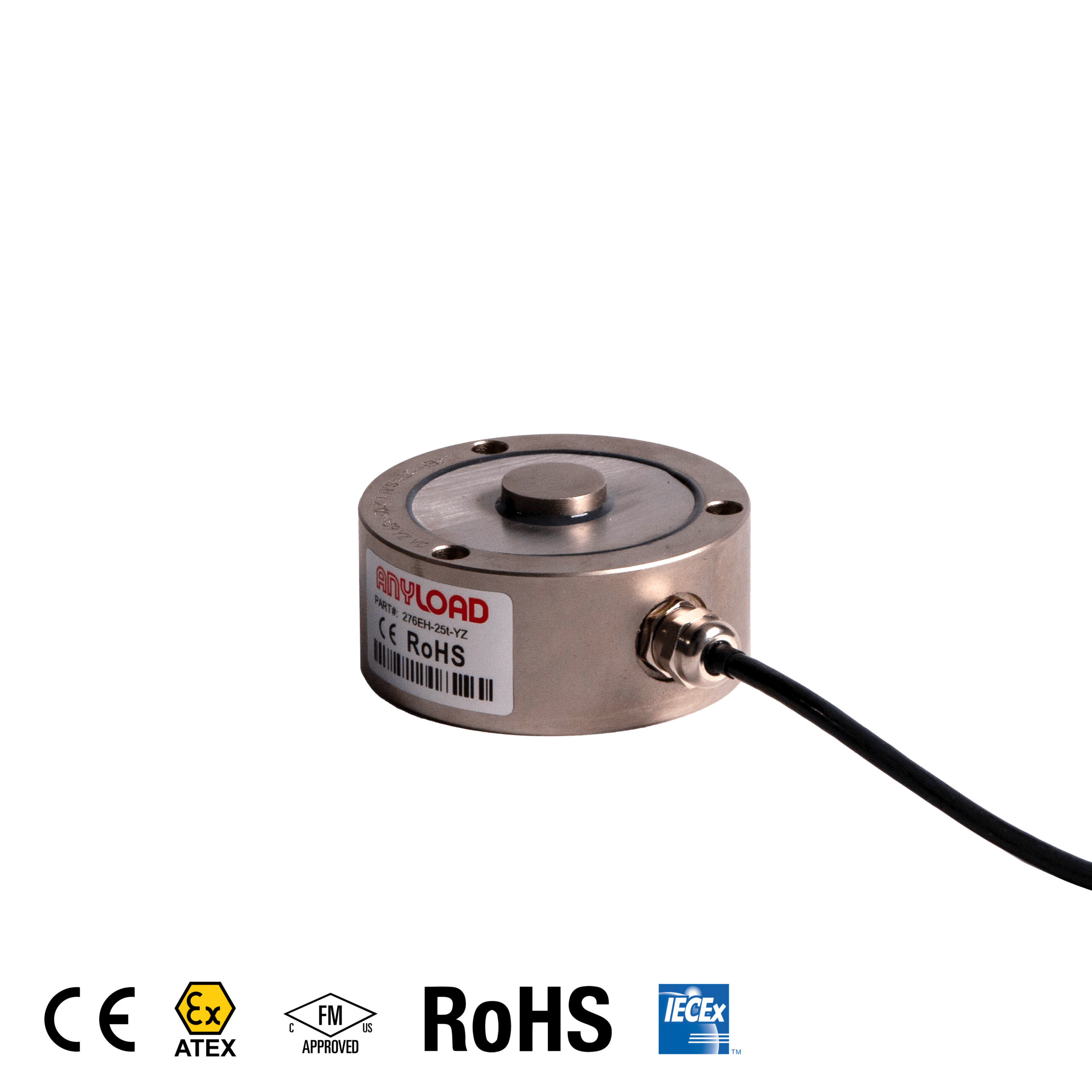

276EH Compression Load Cell
The ANYLOAD 276EH Canister Load Cell is a compression-type load cell built from alloy steel with a patented design, featuring the F266-1 mounting hardware configuration included with every unit. Available in rated capacities from 5t to 100t, the 276EH is engineered for heavy industrial weighing applications where a rugged, sealed canister-style load cell is required. With a full scale output of 2.5 mV/V ±10% and non-linearity as tight as ±0.32% at capacities up to 50t, the 276EH provides dependable, repeatable performance across demanding industrial environments.
Constructed with an environmentally sealed IP67 housing and a nickel-plated alloy steel element, the 276EH is designed to perform reliably in harsh conditions, supporting safe overload up to 150% of full scale and breaking overload up to 300% of full scale. It operates within a compensated temperature range of -10°C to 50°C (14°F to 122°F) and uses a recommended excitation of 10V (15V maximum), making it well suited for continuous industrial duty.
The 276EH is available with CE, ATEX, FM Approved, IECEx, and RoHS certifications, with hazardous-location versions carrying the “-Ex” suffix, allowing use in explosion-proof and classified environments. It pairs with the ANYLOAD 276EHM1 weigh module for complete system integration, and is commonly used in tank weighing, silo weighing, hopper scales, vessel weighing, and other heavy-capacity compression weighing systems across industrial processing facilities.
If your operation requires a custom canister load cell configuration or assistance with system integration, ANYLOAD can help with engineering consultation and customization. We work with industrial facilities, OEMs, and system integrators on capacity selection, certification requirements, and application-specific weighing solutions for tanks, silos, hoppers, and vessels.
Features
- Rated Capacities: 5t – 100t
- Alloy steel, nickel-plated construction for enhanced durability
- Environmentally sealed to IP67 for harsh environments
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
- Mounting hardware included
Specifications – 276EH (5t – 50t)
| Rated Capacities | 5t – 50t |
|---|---|
| Full Scale Output | 2.5mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.32% |
| Repeatability | < ± 0.050% |
| Hysteresis Error | < ± 0.32% |
| Creep in 30 minutes | < ± 0.10% |
| Input Resistance | 400Ω ± 20 |
| Output Resistance | 350Ω ± 3 |
| Element Material | Alloy Steel, Nickel Plated |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2 [50V DC] GΩ |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
Specifications – 276EH (100t)
| Rated Capacity | 100t |
|---|---|
| Full Scale Output | 2.5mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 1% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 2% |
| Creep in 30 minutes | < ± 0.1% |
| Input Resistance | 400Ω ± 20 |
| Output Resistance | 350Ω ± 3 |
| Element Material | Alloy Steel, Nickel Plated |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2 [50V DC] GΩ |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
