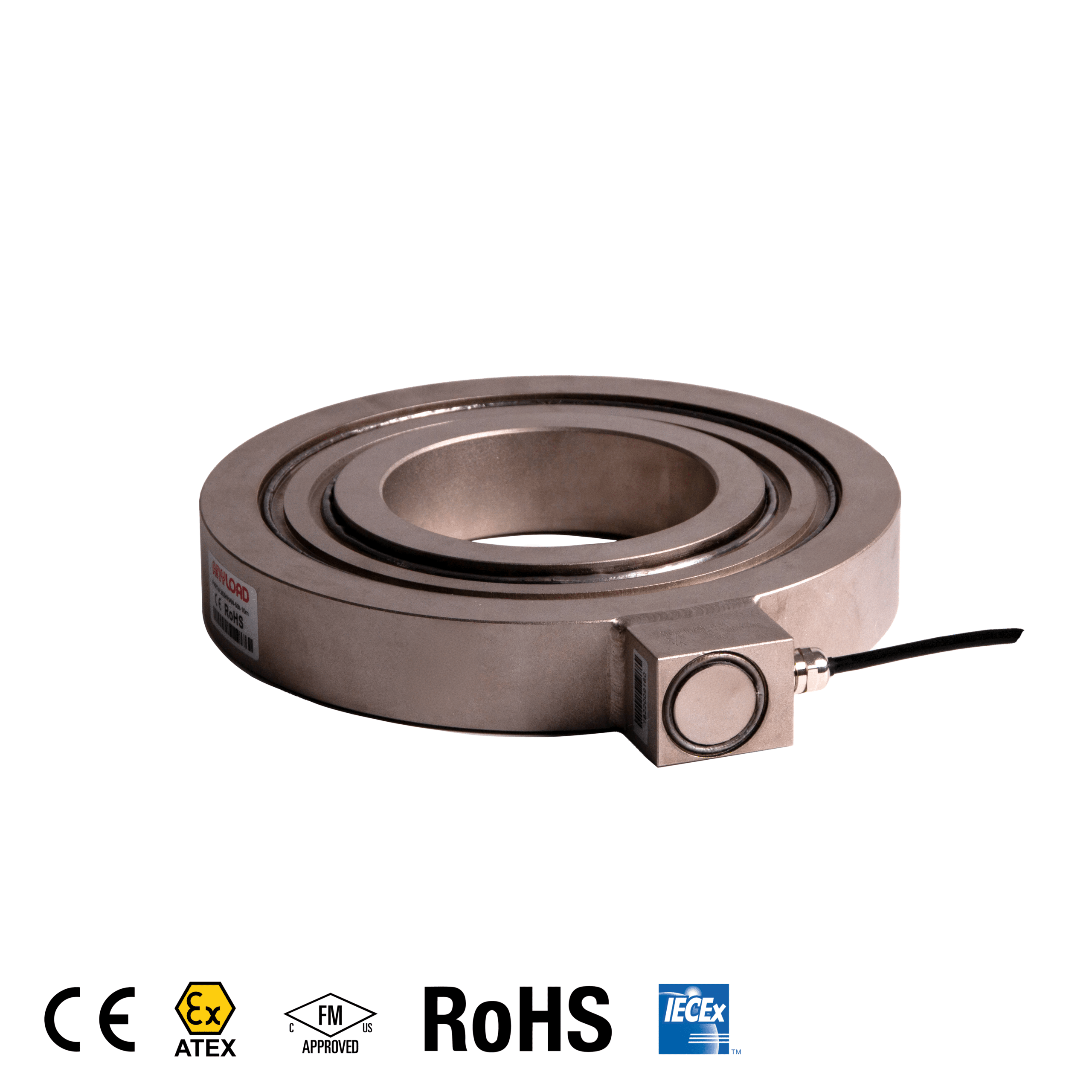

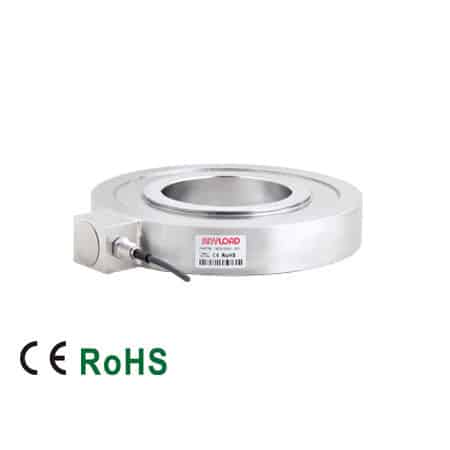

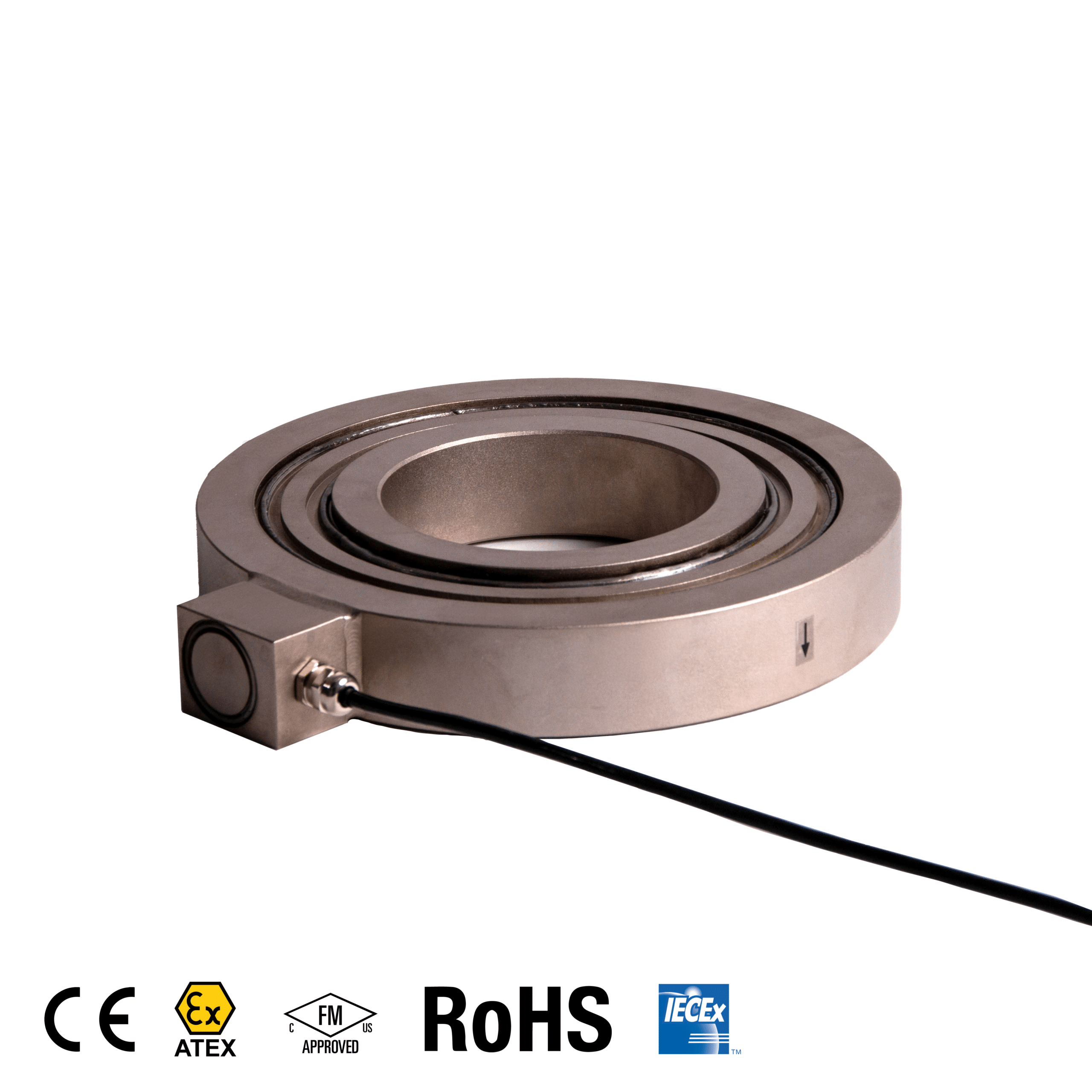

363HHAN Compression Load Cell

Description:

363HHAN Compression Load Cell is custom-designed for use in landslide mitigation for the civil engineering and construction sectors. The design allows the load cell to be integrated easily into bolt structures, especially in ground anchor/anchored retaining walls, soil nailing, helical tiebacks, and other related geotechnical applications. It provides reliable monitoring by constantly measuring compression forces exerted on a holding plate. The heavy-duty and cost-effective alloy steel construction is IP67 water-resistant, performing reliably even under challenging conditions.

Anyload is committed to equipping companies for growth in the force measurement industry, click here to see more force measurement products.

Features:

  • Material: Alloy steel
  • Rated Capacity: 60t
  • Full Scale Output: 2mV/V ยฑ 1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE and RoHS certified
  • ATEX, FM, IECEx available upon request
Rated Capacity 60t
Full Scale Output 2.0mV/V ยฑ 0.25%
Zero Balance ยฑ 0.02mV/V
Non-linearity < ยฑ0.8%
Repeatability < ยฑ0.03%
Hysteresis Error < ยฑ0.9%
Creep in 30 minutes < ยฑ0.1%
Input Resistance 770ฮฉ ยฑ 30ฮฉ
Output Resistance 700ฮฉ ยฑ 5ฮฉ
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2Gฮฉ (50V DC)
Compensated Temperature Range 10ยฐC to 50ยฐC/14ยฐF to 122ยฐF
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP67
