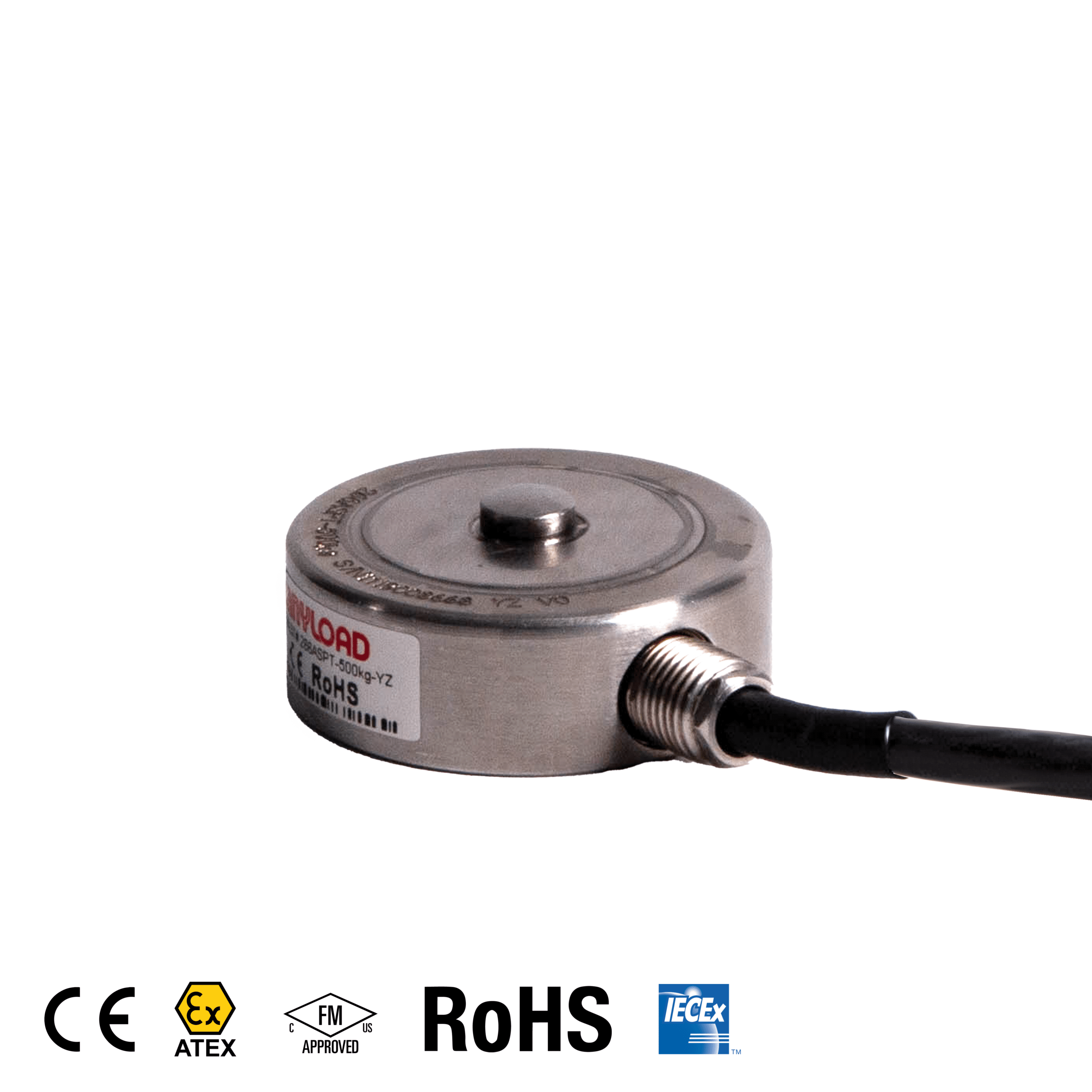

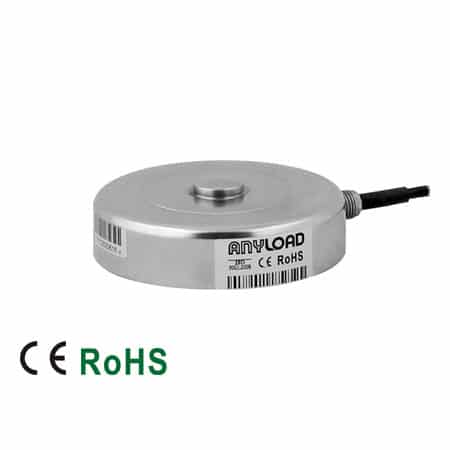

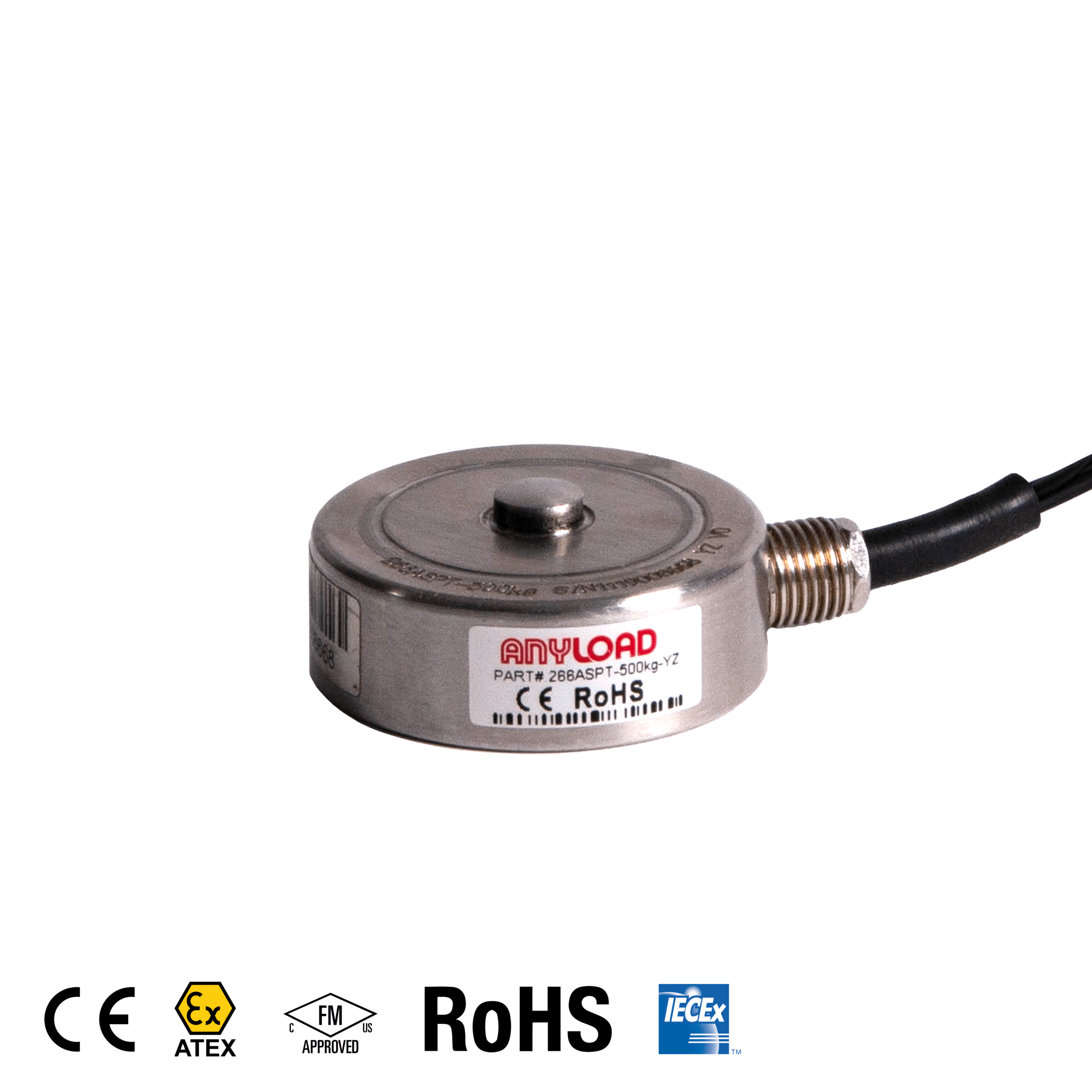

266ASPT Compression Load Cell
The ANYLOAD 266ASPT Compression Load Cell is a high-accuracy, stainless steel load cell designed for reliable performance in harsh industrial environments. With IP68 protection, welded sealing, and capacities from 100kg to 50t, it delivers stable and precise compression measurement for demanding applications.
Features
- Material: Stainless steel
- Rated Capacities: 100kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t, 25t, 50t
- Full Scale Output: 2.0mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
- Mounting hardware not included
Specifications
| Rated Capacities | 100kg, 250kg, 500kg, 1t, 2.5t, 5t, 10t, 25t, 50t |
|---|---|
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.04mV/V |
| Non-linearity | < ± 0.050% |
| Repeatability | < ± 0.030% |
| Hysteresis Error | < ± 0.070% |
| Creep in 30 minutes | < ± 0.050% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0046% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0160% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Interchangeable
| PT Global | LPX |
|---|
