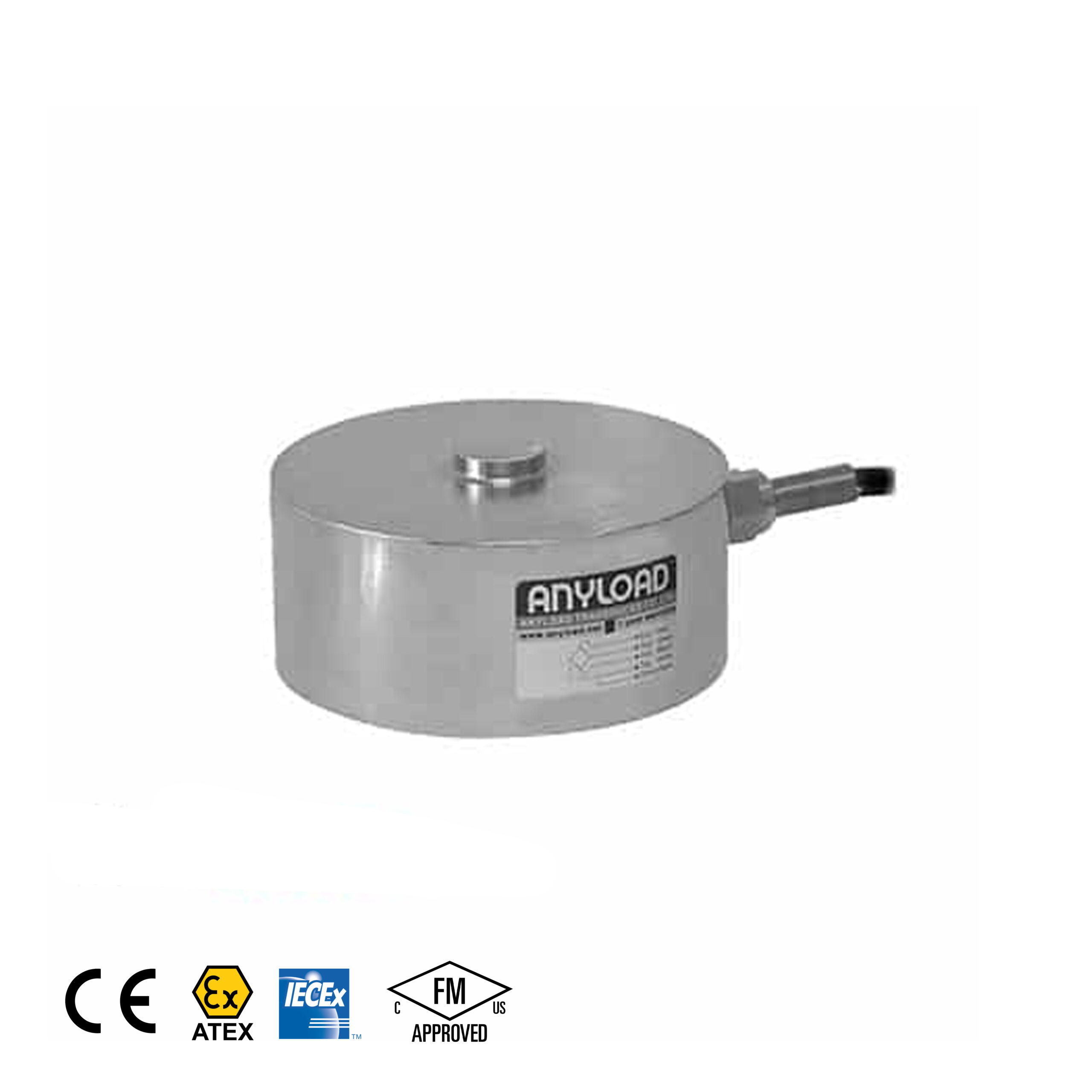

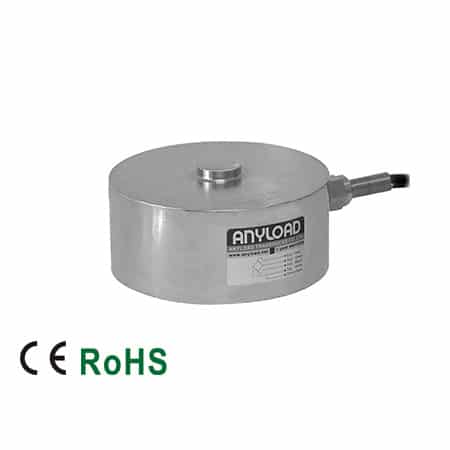

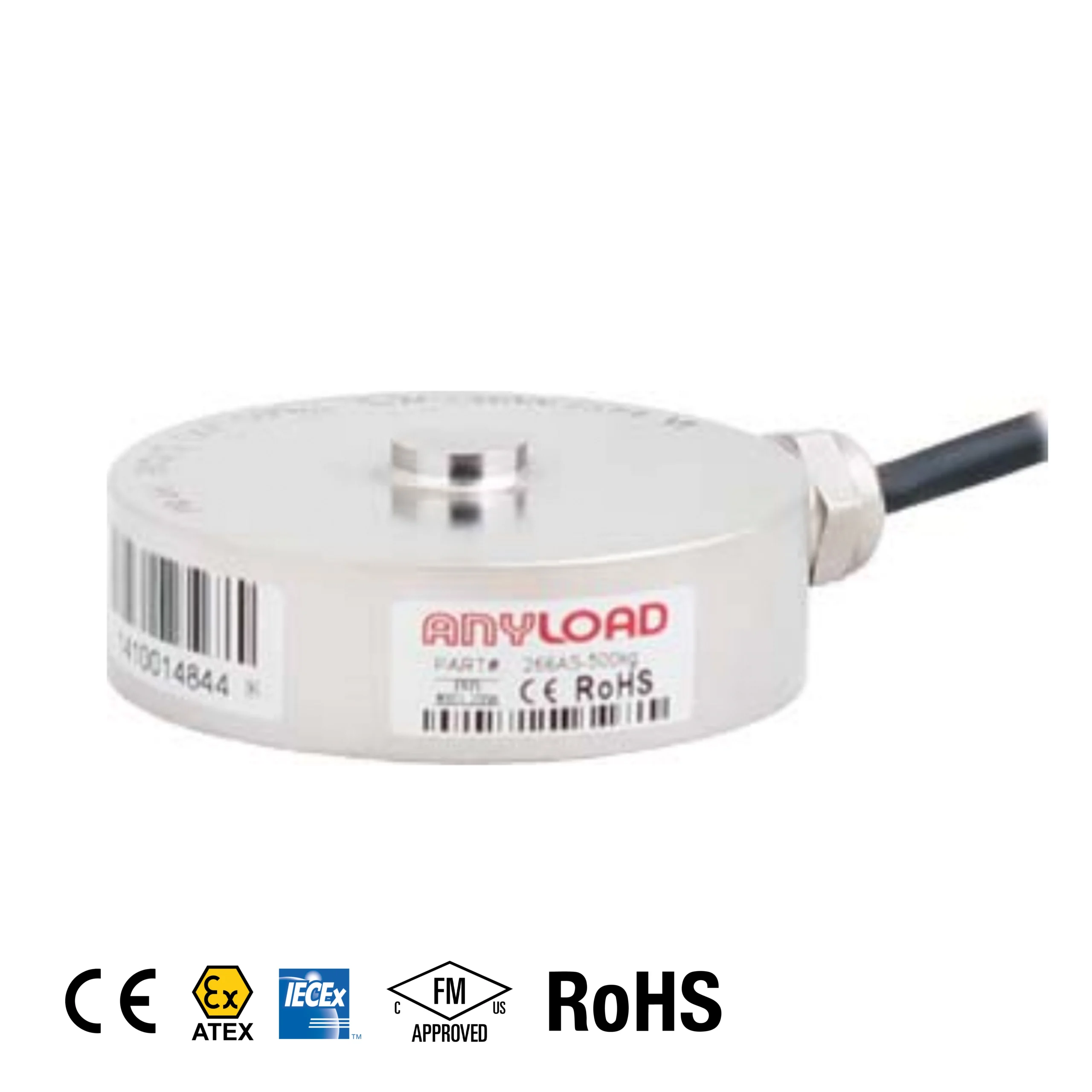

266AS Compression Load Cell
The ANYLOAD 266AS is a premium stainless steel canister-style compression load cell built for the most demanding industrial and harsh environment applications. Spanning a wide capacity range from 100kg to 30t, it features a welded IP68-rated seal — offering full submersion protection that makes it ideal for washdown, outdoor, and corrosive environments.
High capacity variants (5t–30t) deliver enhanced accuracy with non-linearity, hysteresis, and creep all under ±0.05%, while the stainless steel construction and welded seal ensure long-term reliability in food processing, chemical, marine, and other aggressive environments. ATEX, FM, and IECEx certifications are available upon request for hazardous area installations. Multiple mounting hardware configurations are available for flexible integration.
Features
- Material: Stainless Steel
- Rated Capacities: 100kg to 30t
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: Welded Sead/IP68
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 100kg, 200kg, 250kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t |
|---|---|
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.04mV/V |
| Non-linearity | Cap. 2t: <±0.2%; Cap.≥5t: <±0.05% |
| Repeatability | Cap. 2t: <±0.03%; Cap.≥5t: <±0.03% |
| Hysteresis Error | Cap. 2t: <±0.1%; Cap.≥5t: <±0.05% |
| Creep in 30 minutes | Cap. 2t: <±0.1%; Cap.≥5t: <±0.05% |
| Input Resistance | Cap. 2t: 400Ω±20; Cap.≥5t: 770Ω±30 |
| Output Resistance | Cap. 2t: 350Ω±3; Cap.≥5t: 700Ω±5 |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
