266AH Compression Load Cell

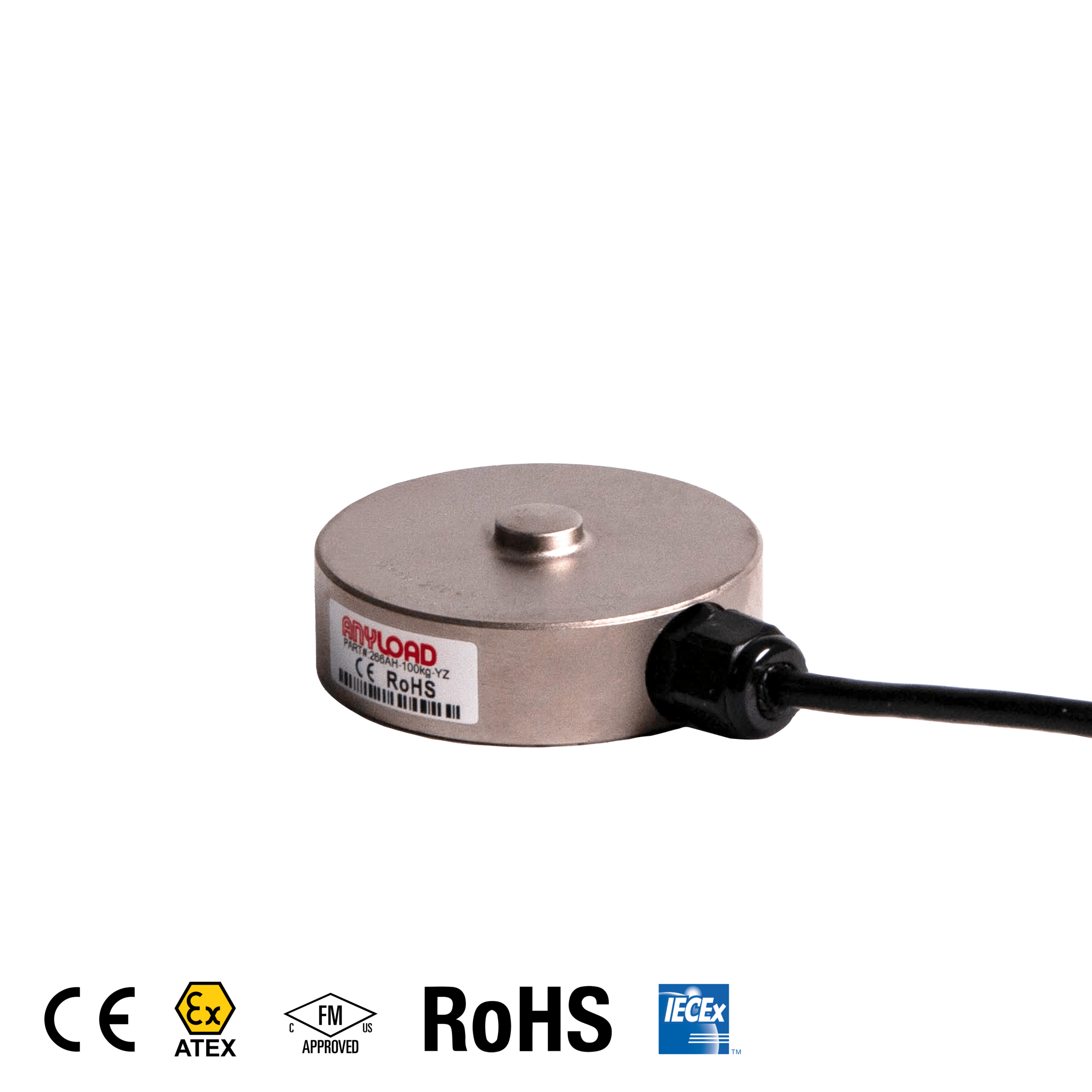

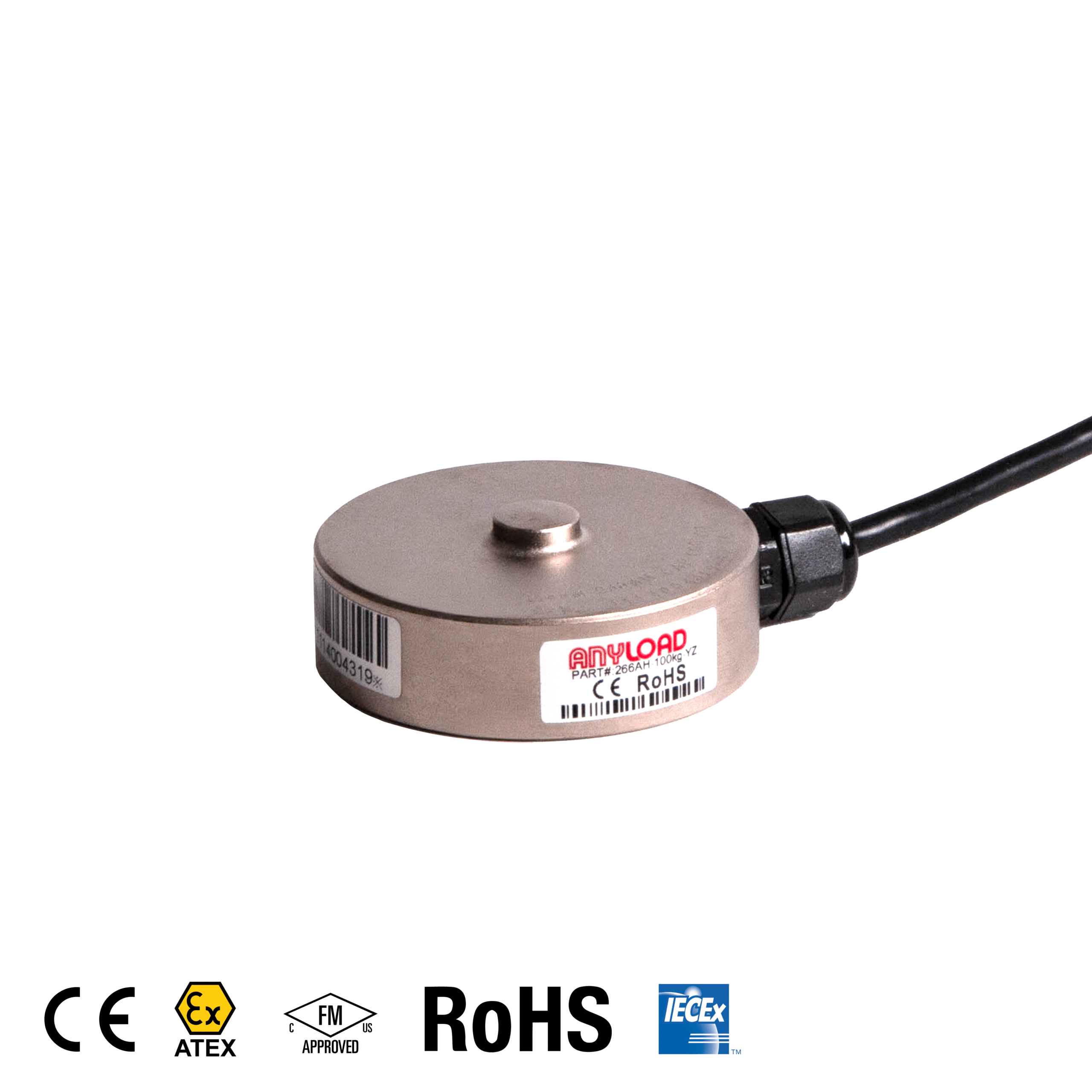

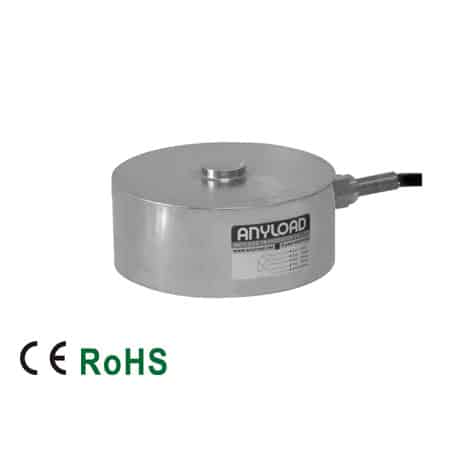

The ANYLOAD 266AH is a heavy-duty alloy steel canister-style compression load cell engineered for demanding industrial weighing and force measurement applications. With an exceptionally wide capacity range spanning from 100kg all the way up to 30t, the 266AH is built to handle everything from mid-range process weighing to large-scale industrial and structural load measurement.
Featuring a welded IP67-rated seal for superior protection against dust and water ingress, and a wide service temperature range of –30°C to 70°C, the 266AH performs reliably in harsh environments. Higher capacity variants (5t–30t) deliver tighter accuracy with non-linearity and hysteresis under ±0.05%. ATEX, FM, and IECEx certifications are available upon request for hazardous area installations. Multiple mounting hardware configurations are available to simplify integration.
Features
- Material: Alloy steel
- Rated Capacities: 100kg, 200kg, 300kg, 500kg, 1t, 2t, 5t, 10t, 20t, 30t
- Full Scale Output: 2mV/V ± 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE and RoHS certified
- ATEX, FM, IECEx available upon request
Specifications – 266AH (100kg-2t)
| Rated Capacities | 100kg, 200kg, 300kg, 500kg, 1t, 2t |
|---|---|
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.2% |
| Repeatability | < ± 0.03% |
| Hysteresis Error | < ± 0.1% |
| Creep in 30 minutes | < ± 0.1% |
| Input Resistance | 400Ω ± 20Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Specifications – 266AH (5t-30t)
| Rated Capacities | 5t, 10t, 20t, 30t |
|---|---|
| Full Scale Output | 2mV/V ± 1% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.05% |
| Repeatability | < ± 0.03% |
| Hysteresis Error | < ± 0.05% |
| Creep in 30 minutes | < ± 0.05% |
| Input Resistance | 770Ω ± 30Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0023% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0120% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | -30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
