202UA Planar Load Cell

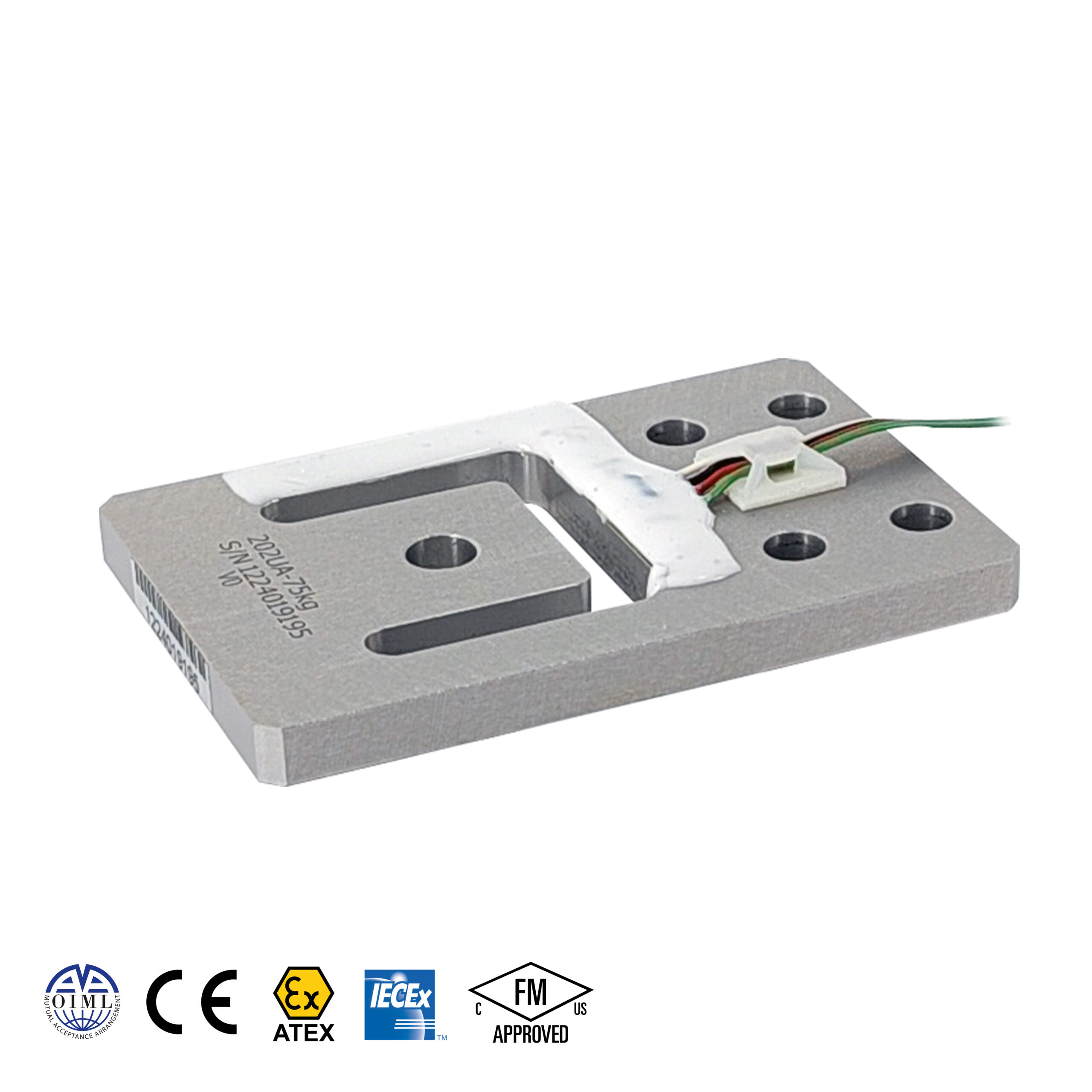

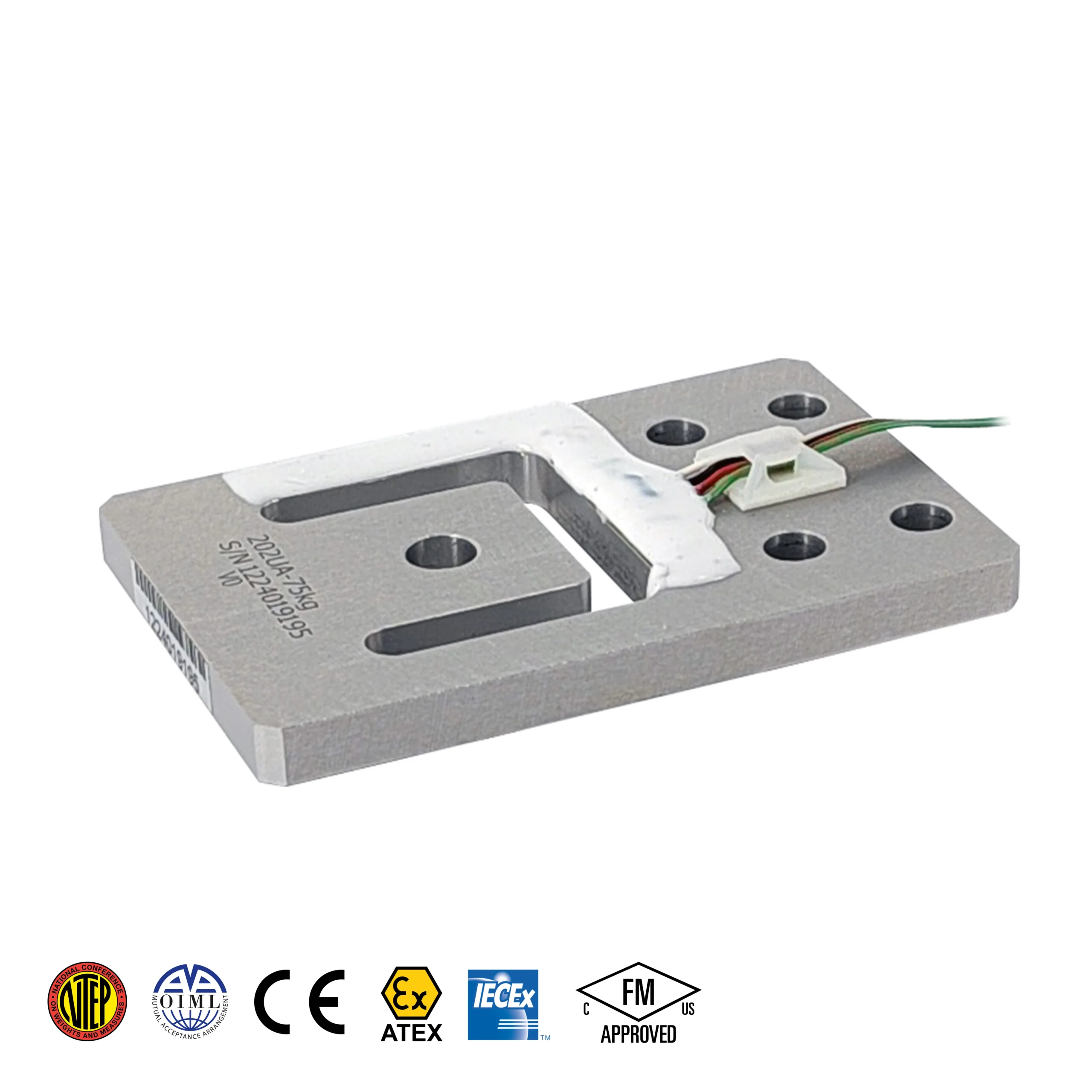

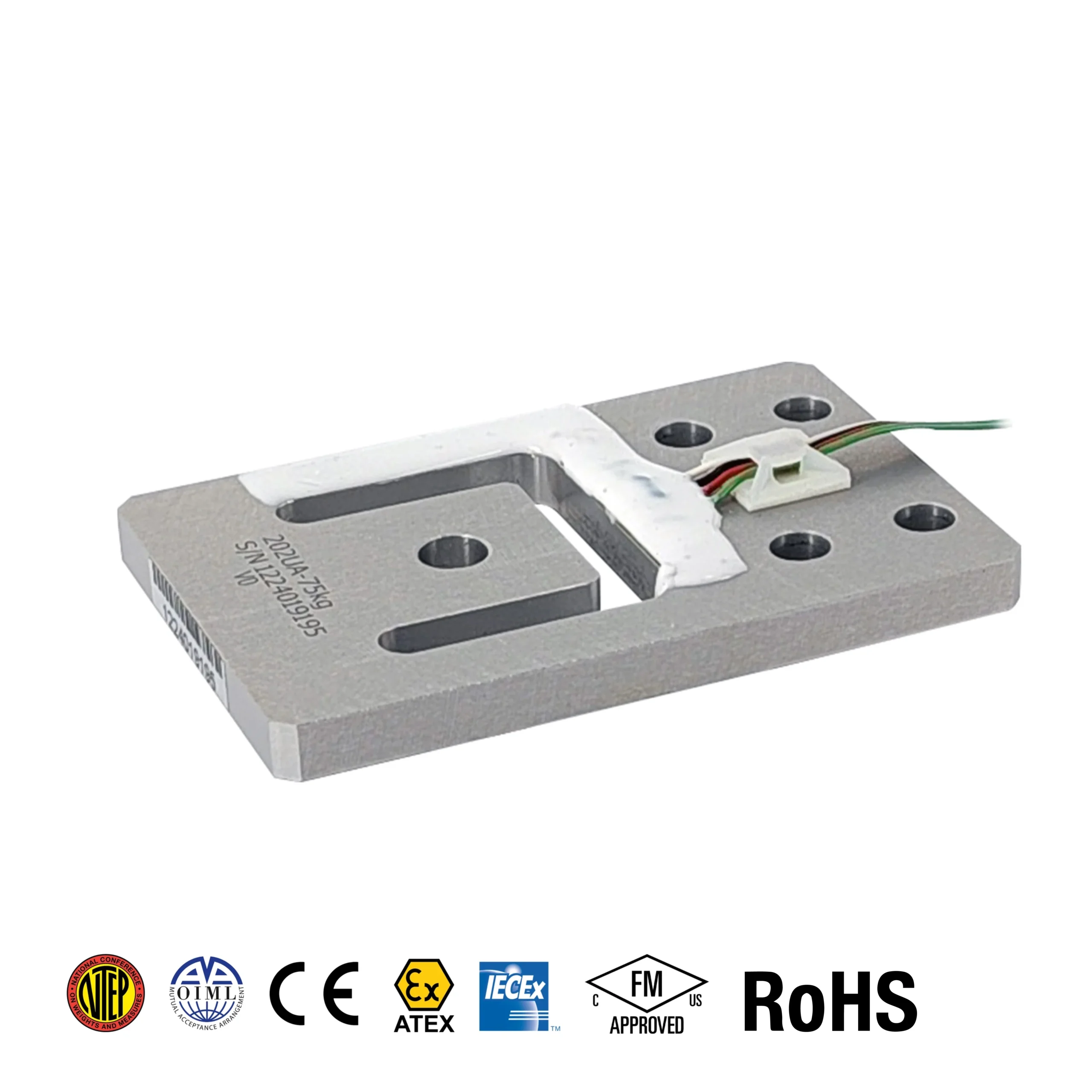

The ANYLOAD 202UA is a low-profile aluminum planar beam load cell engineered for platform and retail scale applications where minimal installation height is a critical design requirement. With a profile that enables scale assemblies of approximately 25mm in height, the 202UA fits a wide range of compact rectangular scale platforms in various shapes and sizes. Available in capacities from 3.75 kg to 375 kg, the load cell covers a broad spectrum of light-to-medium weighing applications across retail, industrial, and commercial environments.
A key design advantage of the 202UA is its current-calibrated output, rated at 0.9mV/V ± 0.1%. This pre-derated output eliminates the need for a junction box with trim pot, allowing direct corner replacement without recalibration — significantly simplifying maintenance and field servicing for multi-cell scale installations. For example, a 60kg capacity scale can be built using four 202UA-15 kg cells, allowing full weight capacity to roll up to the scale edge without risk of overload.

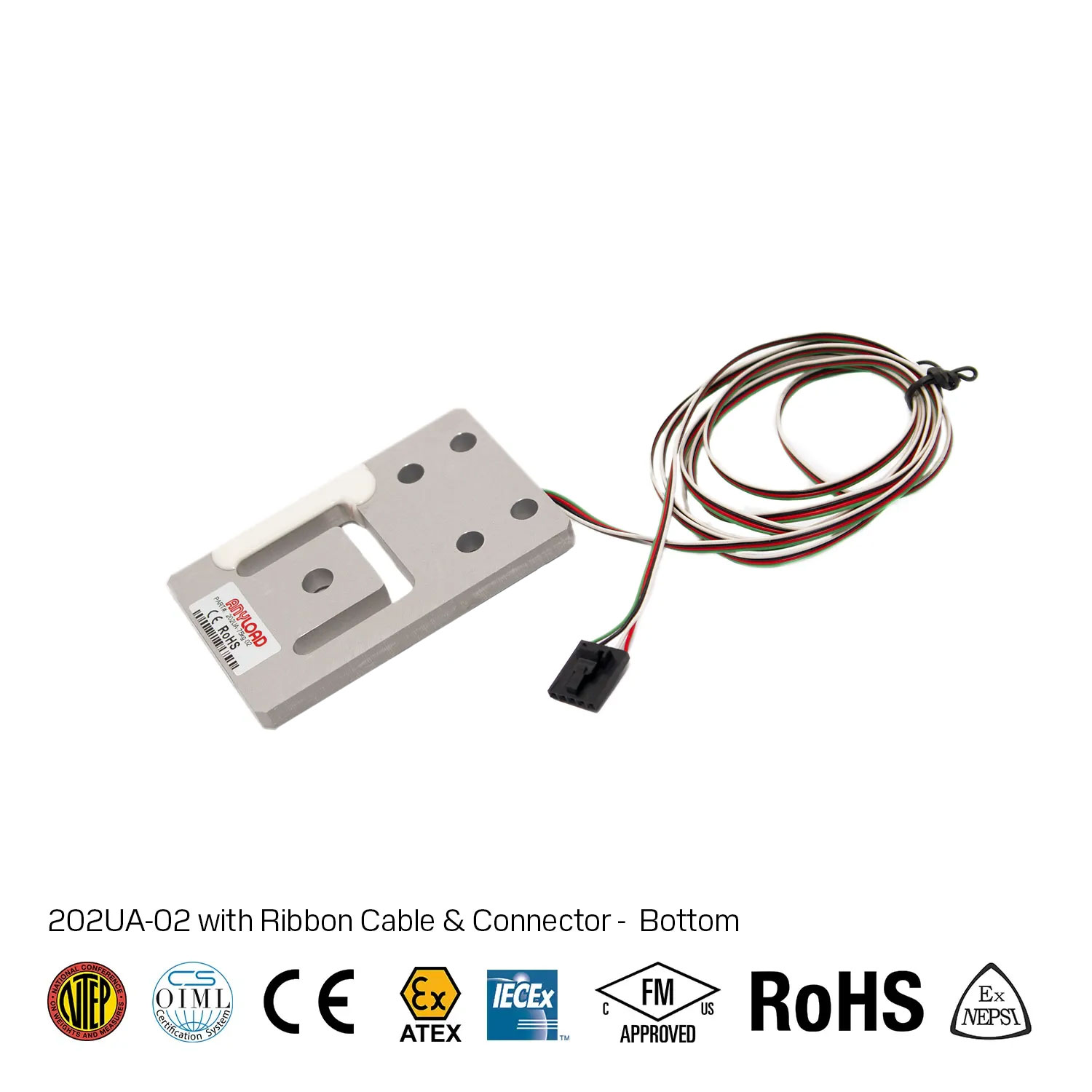

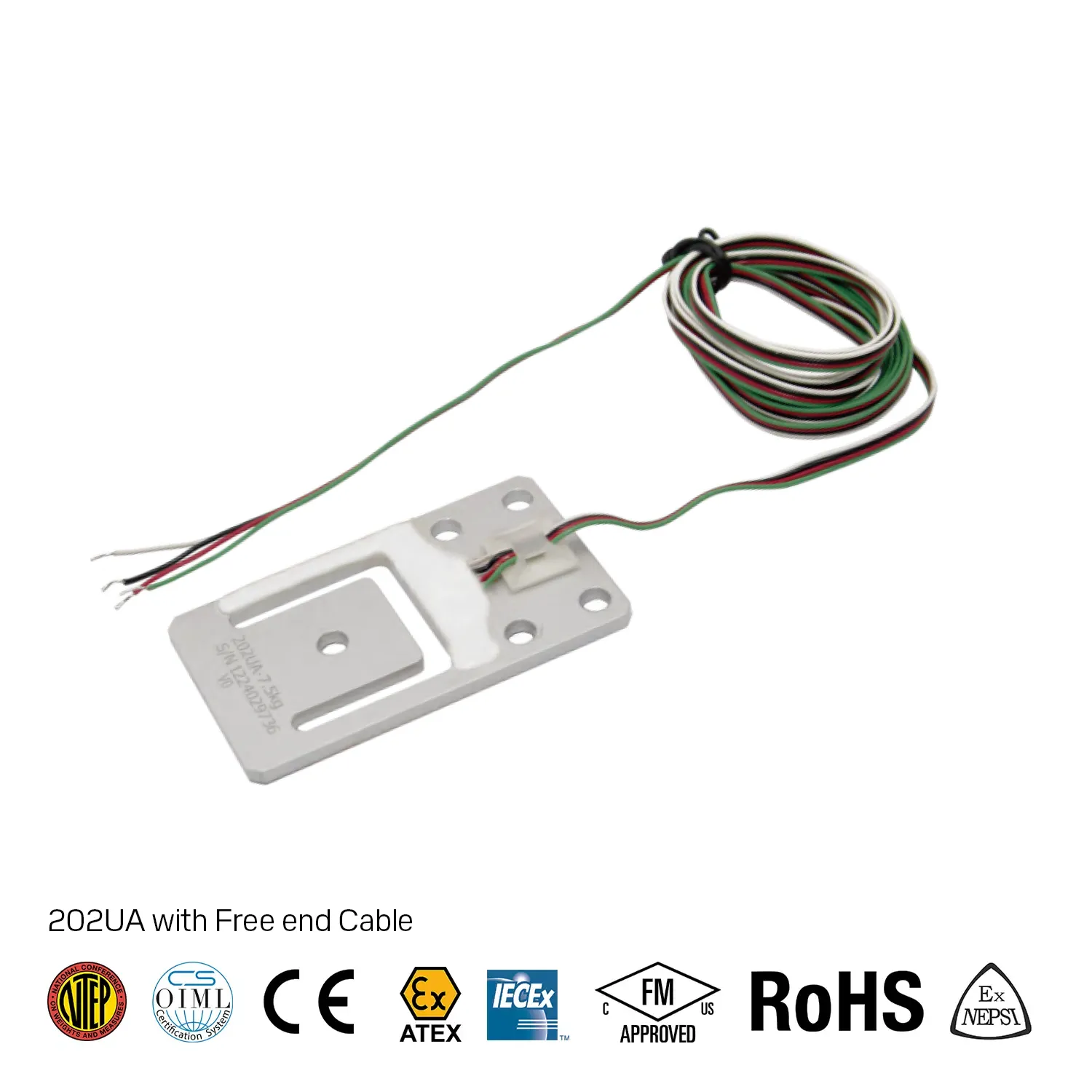

The 202UA is available in standard cable configurations (202UA) and connector-style variants (202UA-02), both using 4-conductor wiring. The 202UA-25A variant offers an extended C3 installation space dimension for applications requiring additional mechanical clearance. All variants are constructed from aluminum and are RoHS compliant, with certifications including CE, FM, ATEX, and IECEx, making the 202UA suitable for use in both standard commercial and hazardous-area weighing installations.
For OEM scale manufacturers, system integrators, and scale service technicians seeking a reliable, interchangeable planar beam load cell with a simplified calibration process, the ANYLOAD 202UA offers a proven and versatile solution. Contact ANYLOAD to discuss capacity selection, variant options, or integration support for your platform scale design.
Features
- Rated Capacities: 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
- Material: Aluminum, Clear Anodized
- Full Scale Output: 0.9mV/V ± 0.1%
- Calibration in mV/V/Ω: ± 0.05%
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- IP Rating: IP65
- CE and RoHS certified
Specifications
| Rated Capacities | 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg |
|---|---|
| Full Scale Output | 0.9mV/V ± 0.1% |
| Calibration in mV/V/Ω | ± 0.05% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.020% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.015% |
| Creep in 30 minutes | < ± 0.015% |
| Input Resistance | 1190Ω ± 10Ω |
| Output Resistance | 1000Ω ± 10Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP65 |
Interchangeable
| Flintec | PB |
|---|---|
| Rice Lake | RL BLP** |
**C1 of RL BLP is of 1/2-20 UNC
