202UA Célula de carga plana

Name: 202UA Planar Load Cell
SKU: 1256
Availability: InStock

The ANYLOAD 202UA is a low-profile aluminum planar beam load cell engineered for platform and retail scale applications where minimal installation height is a critical design requirement. With a profile that enables scale assemblies of approximately 25mm in height, the 202UA fits a wide range of compact rectangular scale platforms in various shapes and sizes. Available in capacities from 3.75 kg to 375 kg, the load cell covers a broad spectrum of light-to-medium weighing applications across retail, industrial, and commercial environments.

A key design advantage of the 202UA is its current-calibrated output, rated at 0.9mV/V ± 0.1%. This pre-derated output eliminates the need for a junction box with trim pot, allowing direct corner replacement without recalibration — significantly simplifying maintenance and field servicing for multi-cell scale installations. For example, a 60kg capacity scale can be built using four 202UA-15 kg cells, allowing full weight capacity to roll up to the scale edge without risk of overload.

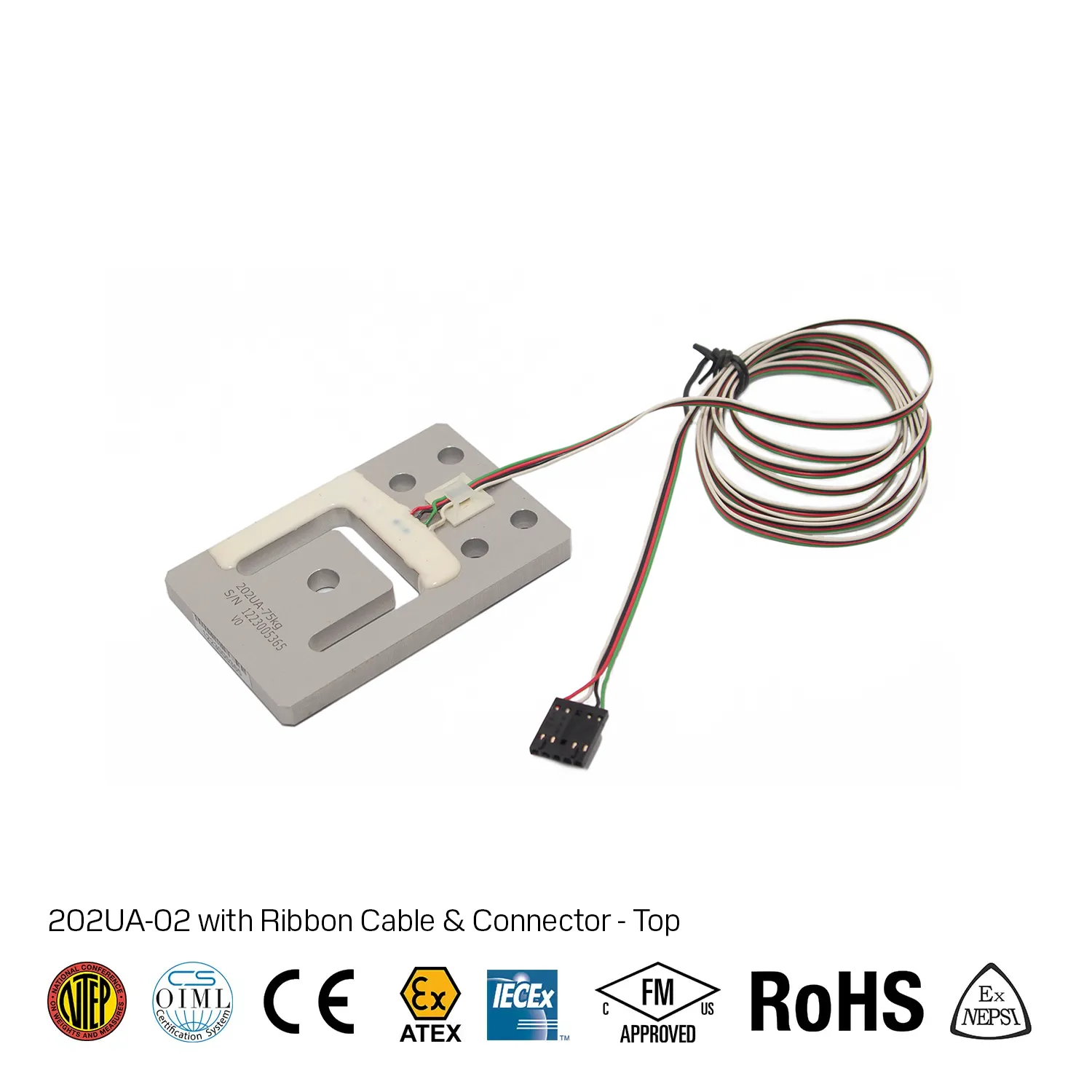

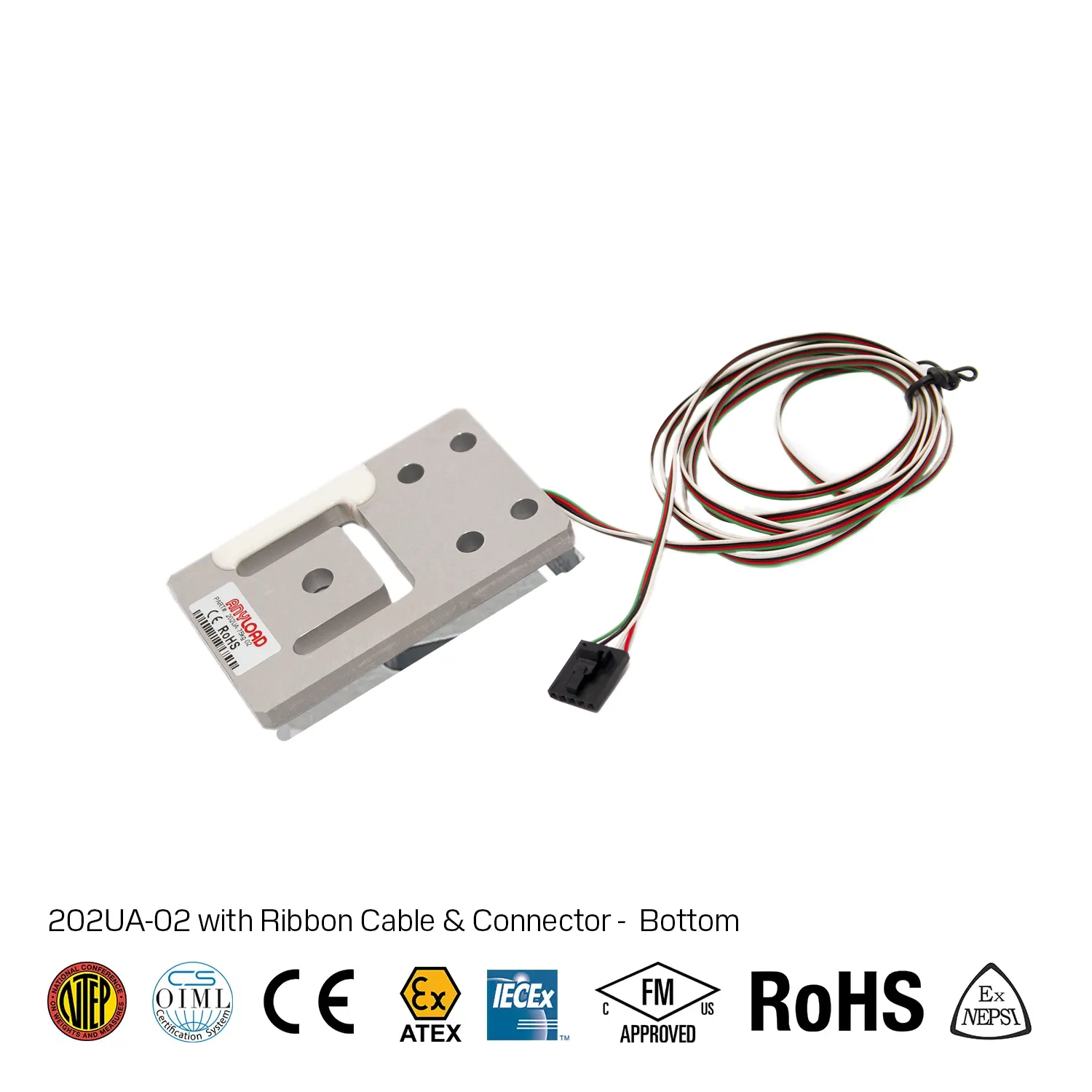

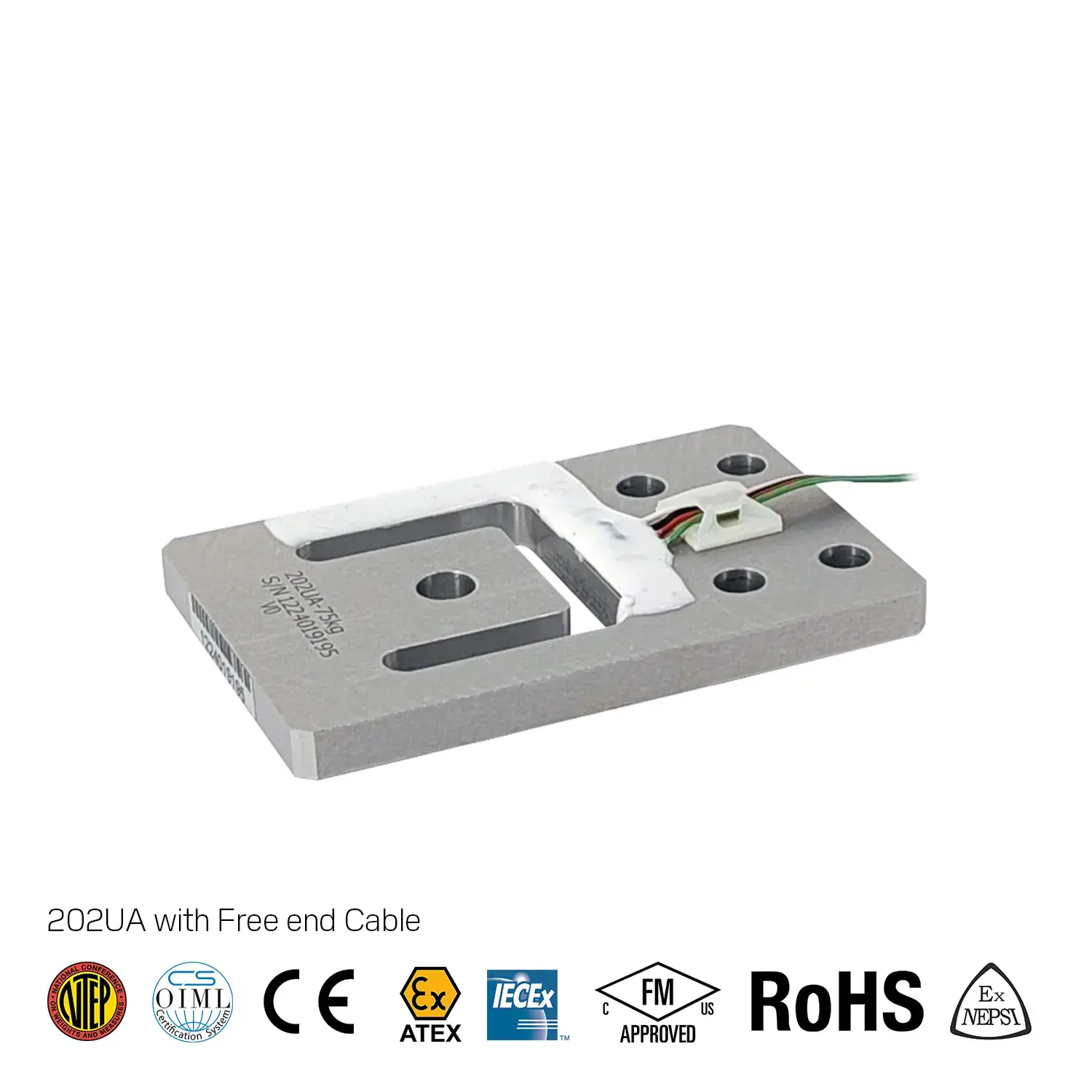

The 202UA is available in standard cable configurations (202UA) and connector-style variants (202UA-02), both using 4-conductor wiring. The 202UA-25A variant offers an extended C3 installation space dimension for applications requiring additional mechanical clearance. All variants are constructed from aluminum and are RoHS compliant, with certifications including CE, FM, ATEX, and IECEx, making the 202UA suitable for use in both standard commercial and hazardous-area weighing installations.

For OEM scale manufacturers, system integrators, and scale service technicians seeking a reliable, interchangeable planar beam load cell with a simplified calibration process, the ANYLOAD 202UA offers a proven and versatile solution. Contact ANYLOAD to discuss capacity selection, variant options, or integration support for your platform scale design.

Más información

Ficha de datos

Número de pieza

Limpiar

- +

Características

Rated Capacities: 3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
Material: Aluminio, anodizado transparente
Full Scale Output: 0.9mV/V ± 0.1%
Calibration in mV/V/Ω: ± 0.05%
Sobrecarga segura: 150% del fondo de escala
Sobrecarga de rotura: 300% del fondo de escala
Clasificación IP: IP65
Certificado CE y RoHS

Especificaciones

Capacidades nominales	3.75kg, 7.5kg, 15kg, 37.5kg, 75kg, 150kg, 375kg
Salida a fondo de escala	0.9mV/V ± 0.1%
Calibration in mV/V/Ω	± 0.05%
Saldo cero	± 0,02mV/V
No linealidad	< ± 0,020%
Repetibilidad	< ± 0,017%
Error de histéresis	< ± 0.015%
Creep en 30 minutos	< ± 0.015%
Resistencia de entrada	1190Ω ± 10Ω
Resistencia de salida	1000Ω ± 10Ω
Excitación recomendada	10 V (15 V máximo)
Resistencia del aislamiento	> 2GΩ (50V CC)
Temperatura nominal	De -10°C a 40°C De 14°F a 104°F
Sobrecarga segura	150% del fondo de escala
Romper la sobrecarga	300% del fondo de escala
Tipo de junta	Sellado ecológico
Clasificación IP	IP65
