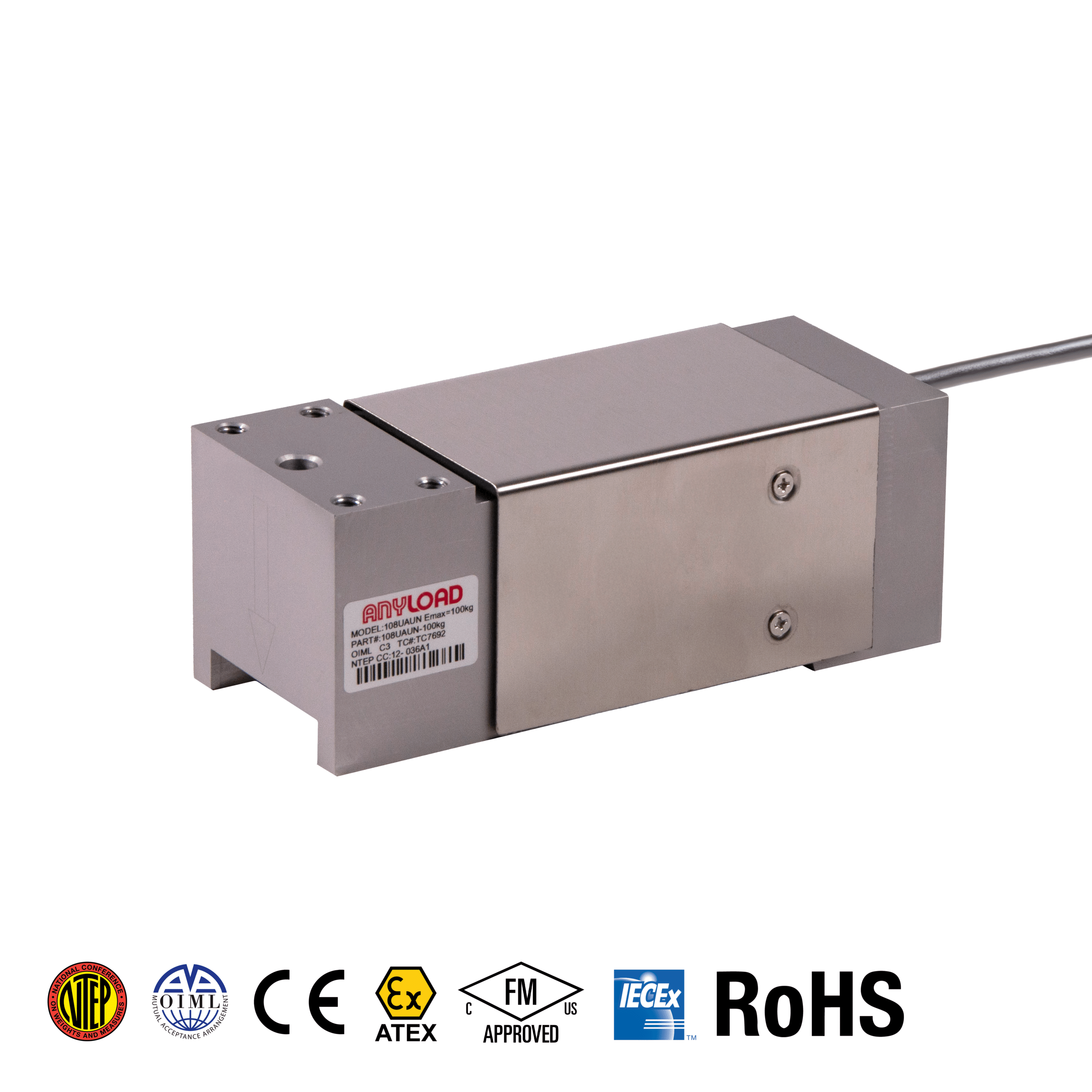

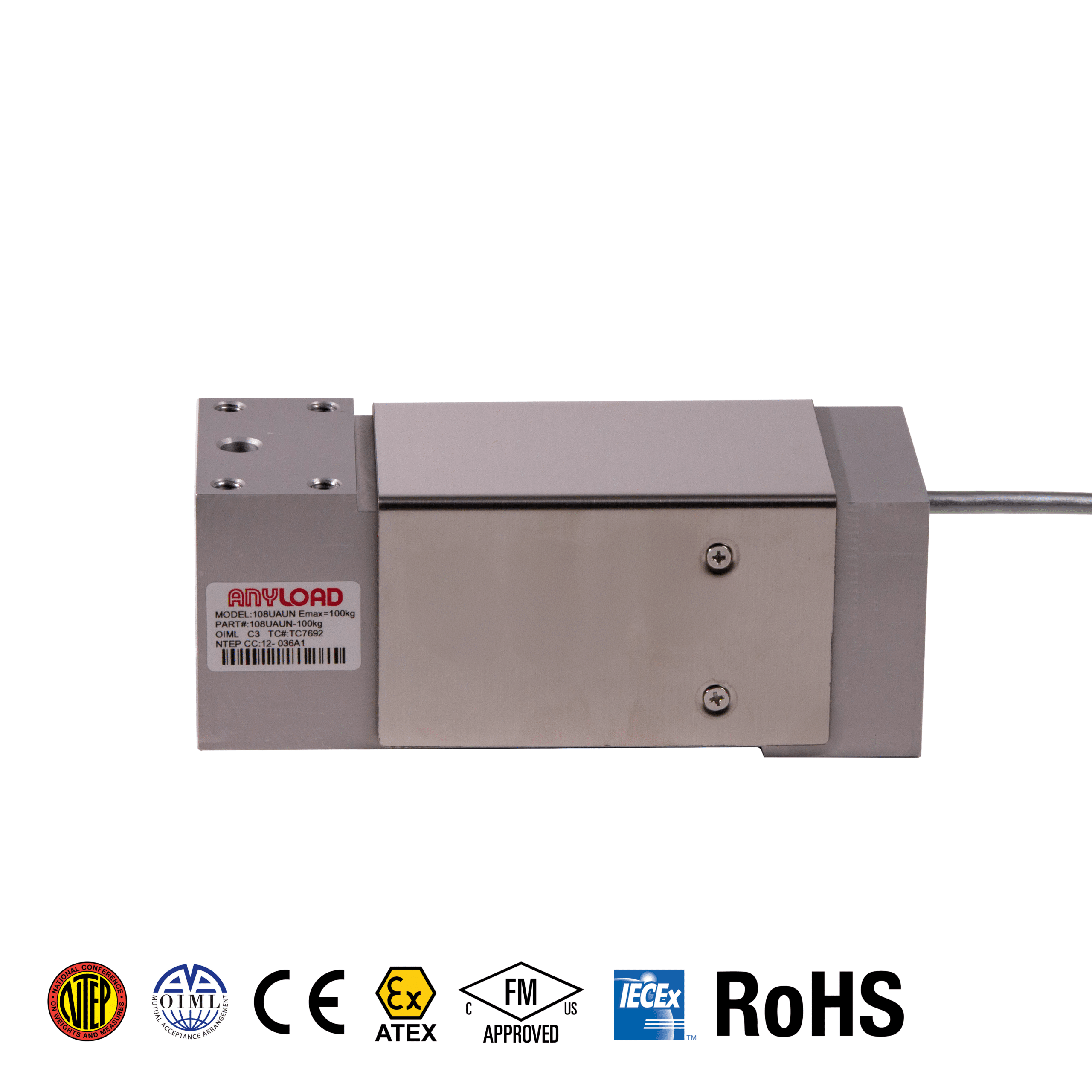

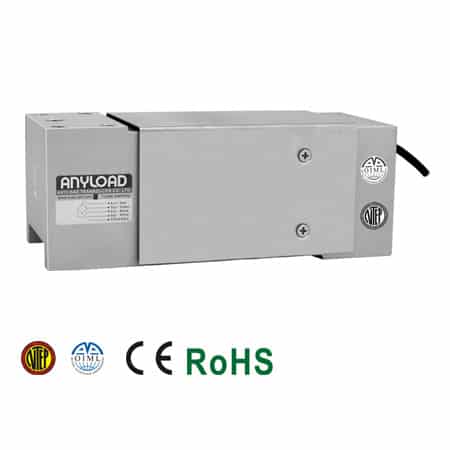

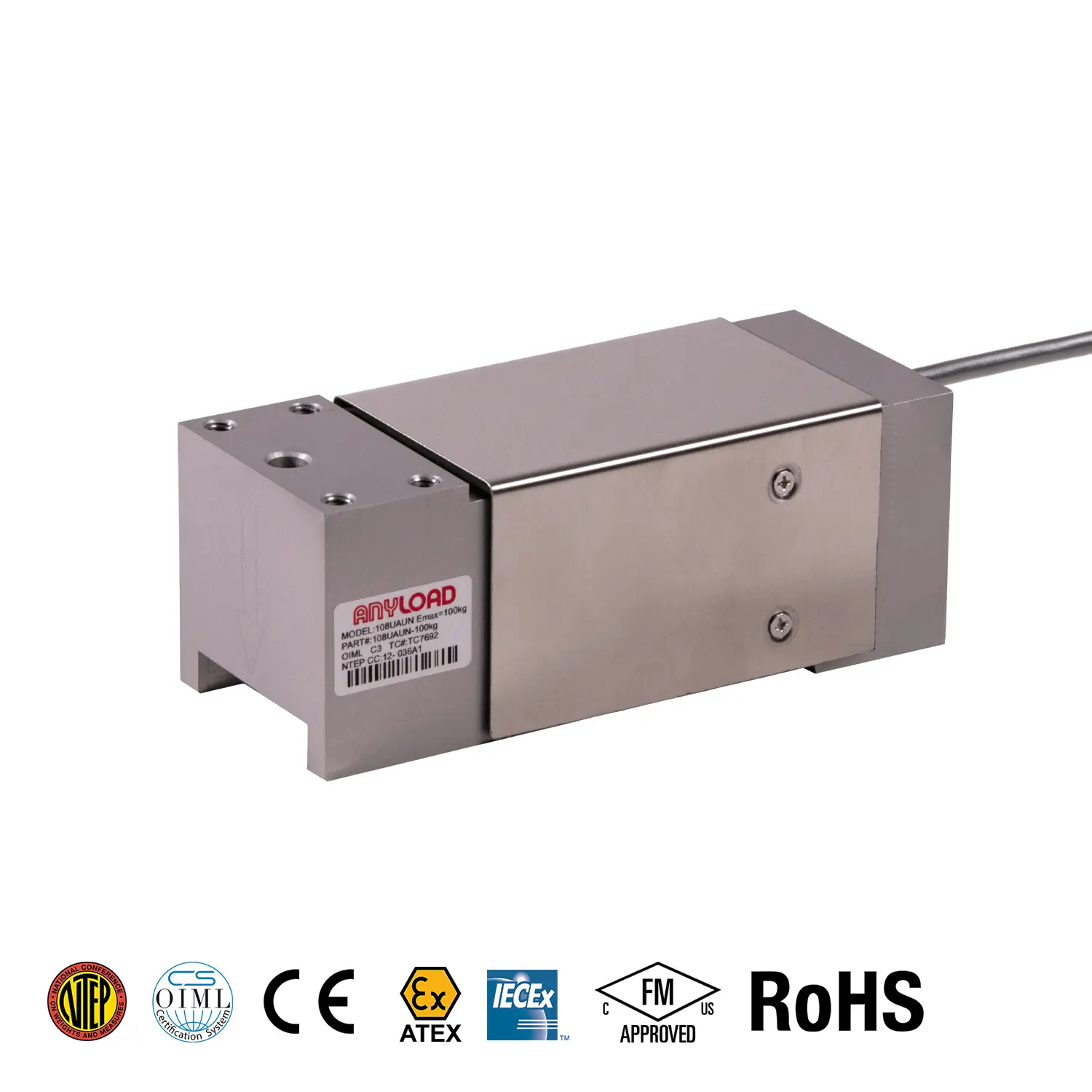

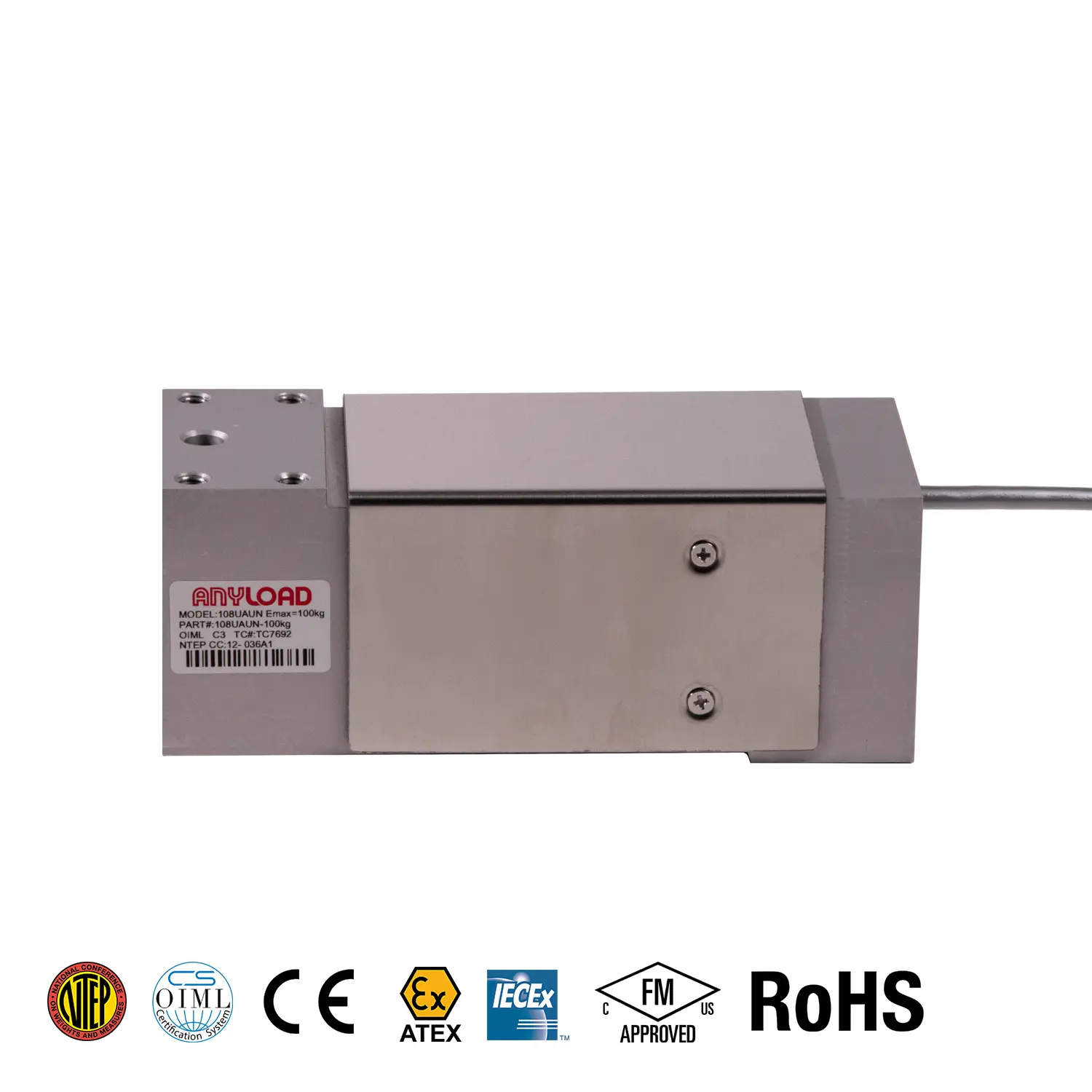

108UAUN Single Point Load Cell
Description:ย
The 108UAUN is a versatile OIML & NTEP approved single-point load cell that is available for a wide range of capacities from low to medium. It provides dependable results in challenging conditions, compensated to withstand side loading. The load cell is often used in process weighing and other dynamic and static applications.
Features:
- Material: Aluminum, Clear Anodized
- Thread: Imperial
- Rated Capacities: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t, 1.5t
- Full Scale Output: 2mV/V ยฑ 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- NTEP 1:4 000 Class III, Single Cell certified from 200kg-1t
- 30 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
- 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
- 500 kg up to & including 1.5t: Certified up to OIML MAA C4, Y=4000
- CE and RoHS certified
| Rated Capacities | 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t, 1.5t |
| Reference Max. Platform Size | 750mm x 750mm |
| Full Scale Output | 2mV/V ยฑ 10% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 415ฮฉ ยฑ 15ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Rated Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Nominal Temperature Range | –10ยฐC to 40ยฐC/14ยฐF to 104ยฐF |
| Service Temperature Range | –18ยฐC to 65ยฐC/0ยฐF to 149ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Artech | 60410 |
| ANYLOAD | 651BAUN |
| Coti Global | CG-50 |
| Flintec | PCB* |
| HBM | PW12B |
| HBM | PW12 |
| Rice Lake | RL1250 |
| Vishay Celtron | LOC |
| Vishay Revere Transducers | 652 |
| Vishay Sensortronics | 60060 |
| Vishay Tedea-Huntleigh | 1250 |
ย
* * Flintec PCB is of stainless steel construction, hermetically sealed. Flintec PCB has 3 versions: PCB, PCBB & PCBC. Anyloadโs 108UAUN is interchangeable to PCB versions.
