108UA Single Point Load Cell

Name: 108UA Single Point Load Cell
SKU: 1572
Availability: InStock

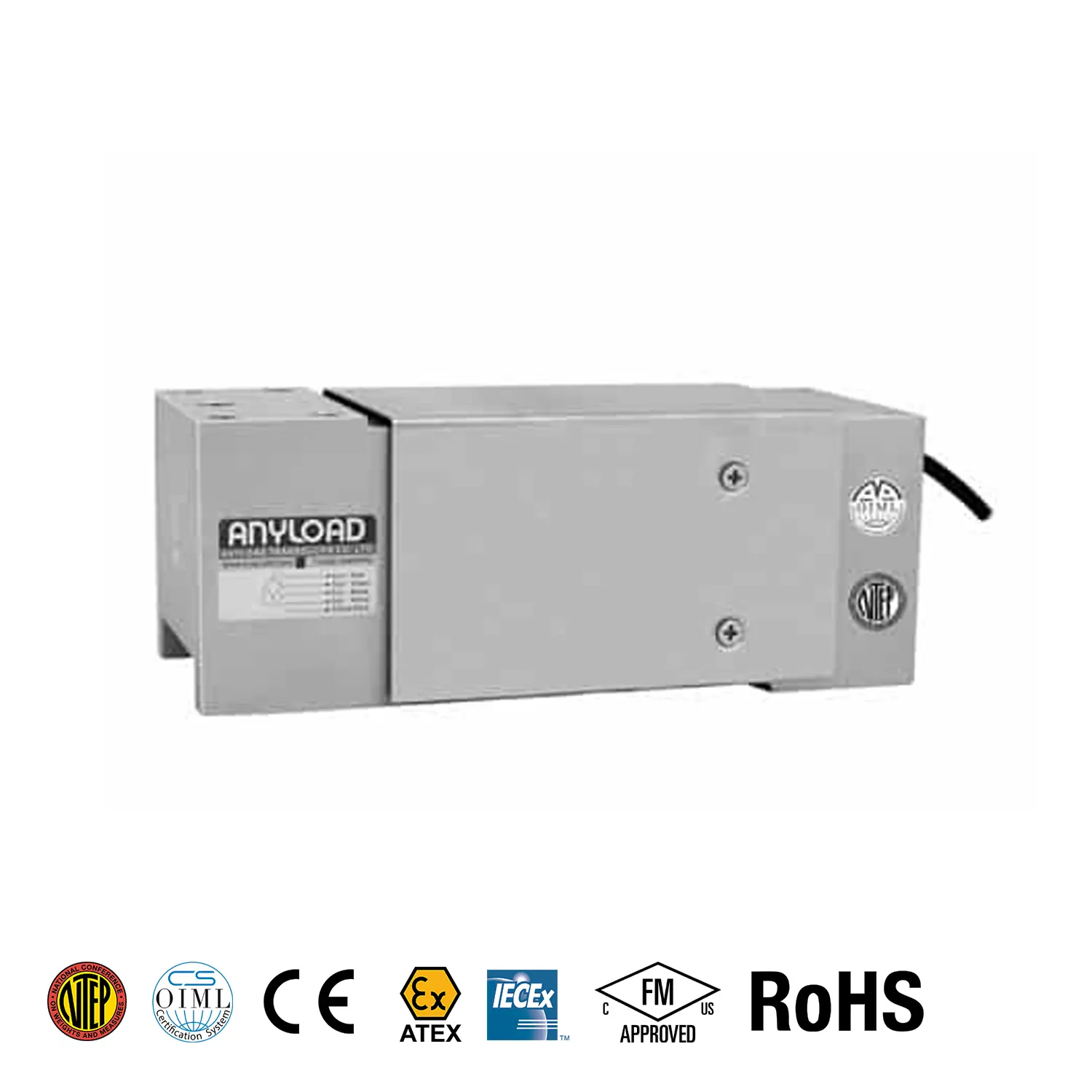

The ANYLOAD 108UA is aluminum, clear anodized single point load cells designed for platform scale and bench scale applications. Available in capacities ranging from 50kg to 1t, this load cell offer a compact and versatile solution for a wide range of industrial and commercial weighing systems. With a reference maximum platform size of 750×750 mm, it is well-suited for use in retail scales, counting scales, industrial platform scales, and checkweigher systems.

The model feature a full scale output of 2.0 mV/V, IP66 environmental sealing, and compliance with NTEP and OIML accuracy standards — making it suitable for trade-approved and legal-for-trade weighing applications.

ATEX, FM, and IECEx approved versions are available for hazardous area installations, and RoHS compliance ensures suitability for environmentally regulated markets. The 108UA is engineered to ANYLOAD’s precision manufacturing standards, offering reliable, repeatable performance in both OEM and aftermarket weighing applications.

If your application requires single point load cells for platform scales, OEM integration, or hazardous area weighing, ANYLOAD’s technical team can assist with model selection, capacity matching, and approval documentation. Contact us to discuss your specific requirements.

Datasheet

Part Number

Clear

- +

Features

Rated Capacities: 50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t
Material:Aluminum, Clear Anodized
Thread: Metric
Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP67
NTEP 1:4 000 Class III, Single Cell certified from 200kg-1t
50kg-500kg: OIML-СS C6, Y=29 000;
635kg-1.5t: OIML-СS C4, Y=4 000
CE and RoHS certified

Specifications

Rated Capacities	50kg, 100kg, 150kg, 200kg, 300kg, 500kg, 635kg, 700kg, 1t
Reference Max. Platform Size	750mm x 750mm
Full Scale Output	2mV/V ± 10%
Zero Balance	± 0.02mV/V
Non-linearity	< ± 0.017%
Repeatability	< ± 0.017%
Hysteresis Error	< ± 0.017%
Creep in 30 minutes	< ± 0.023%
Input Resistance	415Ω ± 15Ω
Output Resistance	350Ω ± 3Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Temperature Effect on Sensitivity	< ±0.0012% of Cn/k
Temperature Effect on Zero Balance	< ± 0.0040% of Cn/k
Nominal Temperature Range	–10°C to 40°C/14°F to 104°F
Service Temperature Range	–18°C to 65°C/0°F to 149°F
Storage Temperature Range	-50°C to 85°C/-58°F to 185°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Environmentally sealed
IP Rating	IP67
