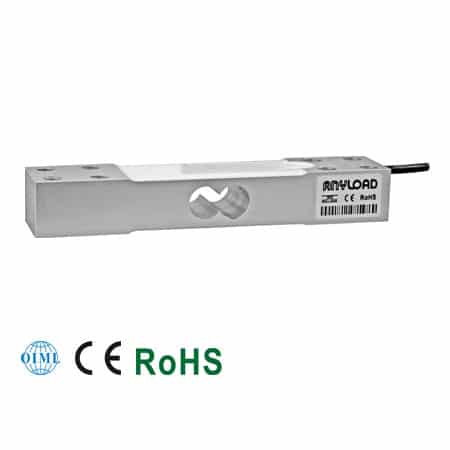

108TAYM Single Point Load Cell
Description:
The 108TAYM is an OIML-certified legal-for-trade single-point load cell that provides high accuracy at a competitive price. The 108TAYM and 108TAYM-1 are interchangeable with Yamato UH69-6100 and UH69-6200 respectively.ย
Features:ย
- Material: Aluminum, Clear Anodized
- Rated Capacities: 75kg, 150kg, 300kg
- Full Scale Output: 2mV/V ยฑ 10%/-20%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- OIML C3 75kg-300kg
- CE and RoHS certified
| Rated Capacities | 75kg, 150kg, 300kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full Scale Output | 2mV/V ยฑ 10%/-20% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.016% |
| Input Resistance | 385ฮฉ ยฑ 15ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Nominal Temperature Range | –10ยฐC to 40ยฐC/14ยฐF to 104ยฐF |
| Service Temperature Range | –18ยฐC to 65ยฐC/0ยฐF to 149ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
| Rated Capacities | 75kg, 150kg, 300kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full Scale Output | 2mV/V ยฑ 10%/-20% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.015% |
| Repeatability | < ยฑ 0.01% |
| Hysteresis Error | < ยฑ 0.015% |
| Creep in 30 minutes | < ยฑ 0.016% |
| Input Resistance | 1263ฮฉ ยฑ 30ฮฉ |
| Output Resistance | 1000ฮฉ ยฑ 9ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 1Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Nominal Temperature Range | –10ยฐC to 40ยฐC/14ยฐF to 104ยฐF |
| Service Temperature Range | –18ยฐC to 65ยฐC/0ยฐF to 149ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Note: You may need a software that can open/view STEP files.
108TAYM
| Manufacturer | Model | Scale Capacity | Part Number |
| Yamato | UH69-6100 | 30kg | 108TAYM-75kg |
| Yamato | UH69-6100 | 60kg | 108TAYM-150kg |
| Yamato | UH69-6100 | 150kg | 108TAYM-300kg |
ย
108TAYM-01
| Manufacturer | Model | Scale Capacity | Part Number |
| Yamato | UH69-6200 | 30kg | 108TAYM-75kg-01 |
| Yamato | UH69-6200 | 60kg | 108TAYM-150kg-01 |
| Yamato | UH69-6200 | 150kg | 108TAYM-300kg-01 |
