| Rated Capacities | 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg |
| Reference Max. Platform Size | 400mm x 450mm |
| Full Scale Output | 2mV/V ± 10% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation (DC/AC) | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |

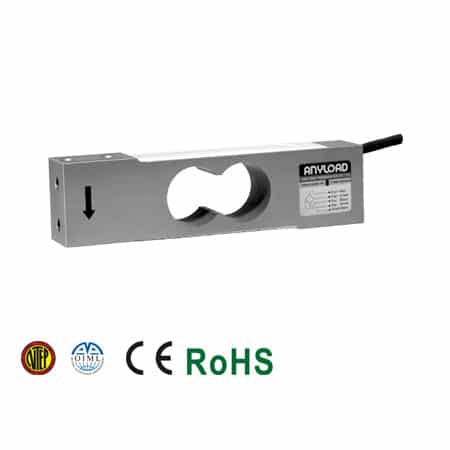

108TA Single Point Load Cell
Description:
The 108TA is a compact and low-profile single-point with OIML C3 and NTEP approval. This model is ideal for a wide variety of lower-capacity applications, delivering accurate and reliable performance. Common applications include retail scales, bench scales, process/check weighing, packaging scales, and more. The 108TA is interchangeable with Vishay Tedea-Huntleigh 1042, Revere 642C, and Flintec PC42.
Features:
- Material: Aluminum
- Thread: Metric
- Rated Capacities: 3kg, 5kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg, 200kg
- Full Scale Output: 2mV/V ± 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- NTEP 1:5 000 Class III, Single Cell certified from 15kg-150kg
- 3 kg: Certified up to OIML C3
- 5 kg up to 50 kg: Certified up to OIML MAA C4, Y=15000
- 50 kg up to & including 200 kg: Certified up to OIML MAA C5, Y=12300
- CE and RoHS
Similar Product: 108TAUN Single Point Load Cell
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Flintec | PC42 (20kg-150kg) |
| Vishay Tedea-Huntleigh | 1042(metric threads) |
| Vishay Revere Transducers | 642C |
* Flintec PC42-200kg has a M8 mounting hole
