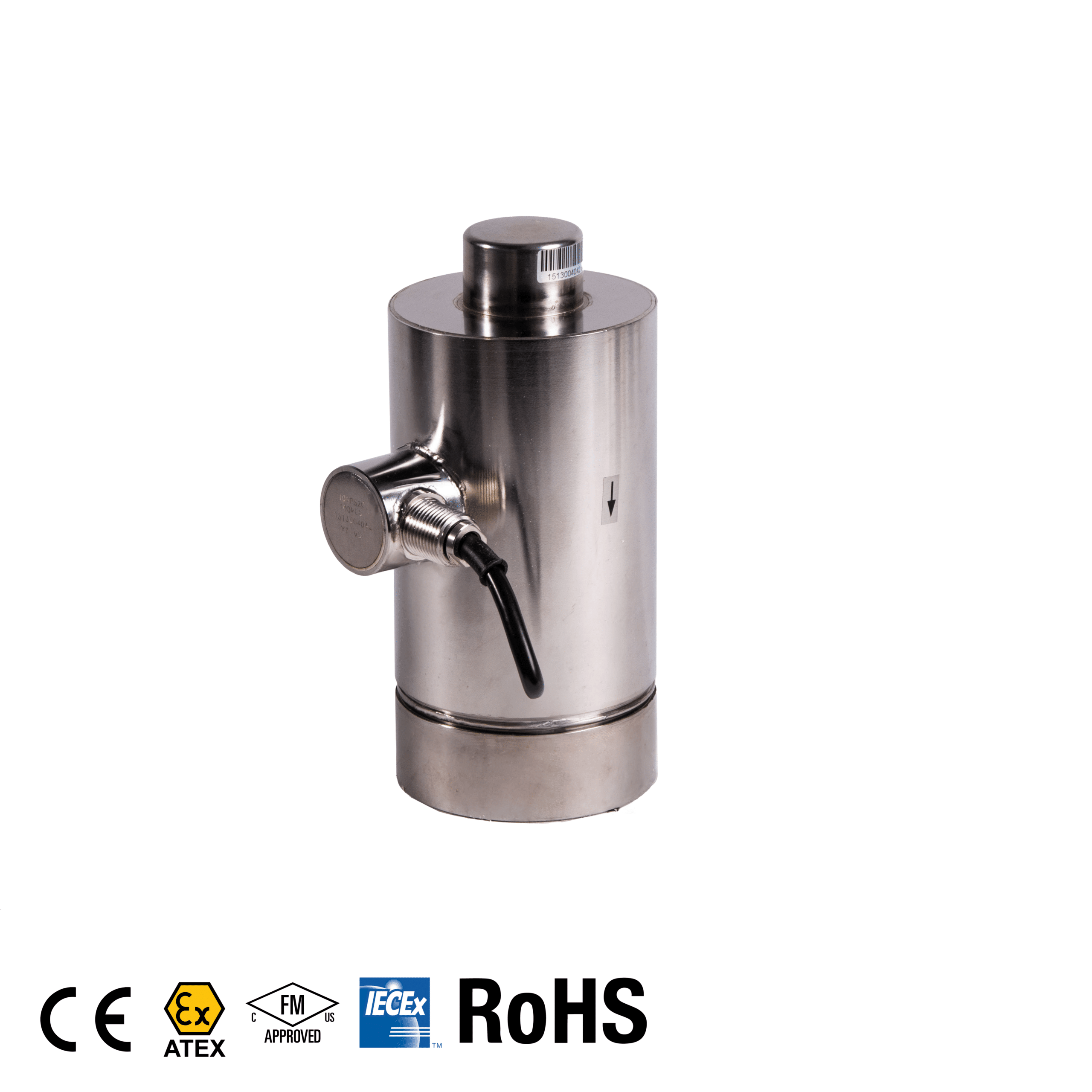

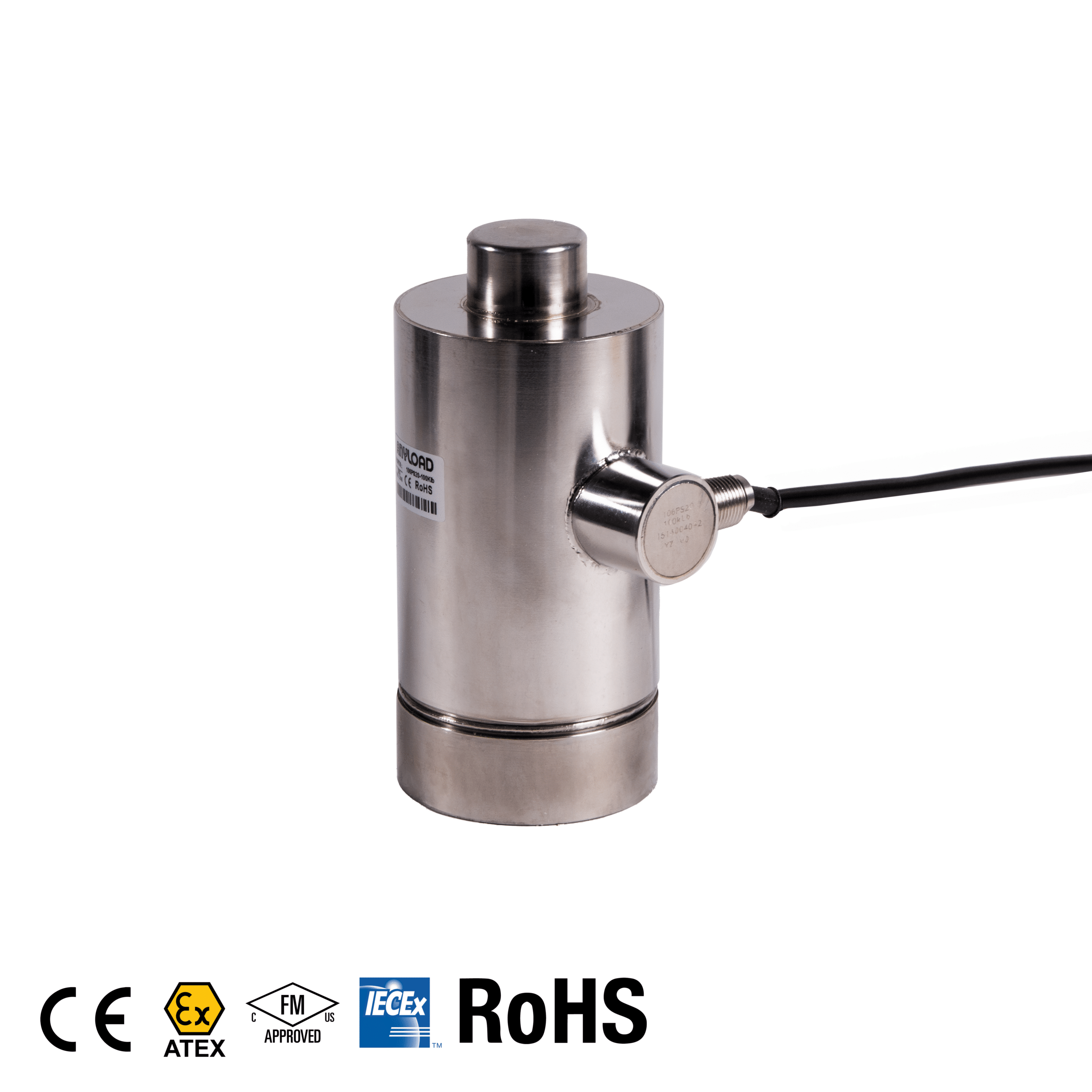

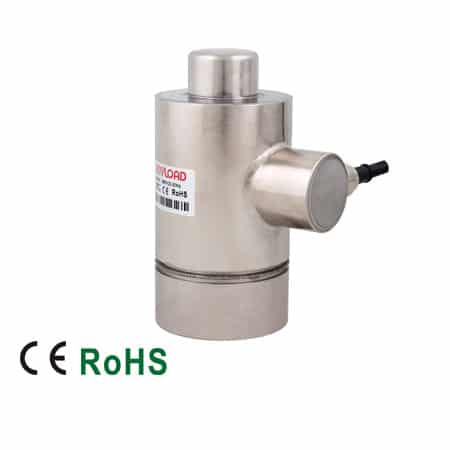

106PS20 Canister Load Cell

Built from 2Cr13 stainless steel, the 106PS20 delivers a full scale output of 2.0 mV/V ±0.1% with nonlinearity below ±0.030%, providing dependable accuracy for large-capacity static and process weighing systems. The canister/disk profile allows for straightforward integration into vessel support structures, and the 350Ω input and output resistance ensures compatibility with standard weighing instrumentation. Safe overload is rated at 150% of full scale, with a breaking overload of 300%, giving engineers a wide safety margin for dynamic or unexpected loading conditions.

An ATEX, FM, and IECEx certified version of the 106PS20 is available with the “-Ex” suffix, extending its use into hazardous area applications. Designed for direct interchangeability, the 106PS20 is cross-referenced to equivalent models from Coti Global and Vishay Revere Transducers, simplifying replacement and system upgrades for plants standardizing on a single load cell platform. Typical applications include large tank and vessel weighing, silo and hopper scale systems, truck and rail scale support, and other high-capacity industrial process weighing installations.

If your operation requires a high-capacity canister load cell for tank, silo, or process weighing, ANYLOAD can assist with product selection and system integration. We work with industrial plants and system integrators to match load cell capacity, sealing, and certification requirements to specific vessel and structural configurations.
