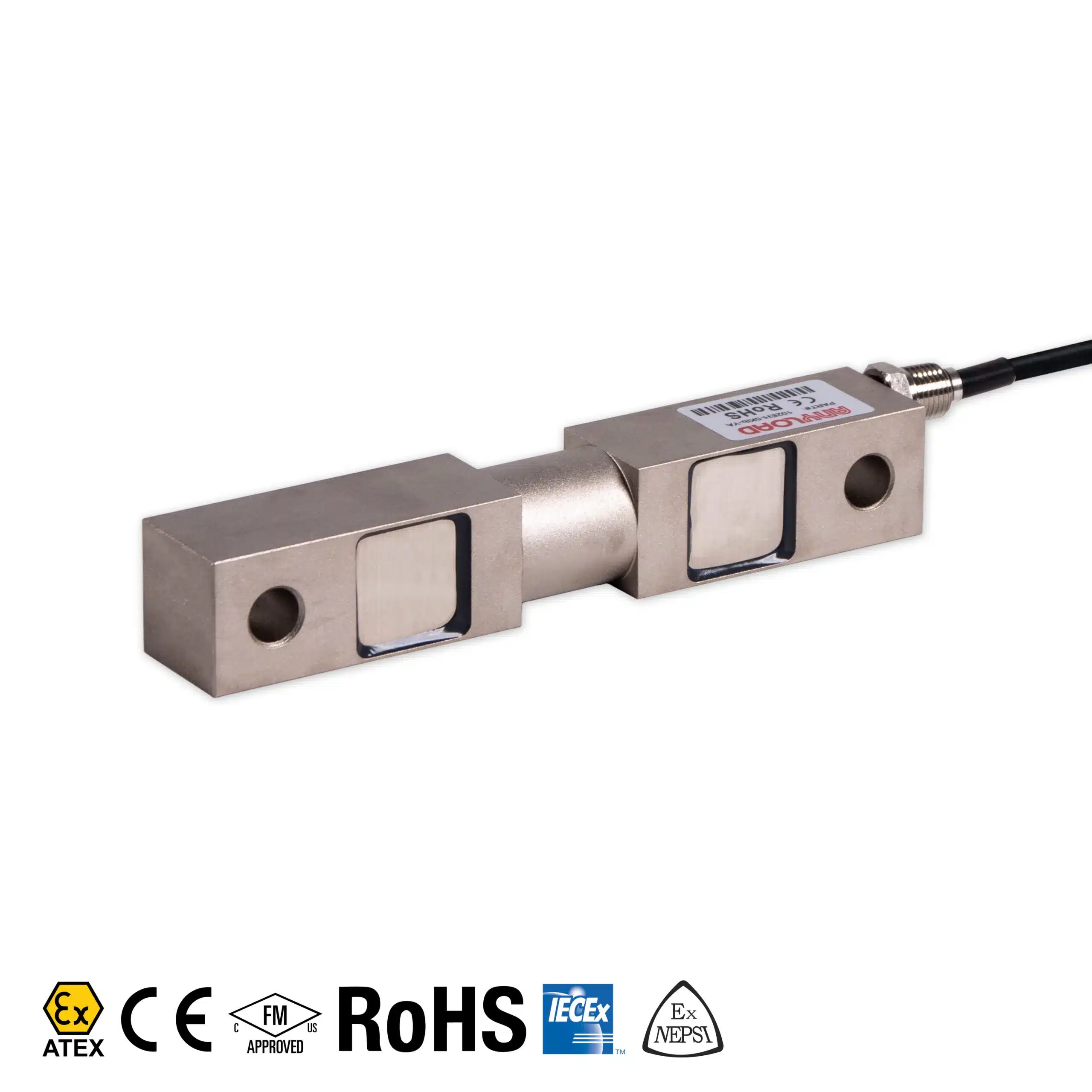

102EH Double Ended Beam Load Cell
Description:
The 102EH is IP67 water-resistant with center loading. The design is well suited to silo, tank, and hopper weighing. A compression weigh module (102EHM2) is also available from Anyload that shields the load cell, minimizes off-center loading, protects from lifting, and compensates for thermal expansion all to provide the ideal weighing environment.
Features:ย
- Material: Alloy steel
- Rated Capacities: 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb,100Klb, 125Klb, 200Klb, 300Klb
- Full Scale Output: 3mV/V ยฑ 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacities | 1Klb, 1.5Klb, 2.5Klb, 5Klb, 10Klb, 15Klb, 20Klb, 25Klb, 35Klb, 50Klb, 60Klb, 75Klb, 100Klb, 125Klb, 200Klb, 300Klb |
| Full Scale Output | 3.0mV/V ยฑ 0.25% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | โค 125Klb < ยฑ 0.050% // โฅ 200Klb < ยฑ 0.1% |
| Repeatability | < ยฑ 0.030% |
| Hysteresis Error | โค 125Klb ย < ยฑ 0.030% // โฅ 200Klb < ยฑ 0.1% |
| Creep in 30 minutes | < ยฑ 0.030% |
| Input Resistance | 700ฮฉ ยฑ 10ฮฉ |
| Output Resistance | 700ฮฉ ยฑ 5ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | -30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
Download 3D Drawing
102EH-(1-25)klb
Download 3D Drawing
102EH-(35-60)klb
Download 3D Drawing
102EH-(75-125)klb
Download 3D Drawing
102EH-(200-300)klb
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Coti Global | CG-16 |
| Rice Lake | RL75016, RL77032 |
| Mettler Toledo | SLD425 |
| Vishay Celtron | DSR |
| Vishay Revere Transducers | 5203 |
| Vishay Sensortronics | 65016 |
