102AH Double Ended Beam Load Cell

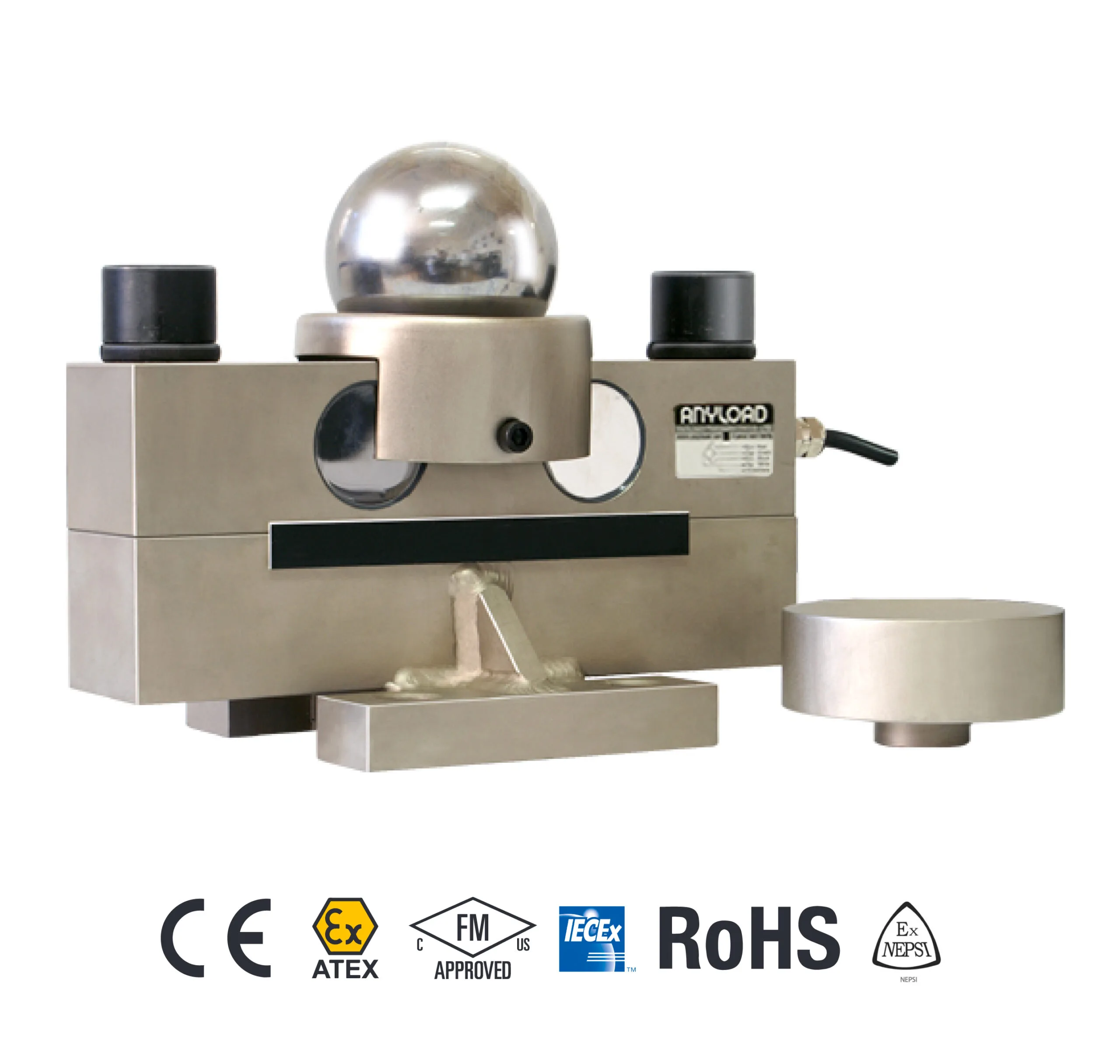

The Anyload 102AH Double Ended Beam Load Cell is a heavy-duty shear beam sensor designed for high-capacity industrial weighing applications such as tank, hopper, platform, and structural weighing systems. Constructed from rugged alloy steel and sealed to IP67 for protection against dust and moisture, the 102AH delivers stable, linear output over a wide range of capacities from 5 t to 50 t.
- Material: Alloy steel
- Rated Capacities: 5t, 10t, 15t, 20t, 25t, 30t, 50t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Features
- Material: Alloy steel
- Rated Capacities: 5t, 10t, 15t, 20t, 25t, 30t, 50t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP67
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 5t, 10t, 15t, 20t, 25t, 30t, 50t |
|---|---|
| Full Scale Output | 2mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ± 0.023% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.023% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 770Ω ± 30Ω |
| Output Resistance | 700Ω ± 5Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ± 0.0040% of Cn/k |
| Compensated Temperature Range | –10°C to 50°C/14°F to 122°F |
| Service Temperature Range | –30°C to 70°C/-20°F to 160°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
