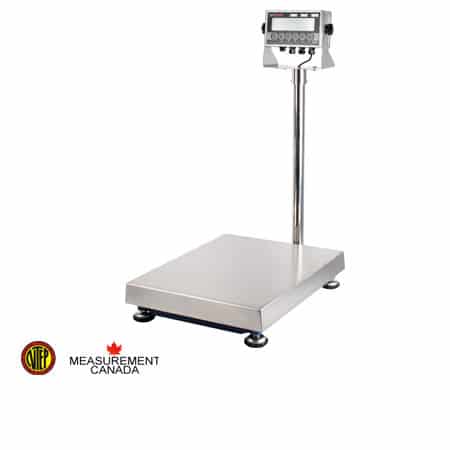

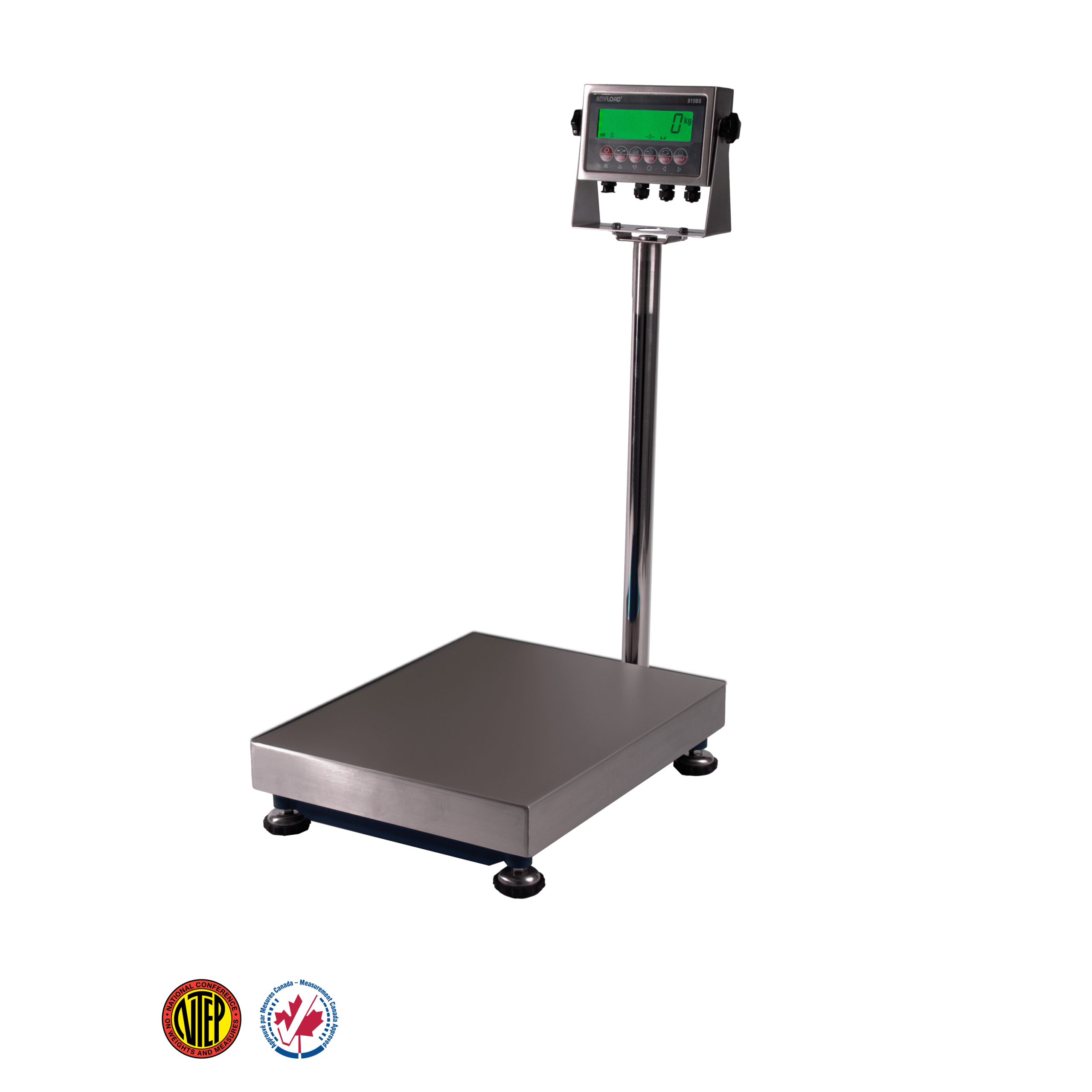

TN Bench Scale

ANYLOAD TN series bench scales are manufactured with a heavy gauge mild steel construction and have a heavy gauge stainless steel pan. The TN series bench scales are supplied with aluminum load cells that are NTEP 1:4000 Class III, Single Cell certified from 200kg-400kg as well as CE and RoHs certified.

  • Measurement Canada and NTEP certified, capacities range from 15kg to 300kg, platform sizes from 12 inch x 12 inch to 24 inch x 24 inch

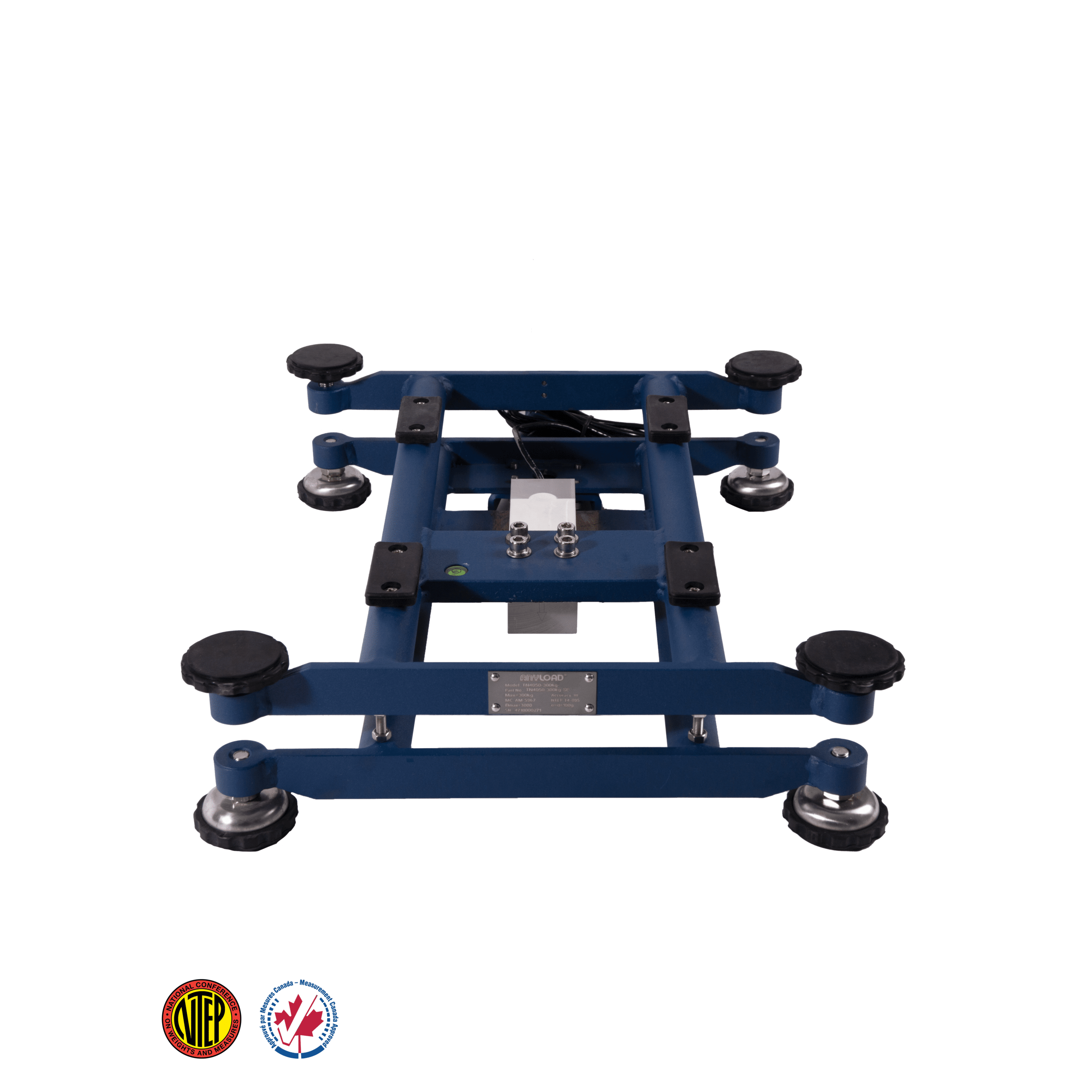

  • Heavy gauge mild steel construction
  • Heavy gauge stainless steel platform
  • Supplied with bracket, column, column holder, level bubble, load cells
  • Breaking Overload: 150% of full scale
  • NTEP 1:4000 Class III, Single Cell certified load cells from 200kg-400kg
  • CE, RoHs, Measurement Ukraine and Measurement Spain certified load cells
  • Indicator is sold separately
Models Platform Size Capacity
TN3030 30cm x 30cm/11.81in x 11.81in 15kg, 30kg, 60kg
TN4050 / TN4050-LE / TN4050-SE 40cm x 50cm/15.75in x 19.69in 60kg, 150kg, 300kg
TN4646 / TN4646-LE / TN4646-SE 46cm x 46cm/18.11in x 18.11in 60kg, 150kg, 300kg
TN4660 / TN4660-LE / TN4660-SE 46cm x 60cm/18.11in x 23.62in 60kg, 150kg, 300kg
TN6060 / TN6060-SE 60cm x 60cm/23.62in x 23.62 150kg, 300kg

pdf- Download data sheet

pdf- Download Brochure

pdf- NTEP Certificate of Conformance

pdf- Measurement Canada Approval

pdf- Download Installation Guide

pdf- Download manual for 805TS and 805BS indicator
