651JS Single Point Load Cell, Stainless Steel, Welded Sealed,  IP68

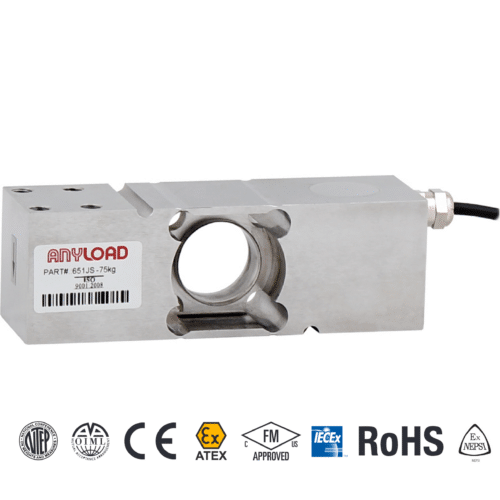

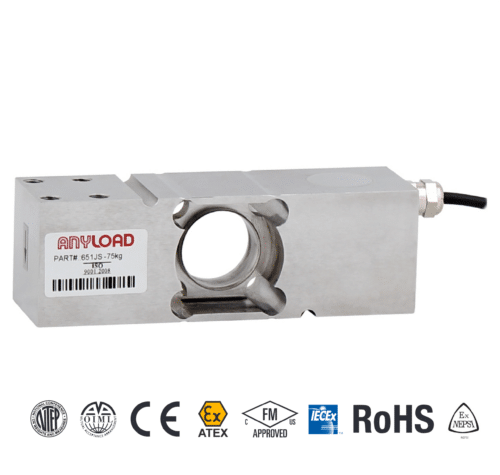

651JS Single Point Load Cell

Description:

OIML certified C9 from 10kg-100kg, this single point load cell is the highest accuracy legal-for-trade load cell available in the world. With IP68/69K stainless steel construction, 14°F to 122°F temperature compensation, and 150% safe overload, the 651JS is the ultimate weighing solution suited to an immense variety of applications.

Features:

  • Material: Stainless steel
  • Rated Capacities: 50kg, 75kg, 200kg, 400kg
  • Full Scale Output: 2mV/V ± 10%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP68/69K
  • OIML MAA C9, Y=18 000 certified from 10kg-100kg
  • OIML MAA C4, Y=26 000 certified from 101kg-500kg
Clear
Product Enquiry
SKU: N/A Category: Tag:
Rated Capacities 50kg, 75kg, 200kg, 400kg
Reference Max. Platform Size 600mm x 600mm
Full Scale Output 2mV/V ± 10%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.03%
Repeatability < ± 0.03%
Hysteresis Error < ± 0.02%
Creep in 30 minutes < ± 0.03%
Input Resistance 1100Ω ± 50Ω
Output Resistance 1000Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Welded seal
IP Rating IP68

pdf- Download Data Sheet

pdf- 651JS-(50-400)kg

Note: You may need a software that can open/view STEP files.

pdf- OIML Certificate of Conformity

pdf- NTEP Certificate of Conformity

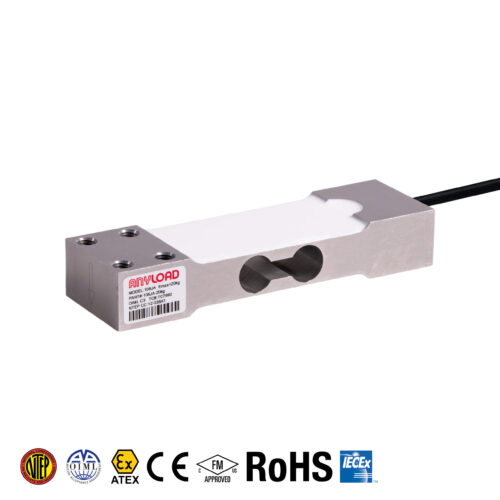

Model ANYLOAD Model
651JS-50kg 108JA-50kg*
651JS-75kg 108JA-75kg*
651JS-75kg 108JA-LE75kg*
651JS-200kg 108JA-SE200kg*
651JS-400kg 108JA-SE400kg*

* Most dimensions are the same, except overall height (H on the drawing): 651JS all capacities at 49mm(1.9inch), while 108JA-50kg & 108JA-75kg 25mm(0.98inch), 108JA-LE75kg, 108JA-SE200kg, 108JA-SE400kg 40mm(1.57inch)
