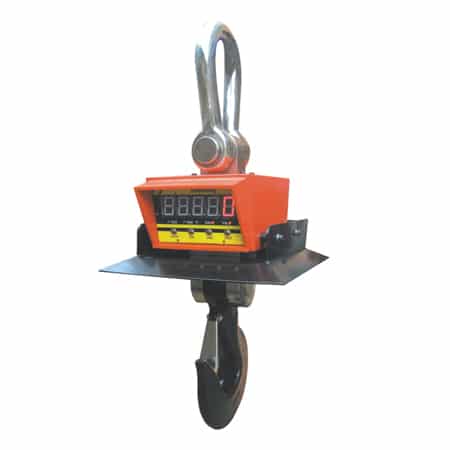

OCSG2 Heat Resistant Crane Scale

  • Capacities: 10Klb, 20Klb, 30Klb, 40Klb, 60Klb
  • Accuracy Class: OIML III
  • Safe Overload: 120% of full scale
  • Breaking Overload: 500% of full scale
  • Steel scale enclosure
  • Alloy steel load receptor
  • Heavy duty bow shackle
  • Heavy duty eye hook
  • Selectable units: kilograms (kg), pounds (lb)
  • Rechargeable 6V/10Ah battery included
  • Power adaptor 9V/1500mA included
  • Infrared remote control included
Capacity 10Klb, 20Klb, 30Klb, 40Klb, 60Klb
Accuracy Class OIML III
Enclosure Material Stainless steel
Display Type LED
Display Digits 5 digits
Digit Height 56mm/2.20in
Safe Overload 120% of full scale
Breaking Overload 500% of full scale
Rechargeable Battery 6V/10Ah (included)
Battery Life 100 hours
Power Adaptor 9V/1500mA (included)
Remote Distance 10m/32.8′
Zero Yes
Tare Yes
Hold Yes
Low battery alarm Yes
Battery supervision Yes
Overload alarm Yes
Auto calibration Yes
3-point linearity correction Yes
Unit switch: kg/lb Yes
Gravity acceleration Yes
Resolution switch Yes
Auto-off set Yes
Idle set No ( use Auto-off feature )
Display speed set Yes
Working Temperature Safe Distance
1000°C/1832°F 1200mm/47.24in
1200°C/2192°F 1500mm/59.05in
1400°C/2552°F 1800mm/70.86in
1600°C/2912°F 2000mm/78.74in

pdf- Download data sheet

pdf- Download User’s Guide

pdf- Download Technical Manual

pdf- Download crane scale comparison chart
