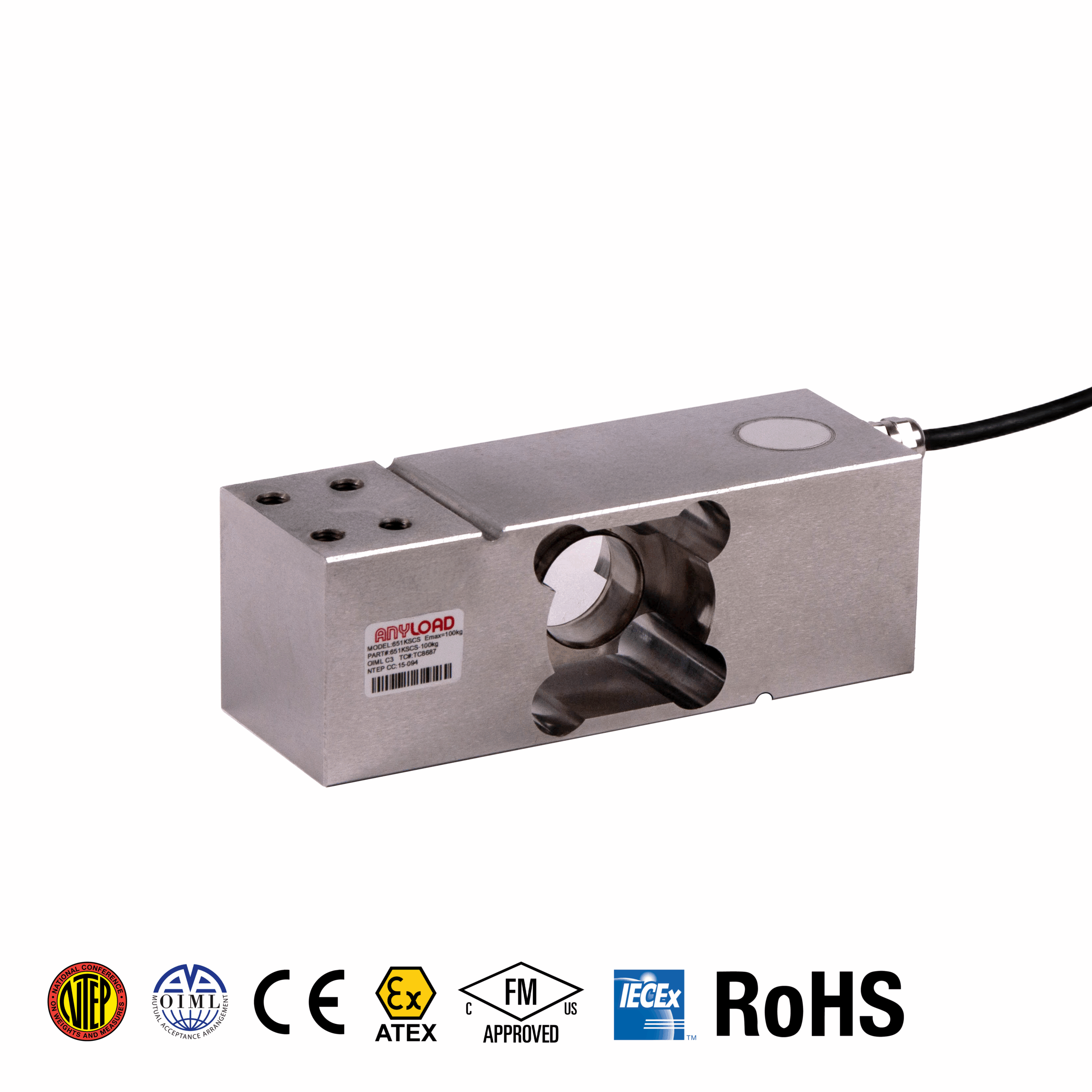

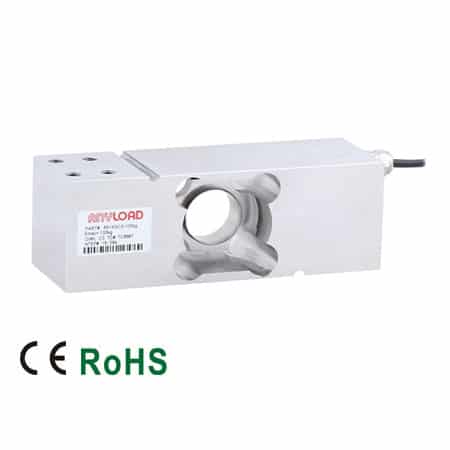

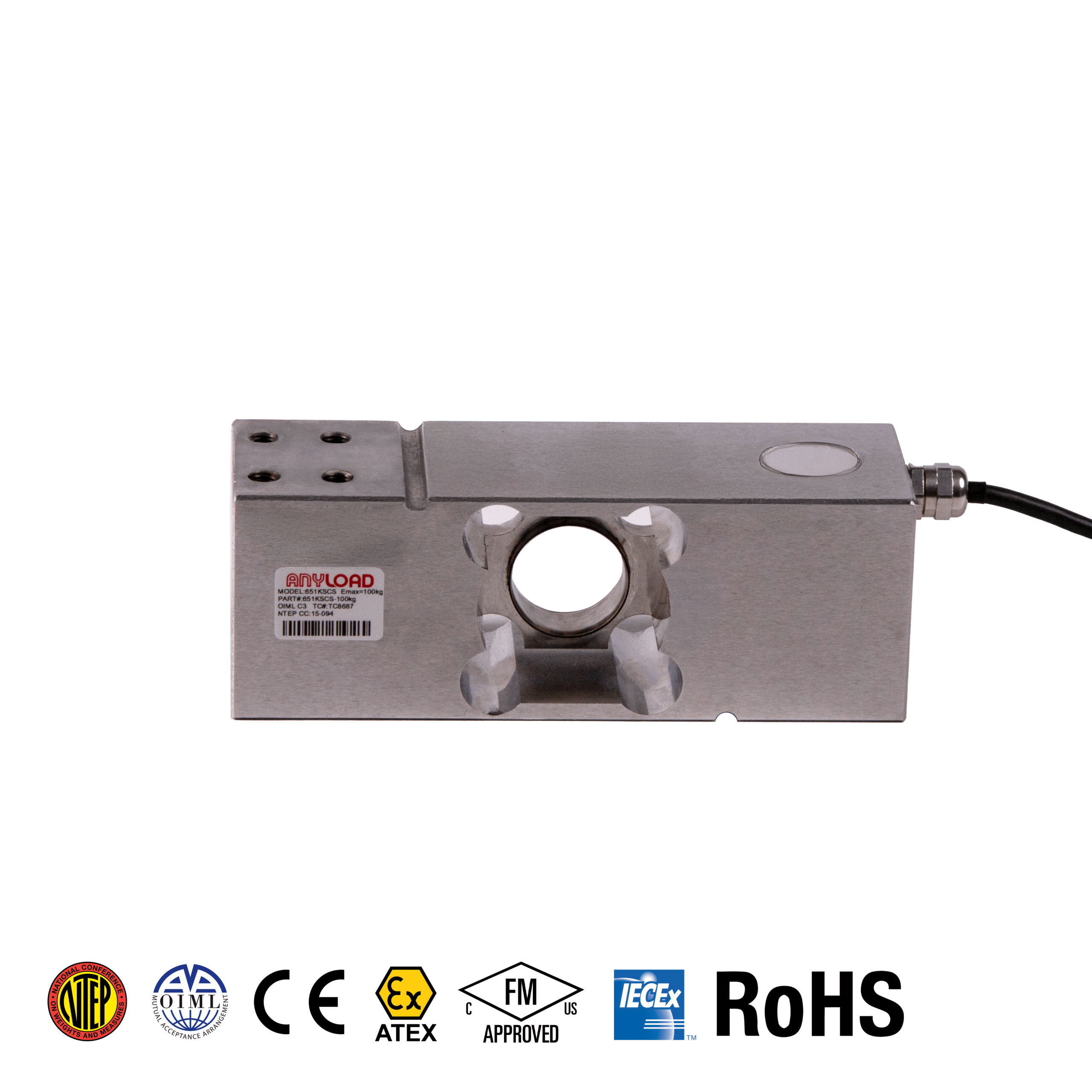

651KSCS Single Point Load Cell
The ANYLOAD 651KSCS is a stainless steel single point load cell designed for platform scales and industrial weighing applications requiring rated capacities from 60kg to 1t. Machined from 17-4PH stainless steel, the load cell is built for a reference maximum platform size of 600×700 mm, making it well suited for retail, bench, and small platform scale designs.
The 651KSCS delivers a full scale output of 2.0 mV/V ±0.25%, non-linearity under ±0.03%, and repeatability under ±0.02%, supporting accurate and repeatable weight measurement over a nominal operating range of -10°C to 50°C (14°F to 122°F). Its welded seal construction provides an IP68 rating for protection against dust and continuous submersion, and the load cell is rated for a safe overload of 150% and a breaking overload of 300% of full scale, giving it durability in demanding industrial and washdown environments.
Certified to ATEX, IECEx, and FM approval standards (with “-Ex” suffix versions available), and carrying CE and RoHS marks, the 651KSCS is suitable for use in hazardous-area applications across industries such as food and beverage processing, chemical handling, pharmaceuticals, and general industrial manufacturing. Select capacities also carry NTEP and OIML legal-for-trade approvals for commercial and trade-certified scale applications. For installations requiring a lighter-weight alternative, ANYLOAD also offers the 108CA aluminum version of this load cell.
If your application requires a stainless steel single point load cell for platform or bench scale integration, ANYLOAD can assist with capacity selection and certification requirements. Contact us to discuss your specific weighing application.
Features
- Rated Capacities: 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t
- Material: Stainless Steel
- Full Scale Output: 2.0mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- 60kg: NTEP 1:10 000 Class III, Single Cell;
100kg-500kg: NTEP 1:5 000 Class III, Single Cell - 60kg: OIML MAA C9, Y=18 000;
100kg-500kg: OIML MAA C4, Y=26 000 - CE and RoHS certified
- ATEX, FM, IECEx available upon request
Specifications
| Rated Capacities | 60kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 600kg, 750kg, 1t |
|---|---|
| Full Scale Output | 2.0mV/V ± 0.25% |
| Zero Balance | ± 0.02mV/V |
| Non-linearity | < ±0.03% |
| Repeatability | < ±0.02% |
| Hysteresis Error | < ±0.02% |
| Creep in 30 minutes | < ±0.03% |
| Input Resistance | 385Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Element Material | 17-4PH Stainless Steel |
| Recommended Excitation | 10V (15V Maximum) |
| Reference Max. Platform Size | 600×700mm |
| Insulation Resistance | > 2GΩ (50V DC) |
| Nominal Temperature Range | –10°C to 50°C/14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded Seal |
| IP Rating | IP68 |
