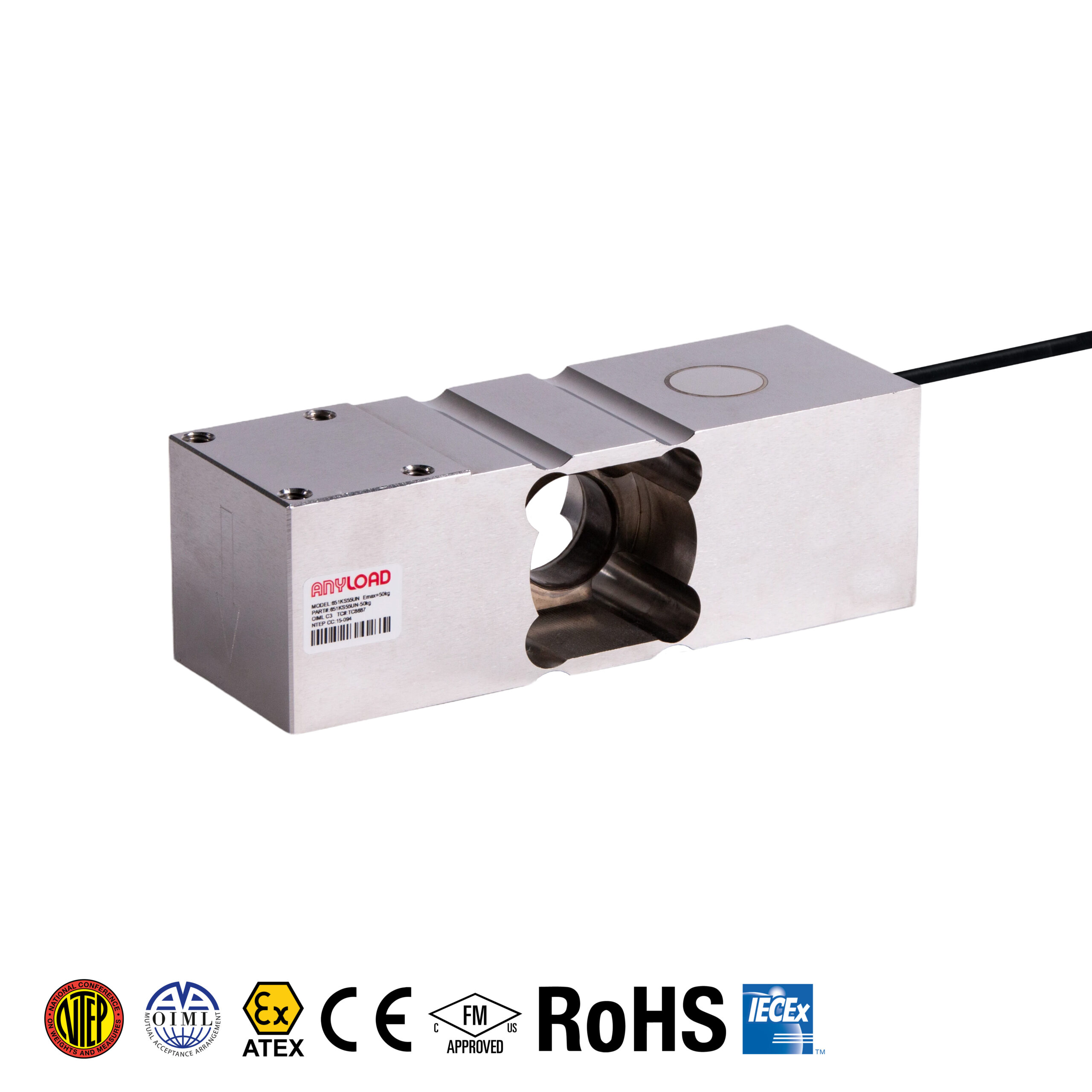

651KS55UN Single Point Load Cell
Features:
- Material: Stainless steel
- Rated Capacities: 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg
- Full Scale Output: 2mV/V ยฑ 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
| Rated Capacity | 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg |
| Reference Max. Platform Size | 610x700mm |
| Full Scale Output | 2mV/V ยฑ 0.25% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.03% |
| Repeatability | < ยฑ 0.02% |
| Hysteresis Error | < ยฑ 0.03% |
| Creep in 30 minutes | < ยฑ 0.02% |
| Input Resistance | 1100ฮฉ ยฑ 50ฮฉ |
| Output Resistance | 960ฮฉ ยฑ 50ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Coti Global | CG-50-1* |
| HBM | PW16 |
| Rice Lake | RL1260 |
| Vishay Tedea-Huntleigh | 1260 |
*Note: All models listed above are aluminum
