108MA Single Point Load Cell

Name: 108MA Single Point Load Cell
SKU: 1489
Availability: InStock

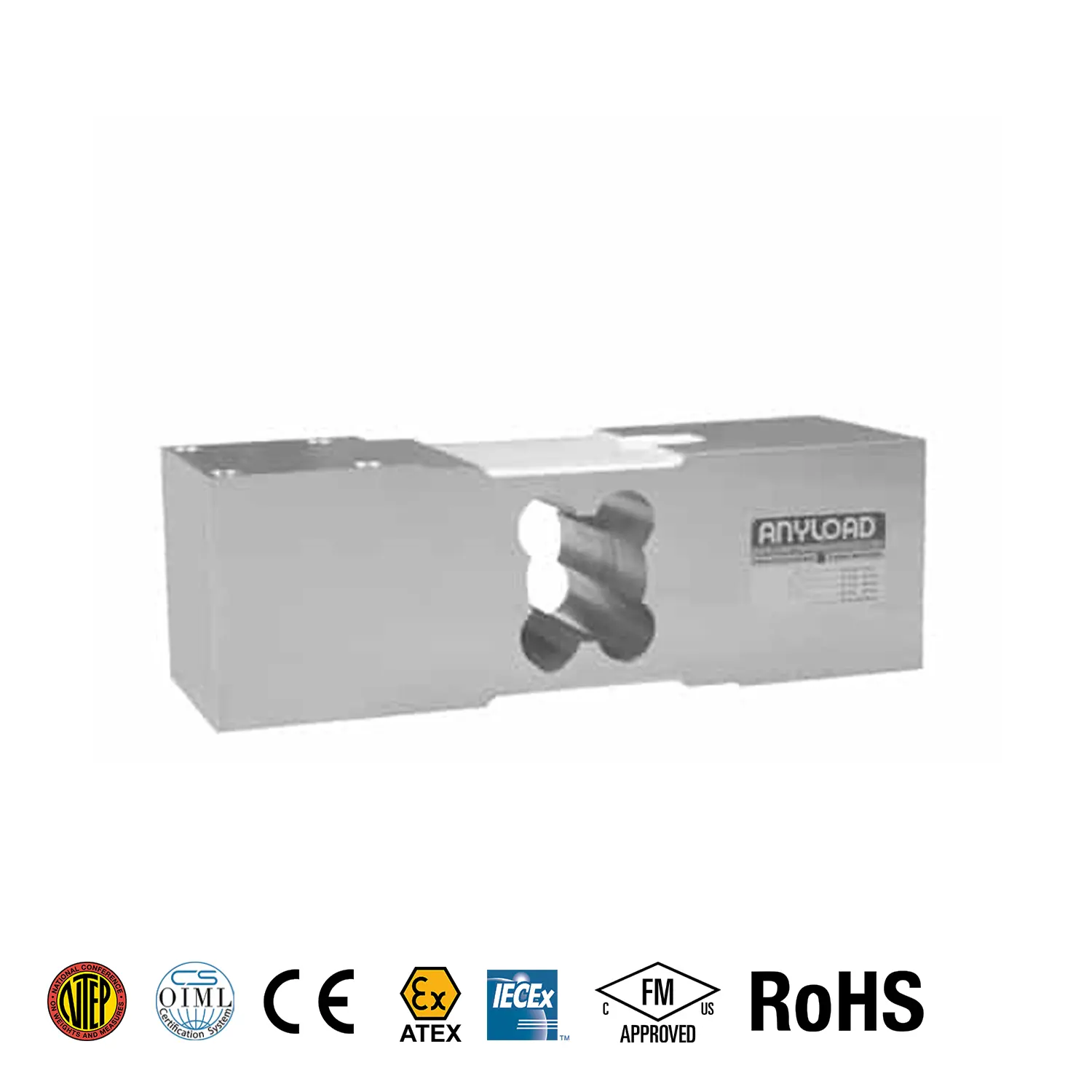

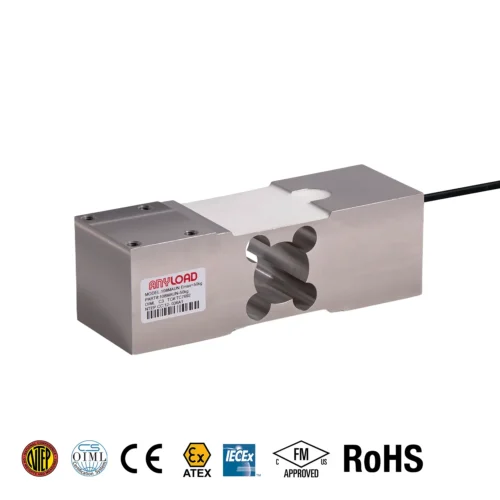

The ANYLOAD 108MA aluminum single point load cells designed for platform scale and weighing module applications requiring reliable, accurate force measurement across a broad range of capacities. Available in rated capacities from 50kg to 1000kg, both models share an identical form factor with clear anodized aluminum construction and IP66 environmental sealing, making them suitable for light industrial and commercial weighing environments.

The 108MA uses metric (M8) mounting threads allowing the load cell design configurations without changes to the mechanical envelope. The model is available in standard 1:3000 NTEP Class III S accuracy or the enhanced -A1 variant offering 1:4000 accuracy, supporting a wider range of legal-for-trade and precision weighing applications.

The 108MA carry NTEP, OIML, ATEX, FM, and IECEx approvals, making it suitable for use in legal-for-trade scales, hazardous area environments, and internationally certified weighing systems. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix designation.

If your application requires a compact, certified single point load cell for platform scales, retail weighing, or light industrial use, ANYLOAD can assist with selection, interchangeability confirmation, and system integration. Contact our team to discuss your capacity requirements, thread preference, accuracy class, or hazardous area certification needs.

Datasheet

Part Number

Clear

- +

Features

Rated Capacities: 50kg, 75kg, 100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg, 1000kg
Material: Aluminum, Clear Anodized
Thread: Metric
Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP66
50kg-500kg: NTEP 1:5 000 Class III, Single Cell;
635kg-660kg: NTEP 1:4 000 Class III, Single Cell
50kg-500kg: OIML-СS C6, Y=29 000;
635kg-660kg: OIML-СS C4, Y=4 000
CE and RoHS certified

Specifications

Rated Capacities	50kg, 75kg,100kg, 150kg, 200kg, 250kg, 300kg, 500kg, 635kg, 660kg, 1000kg
Reference Max. Platform Size	610mm x 700mm
Full Scale Output	2mV/V ± 10%
Zero Balance	± 0.02mV/V
Non-linearity	< ± 0.017%
Repeatability	< ± 0.017%
Hysteresis Error	< ± 0.017%
Creep in 30 minutes	< ± 0.017%
Input Resistance	415Ω ± 15Ω
Output Resistance	350Ω ± 3Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Temperature Effect on Sensitivity	< ±0.0012% of Cn/k
Temperature Effect on Zero Balance	< ± 0.0023% of Cn/k
Nominal Temperature Range	–10°C to 40°C/14°F to 104°F
Service Temperature Range	–18°C to 65°C/0°F to 149°F
Storage Temperature Range	-50°C to 85°C/-58°F to 185°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Environmentally sealed
IP Rating	IP66
