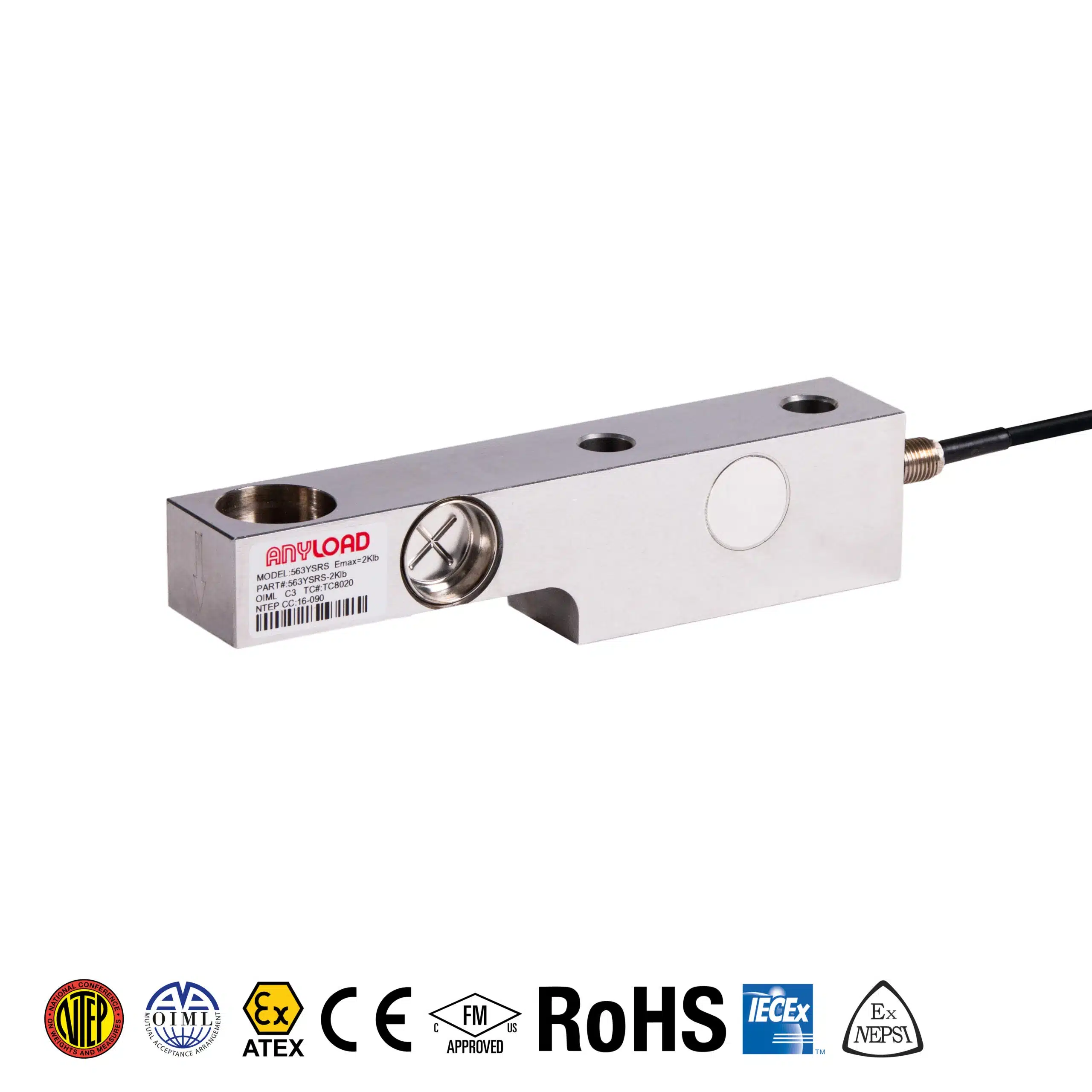

563YSRS Single Ended Beam Load Cell
Description:
The compact, low-profile design of this cost-effective single-ended beam load cell makes it suitable for medium capacity applications, such as platform scales, hopper scales, bench scales, etc. The IP68-class water- and corrosion-resistant stainless steel welded sealed construction ensures excellent performance under rugged conditions. The 563YSRS is interchangeable with HBM SB3, Rice Lake RLSSB, and Vishay Revere SSB.
Features:ย
- Material: Stainless steel
- Rated Capacities: 1Klb, 2Klb, 5Klb
- Full Scale Output: 2mV/V ยฑ 1%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP68
- 1Klb-2Klb: up to NTEP 1:5 000 Class III, Single Cell; NTEP 1:9 500 Class III, Multiple Cel
5Klb: up to NTEP 1:6 000 Class III, Single Cell; NTEP 1:10 000 Class III, Multiple Cell - Up to OIML MAA C5, Y=26 000
- CE, RoHS and Ex(NEPSI) certified
- ATEX, FM, IECEx available upon request
| Rated Capacities | 1Klb, 2Klb, 5Klb |
| Full Scale Output | 2mV/V ยฑ 1% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.023% |
| Repeatability | < ยฑ 0.023% |
| Hysteresis Error | < ยฑ 0.023% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 350ฮฉ ยฑ 7ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Service Temperature Range | -30ยฐC to 70ยฐC/-20ยฐF to 160ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Welded seal |
| IP Rating | IP68 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| Coti Global | CG-SB3 |
| HBM | SB3 |
| Rice Lake | RLSSB |
| Vishay Revere Transducers | SSB |
