563YSLB Single Ended Beam Load Cell, Stainless Steel, Environmentally Sealed, IP67

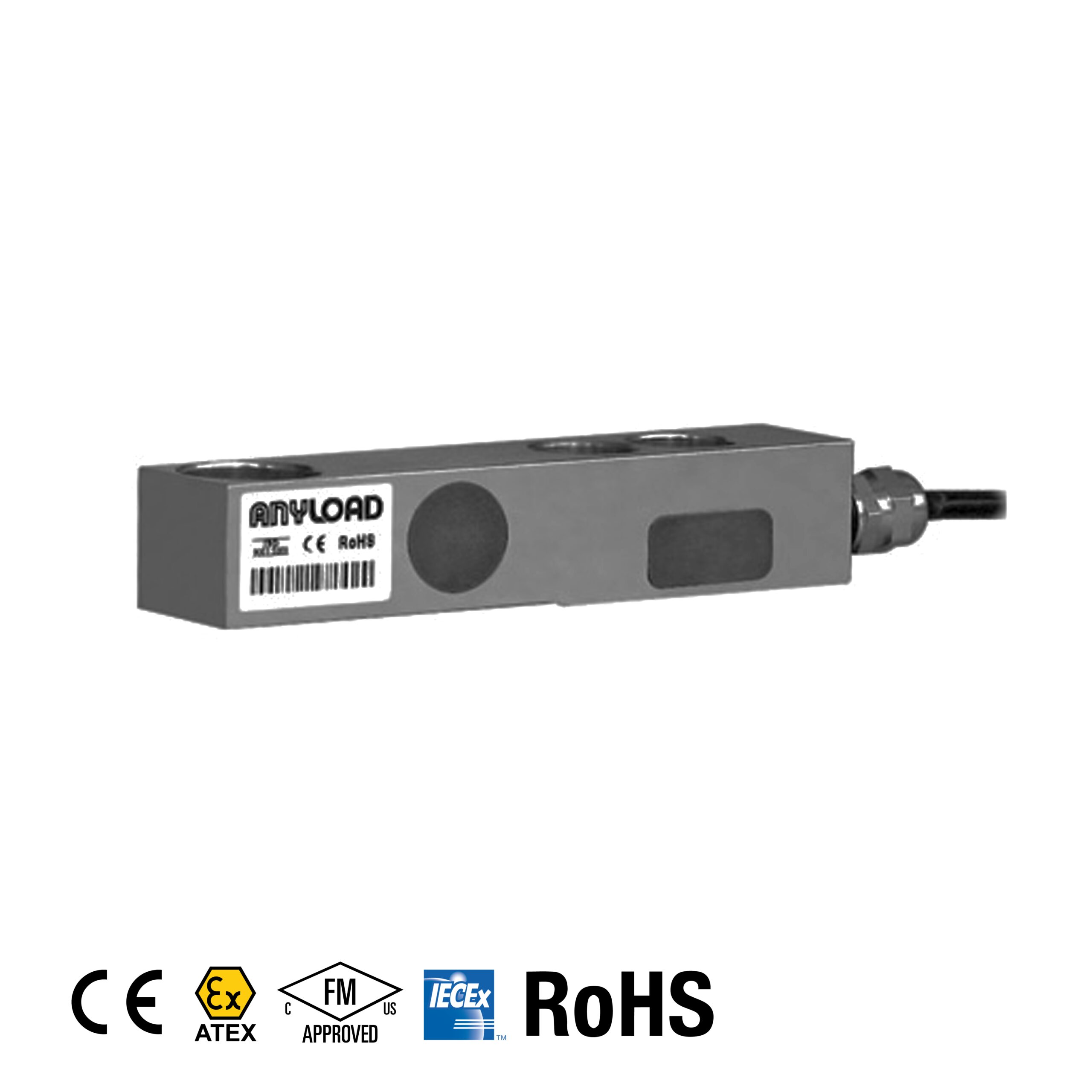

563YSLB Single Ended Beam Load Cell

Description:

This reliable single-ended beam load cell is a stainless steel IP67  water and corrosion-resistant compression weighing solution. The 563YSLB is a cost-effective interchangeable load cell with Cardinal LFB-500HMT, LFB-1000HMT, and LFB-2500HMT. Common applications include floor scales, tank scales, hopper scales, platform scales, and more.

Features:

  • Material: Stainless steel
  • Rated Capacities: 500lb, 1Klb, 2.5Klb
  • Full Scale Output: 1.85mV/V -1.9mV/V
  • Safe Overload: 150%
  • Breaking Overload:300%
  • IP Rating: IP67
  • CE, RoHS and Ex certified
Clear
Product Enquiry
SKU: N/A Category: Tag:
Rated Capacities 500lb, 1Klb, 2.5Klb
Full Scale Output 1.85-1.9mV/v
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.023%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.030%
Input Resistance 350Ω ± 7Ω
Output Resistance 350Ω ± 3Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Glue sealed
IP Rating IP67

pdf- Download data sheet

pdf- 563YSLB-(500-2500)lb

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model ANYLOAD Part Number
Cardinal LFB-500HMT* 563YSLB-500lb
Cardinal LFB-1000HMT* 563YSLB-1Klb
Cardinal LFB-2500HMT* 563YSLB-2.5Klb
Coti Global CG-HMT



*Refer to H2 dimension on diagram on data sheet
• Cardinal LFB-500HMT, LFB-1000HMT, LFB-2500HMT have a sunken hole depth of 9.53mm
• ANYLOAD 563YSLB-500lb, 563YSLB-1Klb, 563YSLB-2.5Klb have a sunken hole depth of 14.9mm
