563YSLB Single Ended Beam Load Cell

563YSLB Célula de carga monohaz

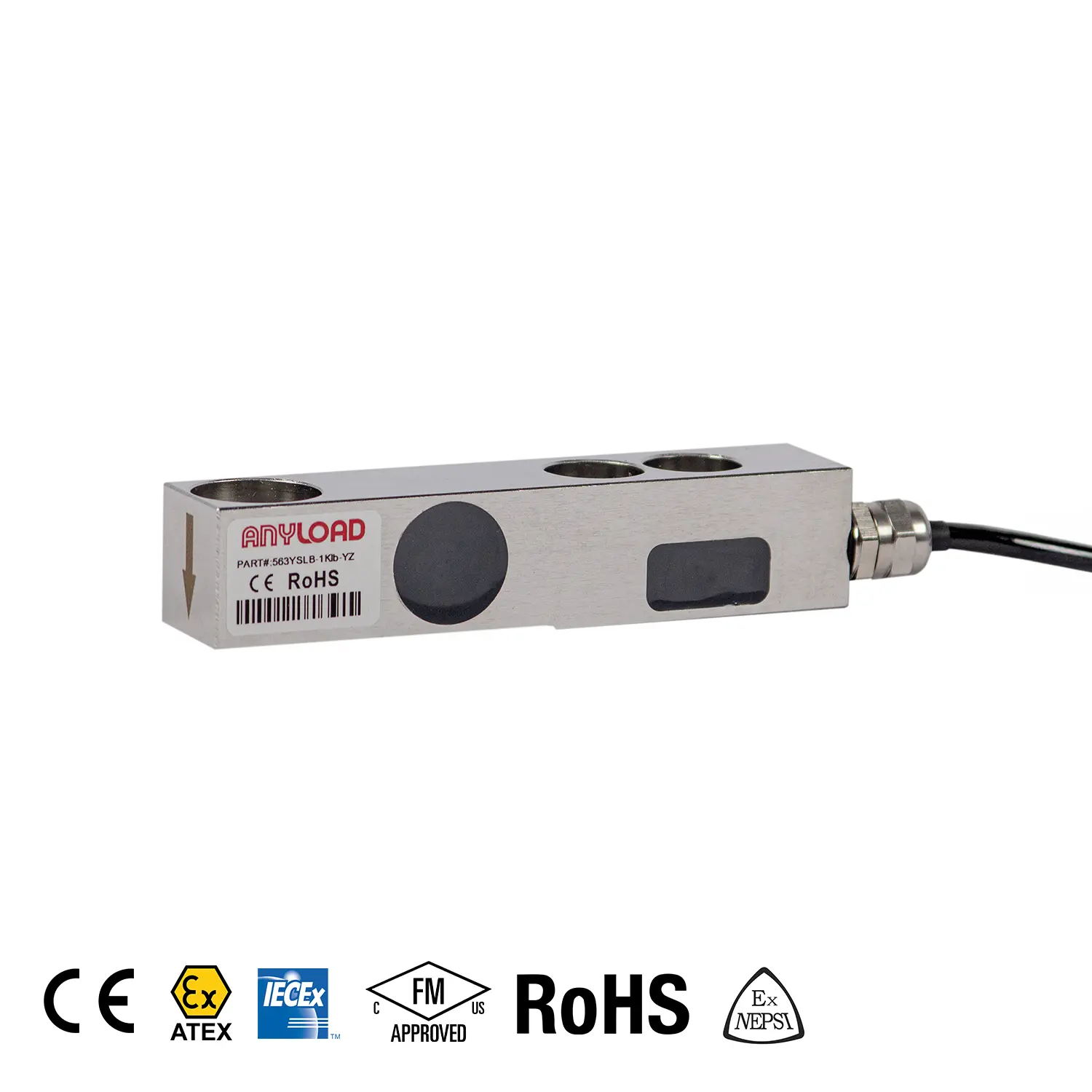

The ANYLOAD 563YSLB is a single-ended beam load cell machined from 2Cr13 stainless steel, designed for platform scales, bench scales, and general industrial weighing applications requiring a compact, environmentally sealed sensing element. Available in rated capacities of 500lb, 1Klb, and 2.5Klb (226.8 to 1,134 kg), the 563YSLB delivers a full scale output of 1.85–1.9 mV/V with non-linearity, repeatability, and hysteresis all held within ±0.023%, making it well suited for applications where consistent and repeatable measurement is essential.

The cell is rated IP67 environmentally sealed, with a compensated temperature range of -10°C to 50°C (14°F to 122°F), a safe overload capacity of 150% of full scale, and a breaking overload of 300%. Its compact form factor — 4.72 inches in length with M12×1.75 threaded mounting — allows straightforward integration into OEM scale platforms and custom weighing fixtures. The 563YSLB is a direct interchangeable replacement for Cardinal LFB-series and Coti Global CG-HMT load cells, simplifying drop-in retrofits for service and distribution applications.

ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for use in hazardous and explosive environments. The 563YSLB is RoHS compliant and CE marked, and is suitable for deployment across legal-for-trade and industrial weighing systems in food processing, agriculture, logistics, and general manufacturing. Contact ANYLOAD to discuss capacity requirements, approval specifications, or volume ordering.

Más información

Ficha de datos
- +

Características

  • Rated capacities: 500lb, 1Klb, 2.5Klb
  • 2Cr13 stainless steel construction for enhanced durability
  • Environmentally sealed to IP67 for harsh environments
  • Sobrecarga segura: 150% del fondo de escala
  • Sobrecarga de rotura: 300% del fondo de escala
  • FM/ ATEX/ IECEx certified

Especificaciones

Capacidades nominales 500lb, 1Klb, 2.5Klb
Salida a fondo de escala 1.85–1.9 mV/V
Saldo cero ± 0.02 mV/V
No linealidad < ± 0,023%
Repetibilidad < ± 0,023%
Error de histéresis < ± 0,023%
Creep in 30 min. < ± 0,030%
Resistencia de entrada 350Ω ± 7
Resistencia de salida 350Ω ± 3
Elemento Material Acero inoxidable 2Cr13
Excitación recomendada 10 V (15 V máximo)
Resistencia del aislamiento >2 [50V CC] GΩ
Rango de temperatura compensado -10°C a 50°C / 14°F a 122°F
Sobrecarga segura 150% del fondo de escala
Romper la sobrecarga 300% del fondo de escala
Tipo de junta / grado IP Environmentally Sealed / IP67

Archivos técnicos


Datasheet – 563YSLB

Dibujos 3D


563YSLB-(500-2500)lb

Homologaciones


Certificado de conformidad CE


Certificado de conformidad RoHS


Certificado de conformidad NTEP


Certificado de conformidad de protección contra explosiones

Intercambiable

Cardenal LFB-500HMT* ANYLOAD (563YSLB-500lb)
Cardenal LFB-1000HMT* ANYLOAD (563YSLB-1Klb)
Cardenal LFB-2500HMT* ANYLOAD (563YSLB-2.5Klb)
Cardenal CG-HMT

*Refer to H2 dimension on diagram on data sheet
– Cardinal LFB-500HMT, LFB-1000HMT, LFB-2500HMT have a sunken hole depth of 9.53mm
– ANYLOAD 563YSLB-500lb, 563YSLB-1Klb, 563YSLB-2.5Klb have a sunken hole depth of 14.9mm
