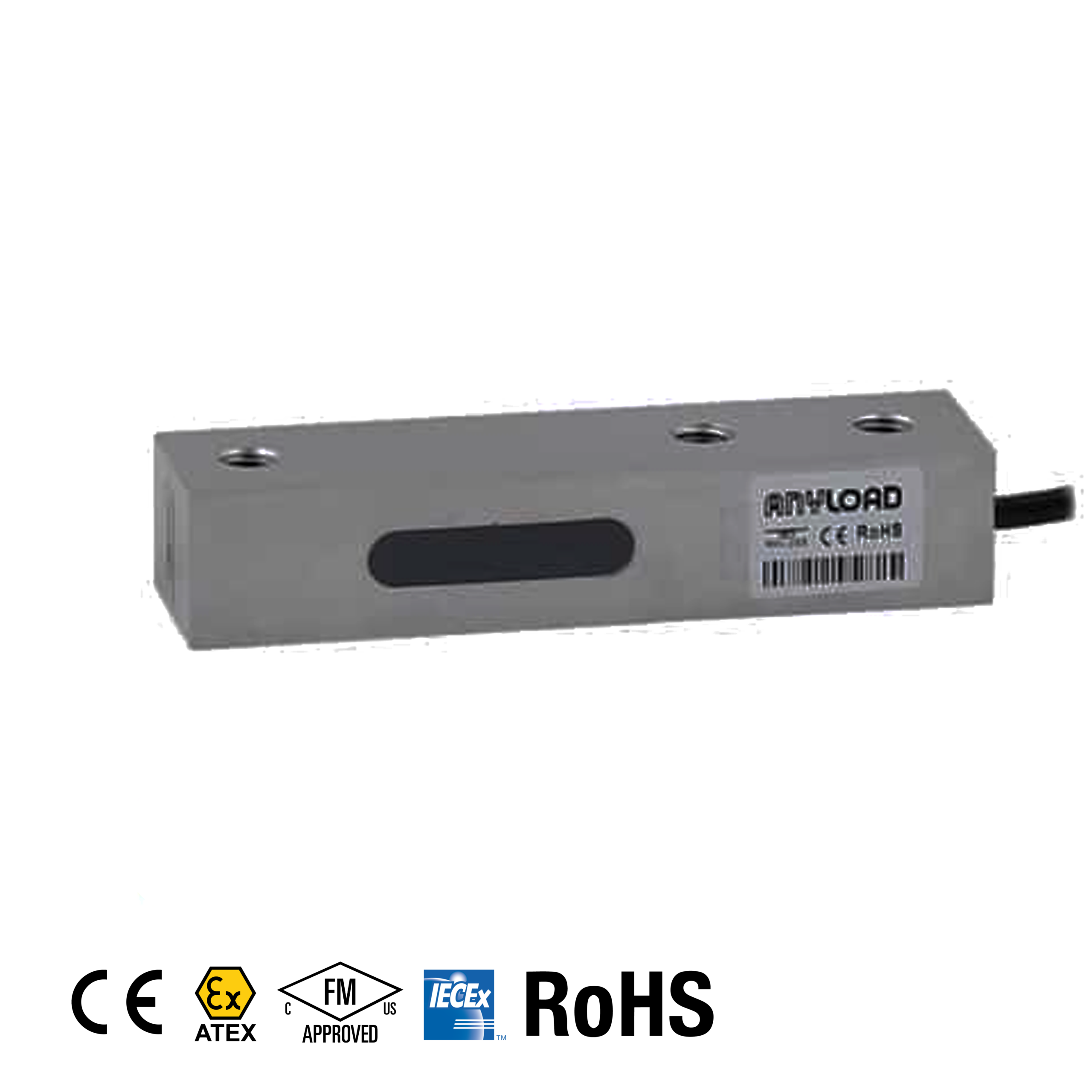

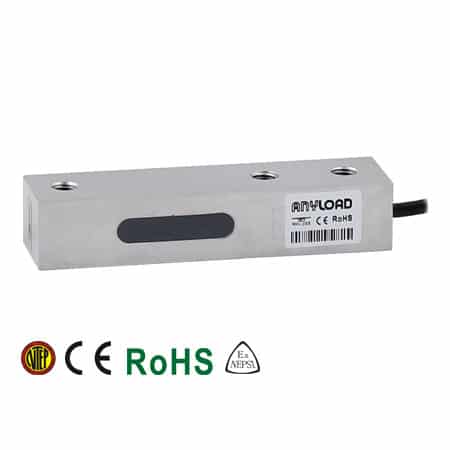

563YSBK Single Ended Beam Load Cell, Stainless Steel, Environmentally Sealed, IP67

563YSBK Single Ended Beam Load Cell

  • Material: Stainless steel
  • Thread: Metric
  • Rated Capacities: 200kg, 500kg, 1t, 2t
  • Full Scale Output: 2mV/V ± 0.1%
  • Safe Overload: 150%
  • Breaking Overload: 300%
  • IP Rating: IP67
  • CE, RoHS and ExNepsi certified
Clear
Product Enquiry
SKU: N/A Categories: ,
Rated Capacities 200kg, 500kg, 1t, 2t
Full Scale Output 2mV/V ± 0.1%
Zero Balance ± 0.02mV/V
Non-linearity < ± 0.023%
Repeatability < ± 0.017%
Hysteresis Error < ± 0.023%
Creep in 30 minutes < ± 0.023%
Bridge Resistance 1100Ω ± 50Ω
Output Resistance 1000Ω ± 5Ω
Recommended Excitation 10V (15V Maximum)
Insulation Resistance > 2GΩ (50V DC)
Temperature Effect on Sensitivity < ±0.0012% of Cn/k
Temperature Effect on Zero Balance < ± 0.0040% of Cn/k
Compensated Temperature Range -10°C to 50°C/14°F to 122°F
Service Temperature Range -30°C to 70°C/-20°F to 160°F
Storage Temperature Range -50°C to 85°C/-58°F to 185°F
Safe Overload 150% of full scale
Breaking Overload 300% of full scale
Seal Type Environmentally sealed
IP Rating IP67

pdf- Download data sheet

pdf- 563YSBK-(200-500)kg

pdf- 563YSBK-(1-2)t

Note: You may need a software that can open/view STEP files.

pdf- NTEP Certificate of Conformance

pdf- CE Certificate of Conformity

pdf- RoHS Certificate of Conformity

pdf- Explosion Protection Certificate of Conformity

Manufacturer Model
Flintec BK2
