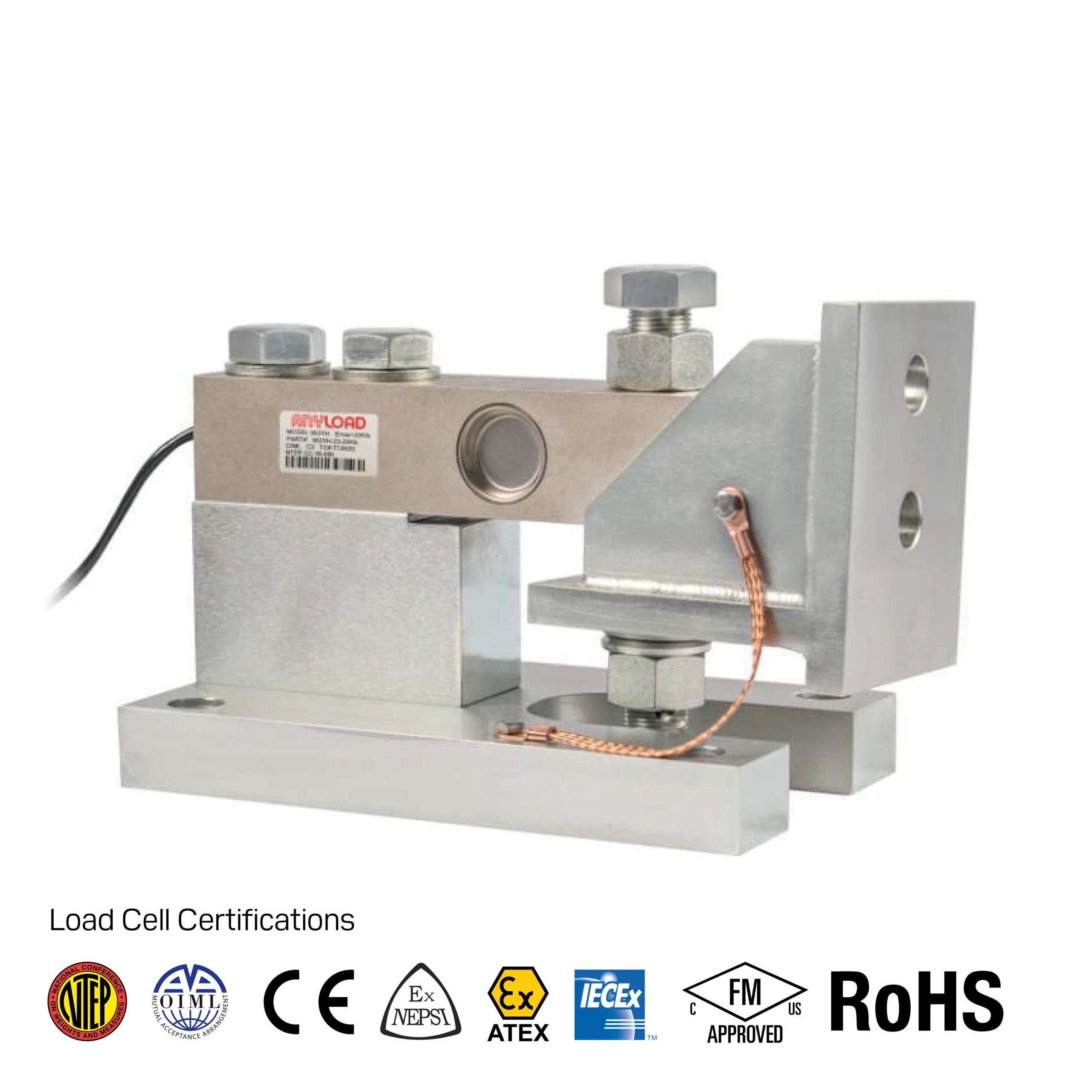

The ANYLOAD 563YHM7 is a compression weigh module designed for industrial tank, silo, and storage bin weighing applications. Available in 15Klb and 20Klb capacities, it accommodates ANYLOAD 563YH and 563YH-23 single ended beam load cells. Its integrated self-jacking mechanism allows installers to lift an existing structure without external lifting equipment, making it particularly suitable for retrofitting already-installed bins and tanks. The module features a spherical washer assembly to keep the load centered, along with 50% rated side-load and uplift protection. The load cell is sold separately.
Designed to simplify installation and equipment integration, the 563YHM7 mounts parallel to the weighed leg to achieve a low overall mounting height. Its adjustable pedestal screw provides a straightforward method for lifting the structure, setting the installation height, and levelling the weighing assembly. This configuration reduces installation complexity and eliminates the need for separate external lifting equipment. Engineers, system integrators, and installation technicians can use the module to retrofit existing storage vessels while maintaining a compact weighing configuration.
The 563YHM7 is particularly suited to grain bins, chemical storage tanks, liquid storage vessels, and other industrial bulk storage applications where reliable weight monitoring and straightforward installation are essential. When paired with the compatible 563YH or 563YH-23 load cell, it provides a practical solution for upgrading existing structures into weighing systems without extensive structural modifications.
| Rated Capacities | 15Klb-20Klb |
|---|
