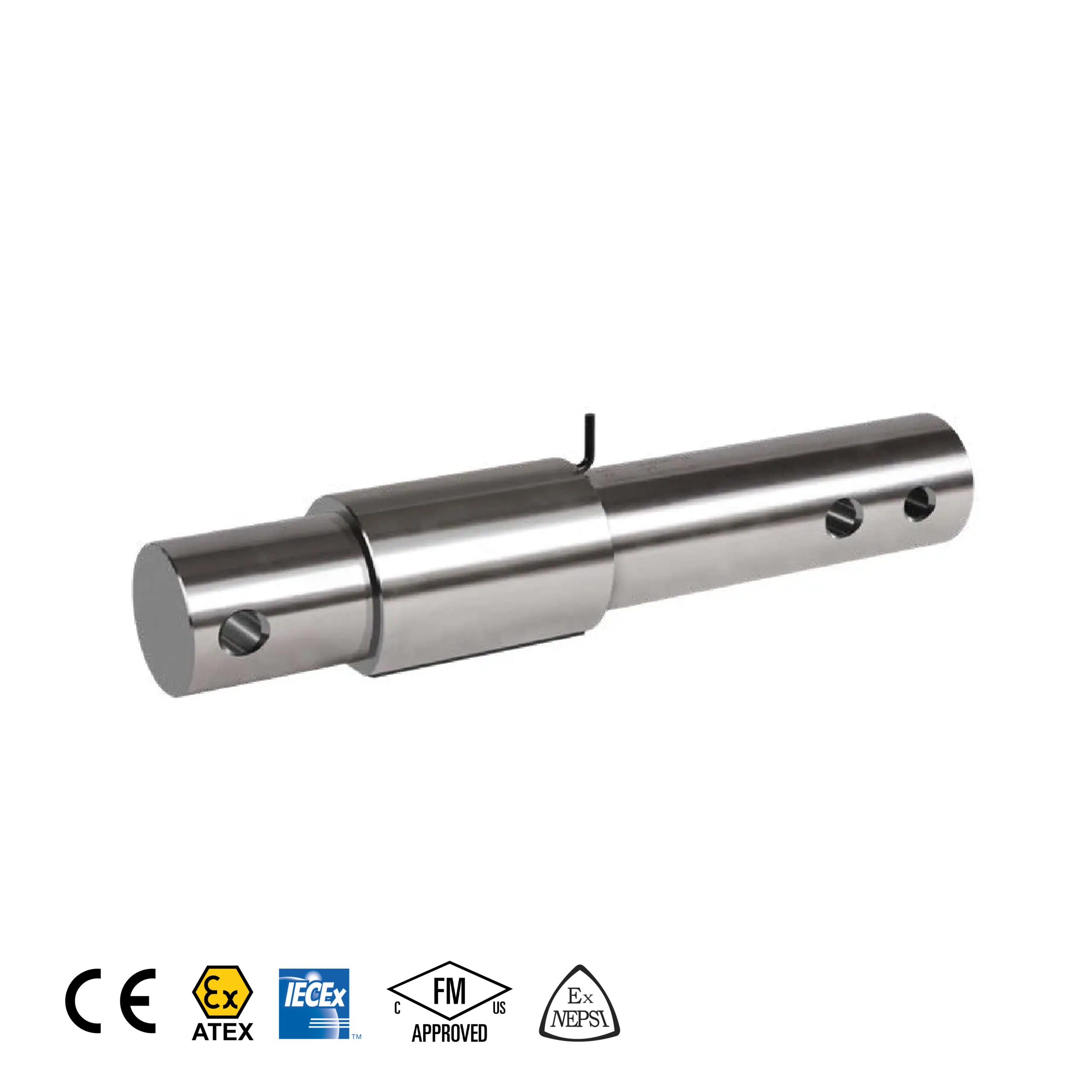

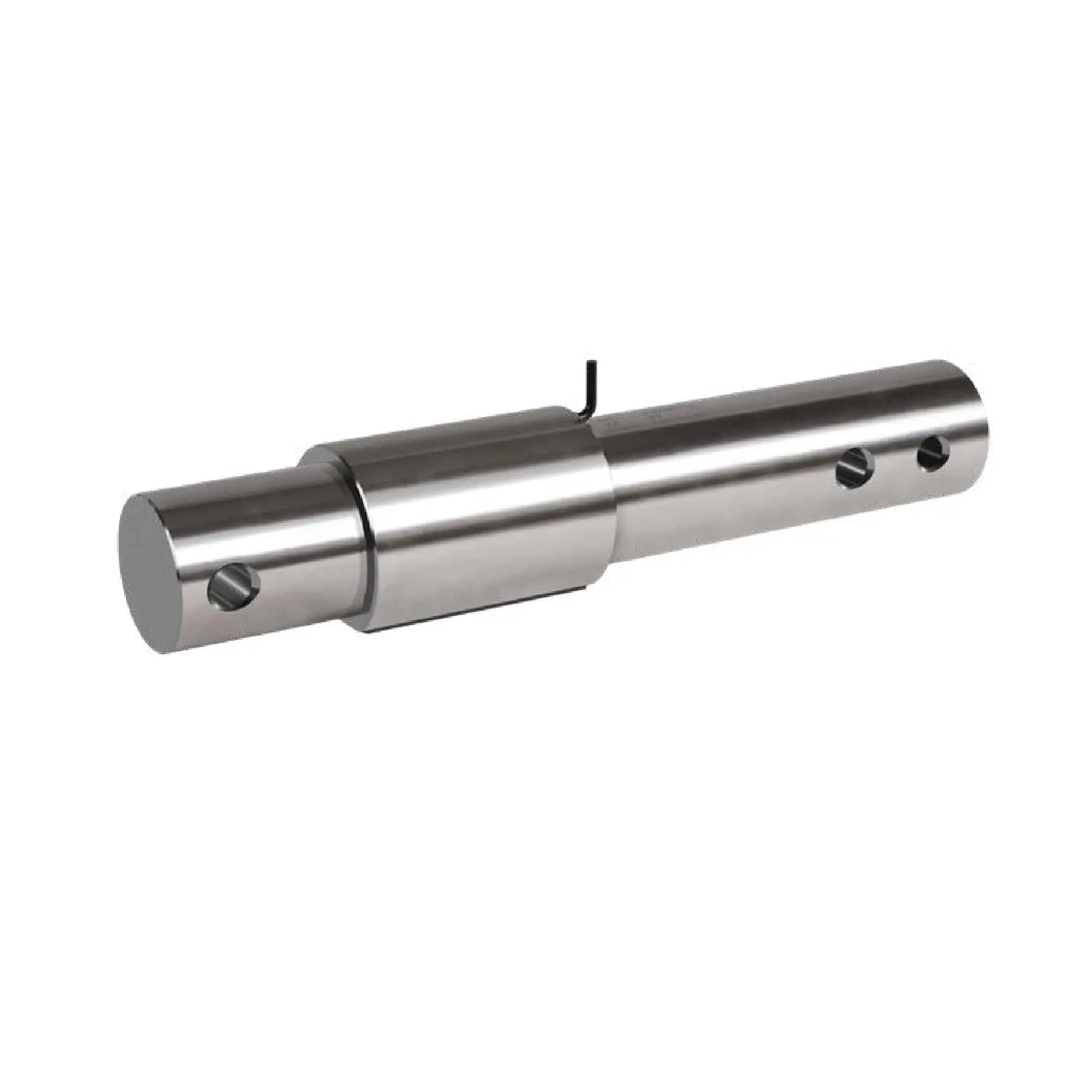

563WH-24B Single Ended Beam Load Cell
The ANYLOAD 563WH-24B is a single-ended beam load cell constructed from nickel-plated alloy steel, rated at 23Klb capacity. Designed for industrial weighing applications requiring a compact, environmentally sealed transducer, the 563WH-24B delivers a full scale output of 1.15 mV/V ±1% with high accuracy performance including non-linearity and hysteresis error both under ±0.05%, and repeatability under ±0.02%. Its IP67 environmental seal makes it suitable for use in wet, dusty, or otherwise demanding industrial environments.
The 563WH-24B features a compensated temperature range of -10°C – 50°C (14°F – 122°F), with a safe overload rating of 150% and ultimate breaking overload of 300% of full scale, providing strong protection against accidental overloading in field installations. With input resistance of 375 Ω ±25 and output resistance of 350 Ω ±3, the load cell is compatible with standard instrumentation and weighing indicators. The recommended excitation is 10V DC with a 15V maximum.
Available in an ATEX, FM, and IECEx approved hazardous area version (563WH-24B-Ex), the load cell meets RoHS compliance and carries CE certification, making it suitable for deployments in both general industrial and potentially explosive atmospheres. The 563WH-24B is well suited for platform scales, tank and hopper weighing, industrial process weighing, and OEM scale system integration where a high-capacity single-ended beam configuration is required.
Features
- Rated capacity: 23Klb
- Alloy steel, nickel plated construction for enhanced durability
- Environmentally sealed to IP67 for harsh environments
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- FM/ ATEX/ IECEx certified optional
Specifications
| Rated Capacities | 23Klb |
|---|---|
| Full Scale Output | 1.15 mV/V ± 1% |
| Zero Balance | ± 0.02 mV/V |
| Non-linearity | < ± 0.05% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.05% |
| Creep in 30 min. | < ± 0.03% |
| Input Resistance | 375 Ω ± 25 |
| Output Resistance | 350 Ω ± 3 |
| Element Material | Alloy Steel, Nickel Plated |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2 [50V DC] GΩ |
| Compensated Temperature Range | 14°F to 122°F / -10°C to 50°C |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
