563WH-24A Single Ended Beam Load Cell

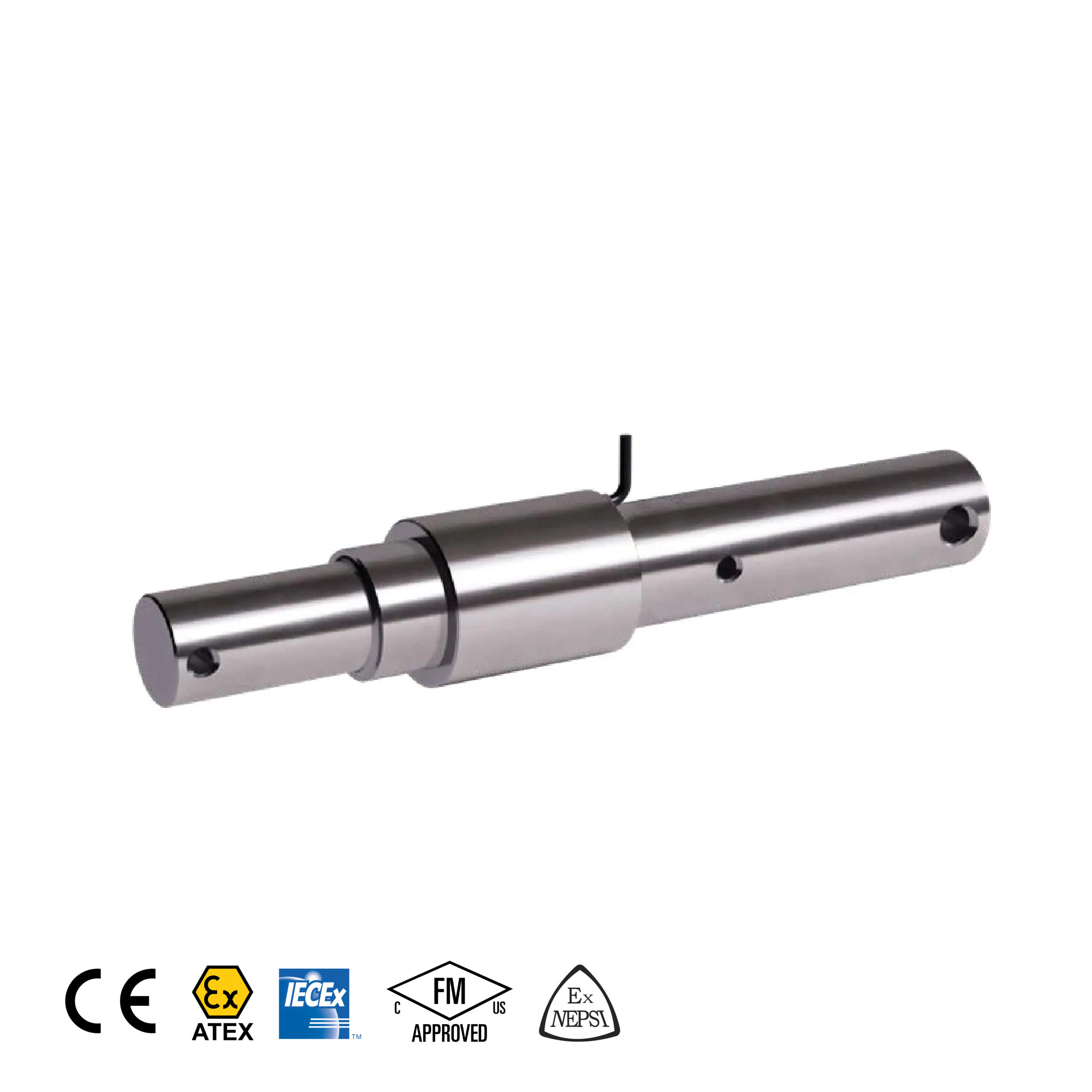

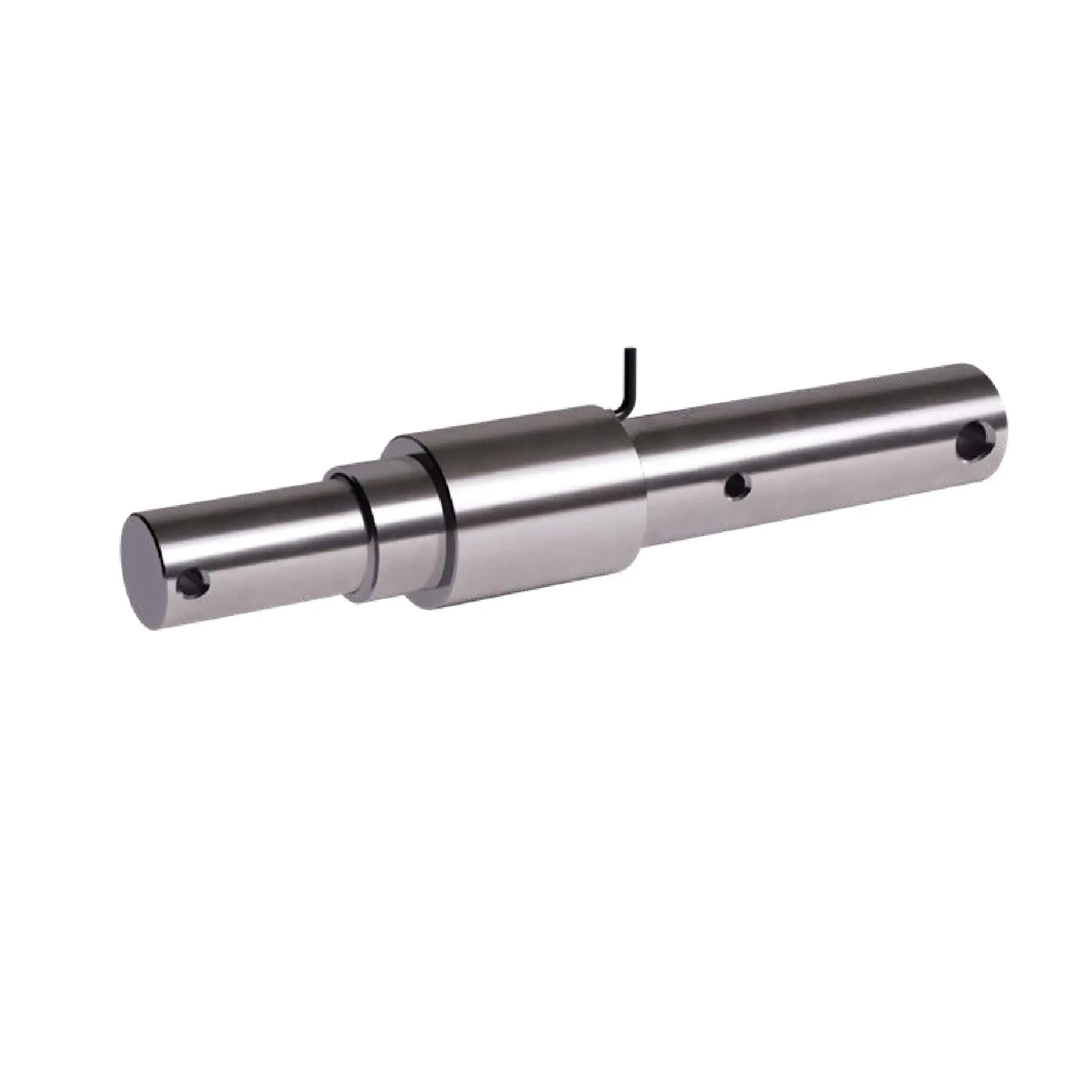

The ANYLOAD 563WH-24A is a single ended beam load cell constructed from nickel-plated alloy steel, rated at 10Klb capacity. Designed for demanding industrial weighing applications, it delivers a full scale output of 0.5 mV/V with non-linearity and hysteresis error both under ±0.05%, making it well suited for platform scales, floor scales, and industrial weighing systems where consistent, repeatable measurement is essential.
The 563WH-24A features an environmentally sealed IP67 rating, ensuring reliable performance in wet, dusty, or harsh plant environments. With a compensated temperature range of -10°C to 50°C (14°F to 122°F), a safe overload of 150% and breaking overload of 300% of full scale, the load cell is built to withstand the mechanical stresses common in process weighing and industrial platform applications. Input resistance is 375 Ω ±25 and output resistance is 350 Ω ±3, with a recommended excitation of 10V (15V maximum).
The 563WH-24A is available in ATEX, FM, and IECEx approved versions (carrying the “-Ex” suffix), making it suitable for hazardous area installations in industries such as oil and gas, chemical processing, and mining. The unit ships with a 10-meter cable and is RoHS and CE compliant, supporting broad international deployment across industrial and commercial weighing installations.
For applications requiring a robust single ended beam load cell with hazardous area certification and proven accuracy, the ANYLOAD 563WH-24A offers a reliable, well-supported solution. Contact ANYLOAD to discuss system integration, mounting hardware compatibility, or custom configurations for your specific platform or process weighing application.
Features
- Rated capacities: 10Klb
- Alloy steel, nickel plated construction for enhanced durability
- Environmentally sealed to IP67 for harsh environments
- Safe Overload: 150% of full scale
- Breaking Overload: 300% of full scale
- FM/ ATEX/ IECEx certified optional
Specifications
| Rated Capacities | 10Klb |
|---|---|
| Full Scale Output | 0.5 mV/V ± 2% |
| Zero Balance | ± 0.02 mV/V |
| Non-linearity | < ± 0.05% |
| Repeatability | < ± 0.02% |
| Hysteresis Error | < ± 0.05% |
| Creep in 30 min. | < ± 0.03% |
| Input Resistance | 375 Ω ± 25 |
| Output Resistance | 350 Ω ± 3 |
| Element Material | Alloy Steel, Nickel Plated |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | >2[50V DC] GΩ |
| Compensated Temperature Range | -10°C to 50°C / 14°F to 122°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type / IP Rating | Environmentally Sealed / IP67 |
