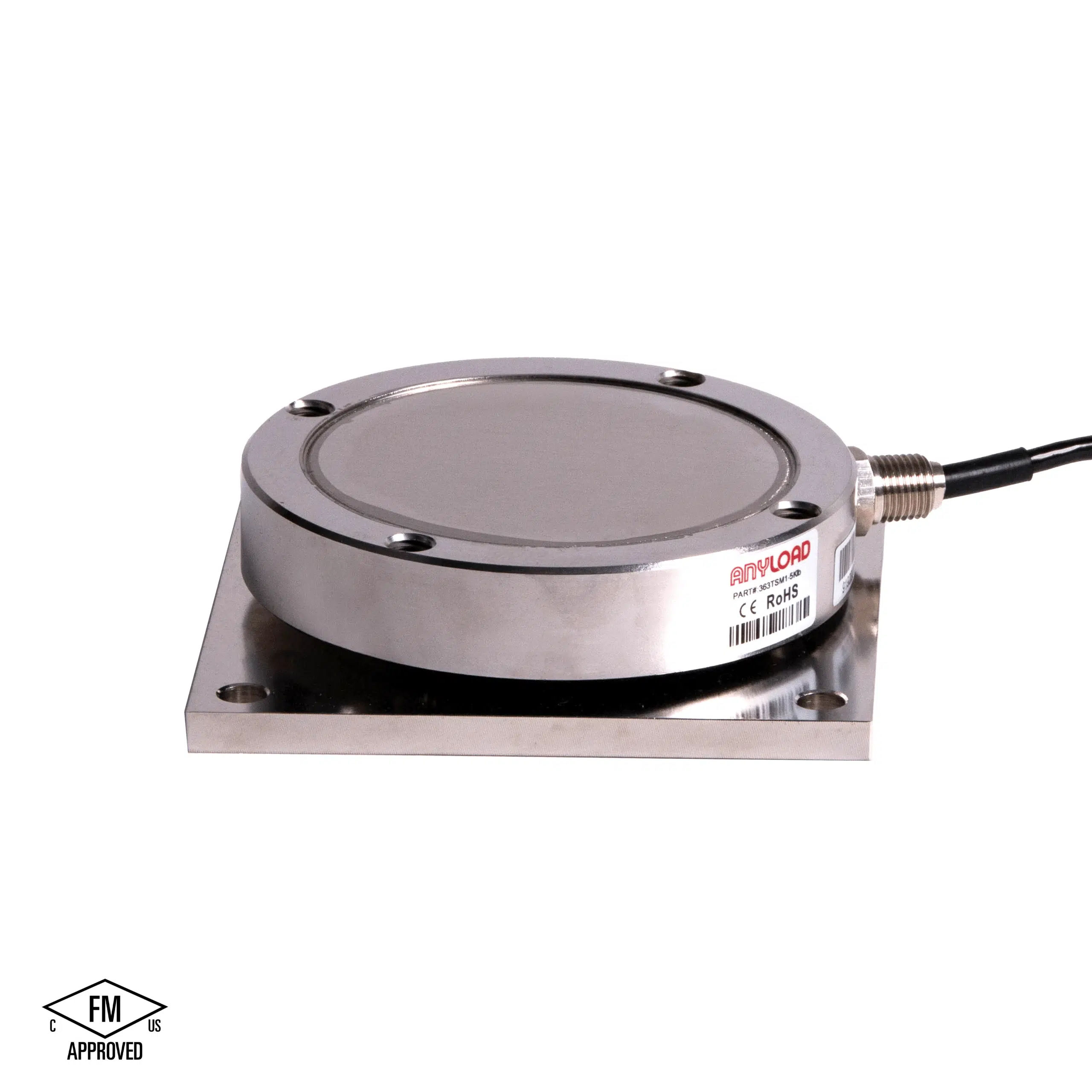

363TSM1 ThinWeigh Compression Weigh Module

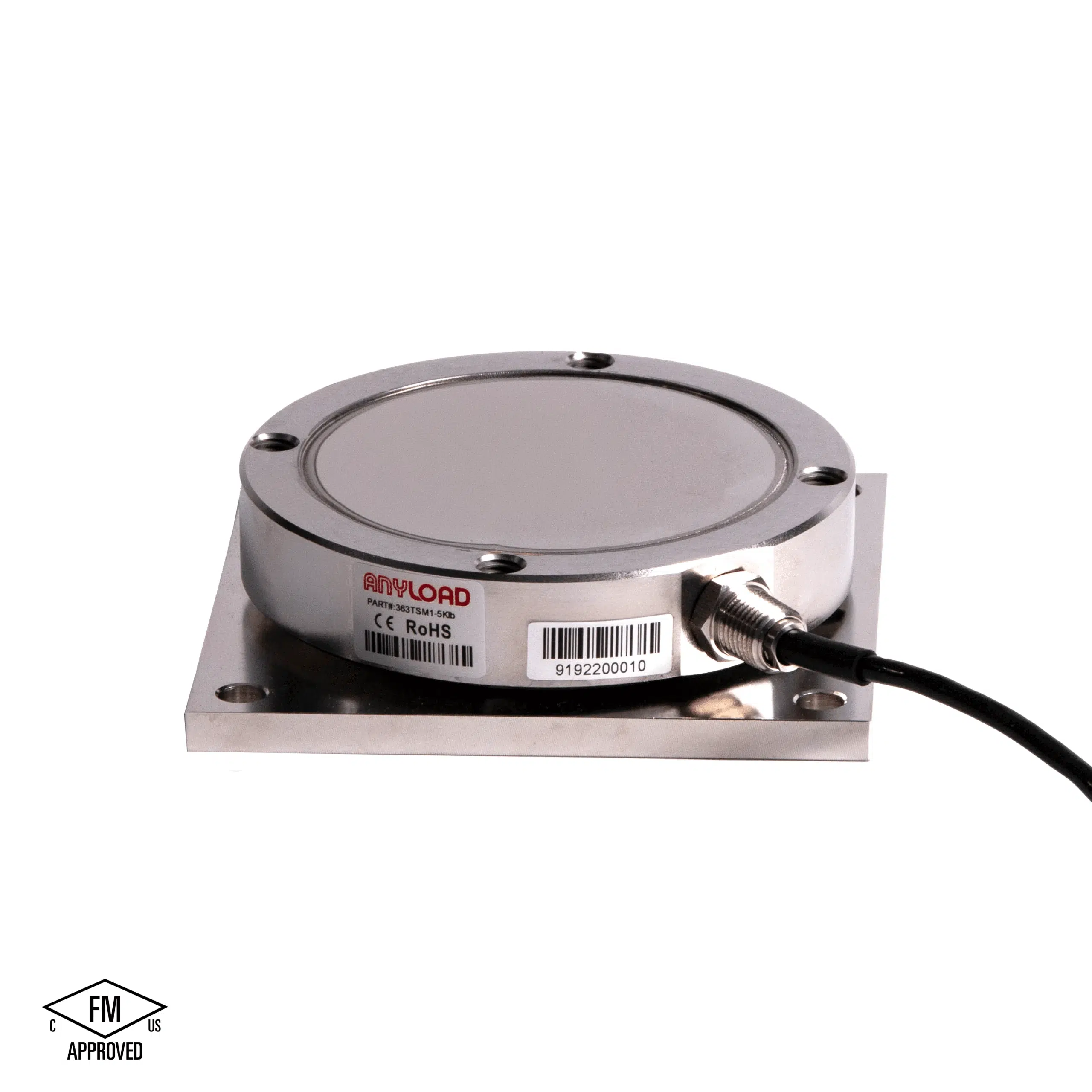

363TSM1 ThinWeigh Compression Weigh Module - Image 2

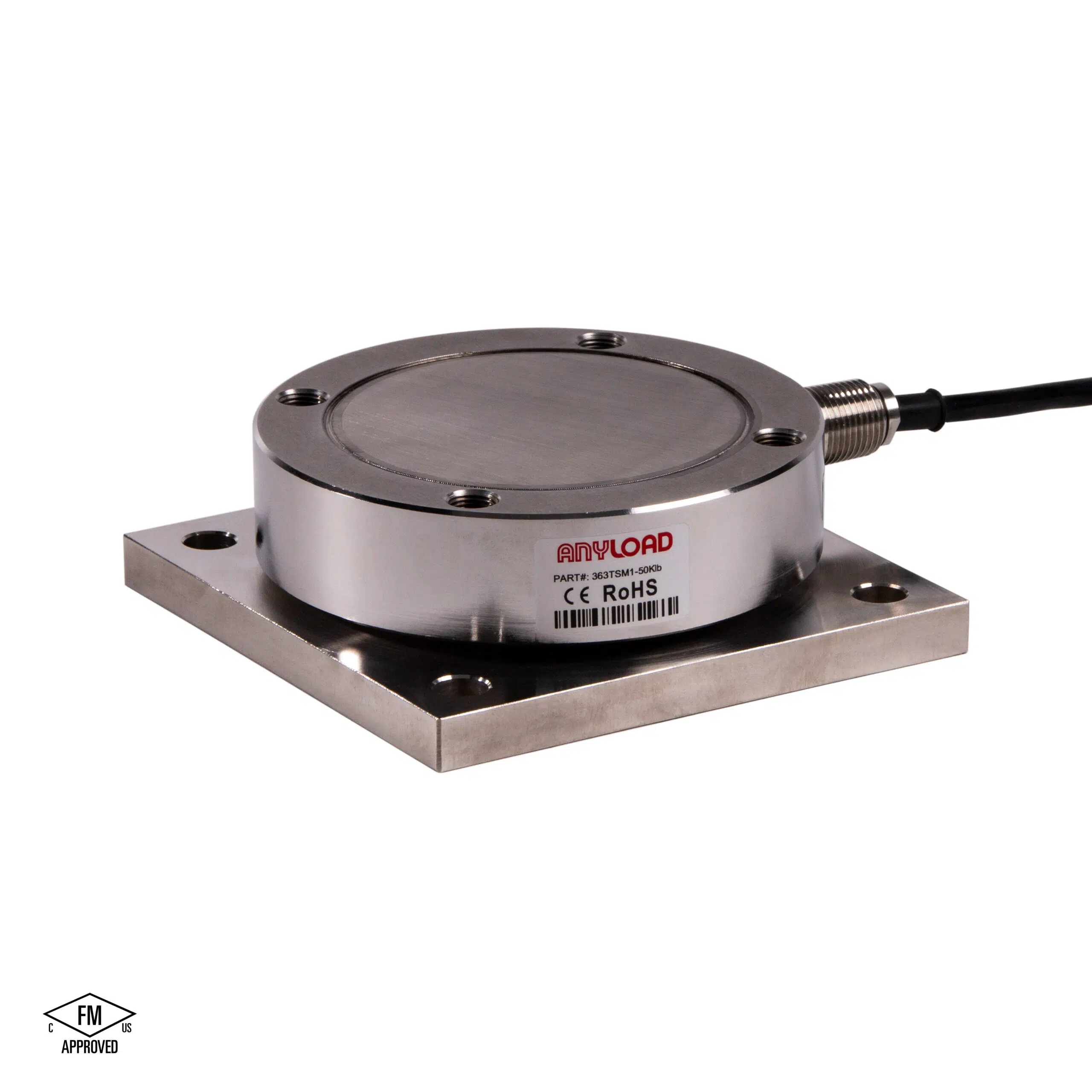

363TSM1 ThinWeigh Compression Weigh Module

Name: 363TSM1 ThinWeigh Compression Weigh Module
SKU: 14286
Availability: InStock

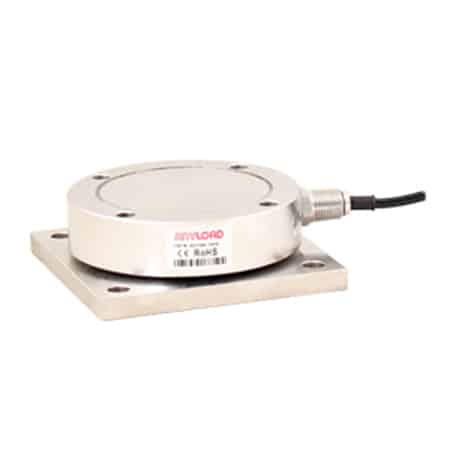

The ANYLOAD 363TSM1 ThinWeigh is a US-patented, super thin, low-profile compression weigh module constructed from high-grade 17-4PH stainless steel with a hermetic IP68/IP69K seal. Its exceptionally compact design makes it ideal for space-constrained static weighing applications including tanks, hoppers, silos, and platform scales where vertical clearance is limited. Available in capacities ranging from 500kg – 100t (1Klb – 200Klb), the 363TSM1 delivers a full scale output of 3.0 mV/V ±0.25% with repeatability under ±0.05%, offering reliable and precise measurement across a wide range of industrial and commercial weighing installations.

The module’s patented ThinWeigh design eliminates the need for pre-assembly before installation, reducing setup time on-site. Built-in uplift protection and side load protection—each rated at 50% of full scale—provide structural resilience in dynamic or uneven loading environments. The 360° thermal expansion accommodation prevents measurement error due to temperature-induced structural movement, making the 363TSM1 suitable for both indoor and outdoor installations across a compensated temperature range of -10°C to 50°C (14°F to 122°F).

The 363TSM1 is available with cable lengths of 6m or 10m depending on rated capacity, and is offered alongside an optional separately ordered mounting top plate (TP363TSM1 series) for complete installation flexibility. For alloy steel construction requirements, the 363THM1 variant is available as an alternative. The weigh module is well suited for OEM integrators, scale manufacturers, and industrial facilities requiring durable, compact compression weighing solutions for permanent or retrofit installations.

If your application requires low-profile compression weighing for tanks, hoppers, silos, or platform scales, ANYLOAD can assist with module selection, mounting plate configuration, and system integration. Our team supports scale builders and industrial end-users in developing complete weighing solutions tailored to specific load capacities, space constraints, and environmental conditions. Contact us to discuss your application or customization needs.

Datasheet

Brochure

Part Number

Clear

- +

Features

Rated capacities: 1Klb – 200Klb / 0.5t – 100t
Super thin, very low profile, excellent for limited space applications such as tank, hopper and silo weighing
High grade stainless steel, hermetic seal, IP68/IP69K
Allows for 360° thermal expansion
Uplift protection and side load protection
No need assembly before installation

Specifications

Rated Capacities	1Klb – 200Klb / 0.5t – 100t
Full Scale Output	3.0 mV/V ± 0.25%
Zero Balance	Cap. 1Klb–2.5Klb / 0.5t–1.2t: ≤ ± 0.04 mV/V Cap. ≥ 5Klb / 2.5t: ≤ ± 0.02 mV/V
Non-linearity	Cap. 1Klb–2.5Klb / 0.5t–1.2t: < ± 0.05% Cap. 5Klb–50Klb / 2.5t–25t: < ± 0.1% or < ± 0.3% Cap. ≥ 100Klb / 50t: < ± 0.3%
Repeatability	< ± 0.05%
Hysteresis Error	Cap. 1Klb–2.5Klb / 0.5t–1.2t: < ± 0.05% Cap. 5Klb–50Klb / 2.5t–25t: < ± 0.1% or < ± 0.3% Cap. ≥ 100Klb / 50t: < ± 0.3%
Creep in 30 min.	< ± 0.05%
Input Resistance	700Ω ± 10
Output Resistance	700Ω ± 5
Element Material	17-4PH Stainless Steel
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	>2 [50V DC] GΩ
Thermal Expansion / Contraction or Minor Misalignment	Cap. 5Klb–10Klb / 0.5t–5t: 2mm Cap. 25Klb–200Klb / 12t–100t: 3mm
Compensated Temperature Range	14°F – 122°F / -10°C – 50°C
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Up Lift Protection	50% of full scale
Side Load Protection	50% of full scale
Seal Type / IP Rating	Hermetic Seal / IP68/IP69K

Specifications

Rated Capacity	Part Number
1Klb – 2.5Klb	TP363TSM1 (1Klb – 2.5Klb)
5Klb – 10Klb	TP363TSM1 (5Klb – 10Klb)
25Klb – 50Klb	TP363TSM1 (25Klb – 50Klb)
100Klb	TP363TSM1 (100Klb)
200Klb	TP363TSM1 (200Klb)
