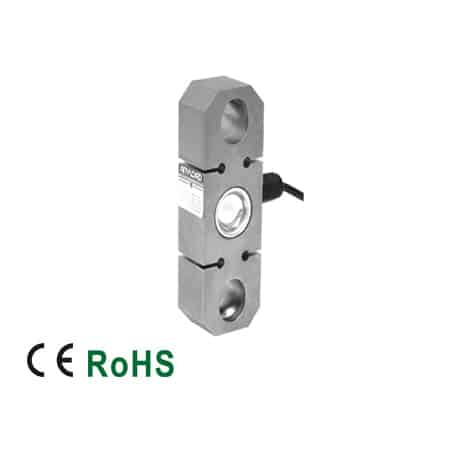

110AH Tension Link Load Cell
Description:
Leading the industry in tension link innovation, the 110AH offers superior accuracy and heavy-duty reliability. The IP67 alloy steel construction with a breaking overload of 400% provides an excellent safety factor and years of problem-free service. Commonly used for crane scales and OEM applications, the 110AH is often found in the fishing, agricultural, construction, and manufacturing sectors.
Features:ย
- Material: Alloy steel
- Rated Capacities: 5t, 20t, 50t
- Full Scale Output: 2mV/V ยฑ 10%
- Safe Overload: 200%
- Breaking Overload: 400%
- IP Rating: IP67
- CE and RoHS certified
| Rated Capacity | 5t, 20t, 50t |
| Full Scale Output | 2mV/V ยฑ 10% |
| Zero Balance | ยฑ 0.05mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 400ฮฉ ยฑ20ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Compensated Temperature Range | –10ยฐC to 50ยฐC/14ยฐF to 122ยฐF |
| Safe Overload | 200% of full scale |
| Breaking Overload | 400% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP67 |
