108KS Single Point Load Cell
Description:

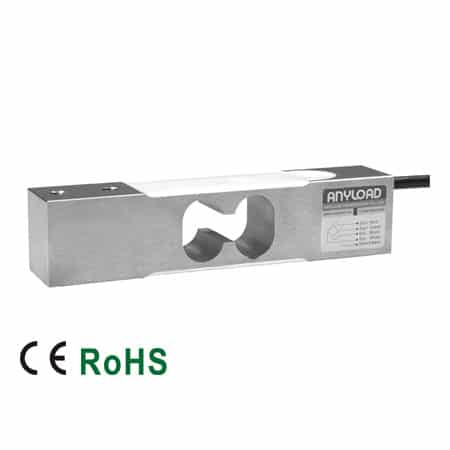

The 108KS is a compact IP66 stainless steel single-point load cell with excellent accuracy. It is a reliable and cost-effective solution for lower-capacity applications and will perform against eccentric loading and under harsh conditions. Common applications include platform scales, bench scales, counting scales, check to weigh, retail scales, and more. The 108KS is also interchangeable with Vishay Tedea-Huntleigh 1130.
Features:
- Material: Stainless steel
- Thread: Metric
- Rated Capacities: 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
- Full Scale Output: 2mV/V ยฑ 10%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- CE and RoHS certified
| Rated Capacities | 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg |
| Reference Max. Platform Size | 400mm x 400mm |
| Full Scale Output | 2mV/V ยฑ 10% |
| Zero Balance | ยฑ 0.02mV/V |
| Non-linearity | < ยฑ 0.017% |
| Repeatability | < ยฑ 0.017% |
| Hysteresis Error | < ยฑ 0.017% |
| Creep in 30 minutes | < ยฑ 0.023% |
| Input Resistance | 385ฮฉ ยฑ 15ฮฉ |
| Output Resistance | 350ฮฉ ยฑ 3ฮฉ |
| Recommended Excitation (DC/AC) | 10V (15V Maximum) |
| Insulation Resistance | > 2Gฮฉ (50V DC) |
| Temperature Effect on Sensitivity | < ยฑ0.0012% of Cn/k |
| Temperature Effect on Zero Balance | < ยฑ 0.0040% of Cn/k |
| Nominal Temperature Range | –10ยฐC to 40ยฐC/14ยฐF to 104ยฐF |
| Service Temperature Range | –18ยฐC to 65ยฐC/0ยฐF to 149ยฐF |
| Storage Temperature Range | -50ยฐC to 85ยฐC/-58ยฐF to 185ยฐF |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
Note: You may need a software that can open/view STEP files.
| Manufacturer | Model |
| HBM | PC30 |
| Vishay Tedea-Huntleigh | 1130* |
* Vishay Tedea-Huntleigh 1130 has a M6 mounting hole
