108KS Célula de carga monopunto

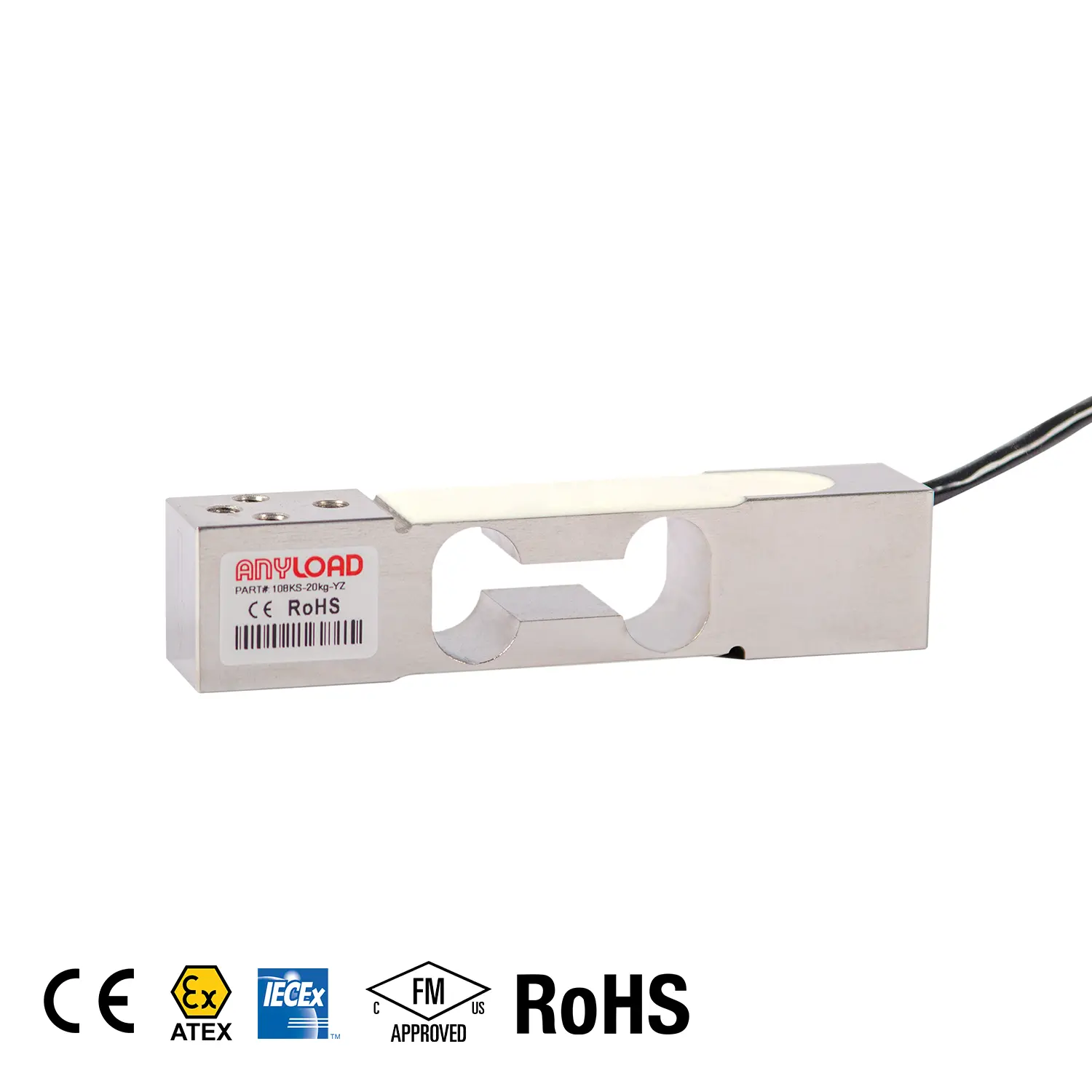

The ANYLOAD 108KS is a precision stainless steel shear beam load cell engineered for demanding industrial weighing applications requiring robust corrosion resistance. Constructed from 2Cr13 stainless steel with IP66 environmental sealing and an M6 threaded mounting interface, the 108KS delivers exceptional durability in harsh outdoor and wet environments. Available in capacity ratings from 4kg to 150kg, this single-point load cell provides outstanding accuracy with 2.0 mV/V ±10% full-scale output and repeatability of ±0.017%, making it ideal for platform scales, truck weighing systems, and tank level measurement.
The 108KS carries ATEX, FM, and IECEx certifications for hazardous area compliance, along with RoHS and CE compliance for environmental standards. The sealed cable connector and comprehensive EMI protection ensure stable signal transmission across demanding process environments, while the 150% safe overload rating provides reliable performance under variable loading conditions.
The 108KS is directly interchangeable with the Flintec PC30, offering seamless integration into existing weighing systems. Operating temperature compensation from -10°C to 50°C and comprehensive environmental protection make the 108KS the preferred choice for logistics, manufacturing, agriculture, and infrastructure weighing applications worldwide.
Características
- Rated Capacities: 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg
- Material: Stainless Steel (2Cr13)
- Full Scale Output: 2.0 mV/V ± 10%
- Sobrecarga segura: 150% del fondo de escala
- Sobrecarga de rotura: 300% del fondo de escala
- IP Rating: IP66 (Environmentally Sealed)
- Reference Platform Size: 400 × 400 mm
- Excitation: 10V (15V Maximum)
- Certificado CE y RoHS
- ATEX, FM, IECEx disponibles bajo pedido
Especificaciones
| Capacidades nominales | 4kg, 7kg, 10kg, 15kg, 20kg, 30kg, 50kg, 75kg, 100kg, 150kg |
|---|---|
| Salida a fondo de escala | 2.0 mV/V ± 10% |
| Saldo cero | ± 0.02 mV/V |
| No linealidad | < ± 0.017% |
| Repetibilidad | < ± 0.017% |
| Error de histéresis | < ± 0.017% |
| Creep in 30 Minutes | < ± 0.023% |
| Resistencia de entrada | 385Ω ± 15Ω |
| Resistencia de salida | 350Ω ± 3Ω |
| Elemento Material | Acero inoxidable 2Cr13 |
| Excitación recomendada | 10 V (15 V máximo) |
| Referencia Max. Tamaño de la plataforma | 400 × 400 mm |
| Resistencia del aislamiento | > 2GΩ (50V DC) |
| Rango de temperatura compensado | -10°C a 50°C / 14°F a 122°F |
| Sobrecarga segura | 150% del fondo de escala |
| Romper la sobrecarga | 300% del fondo de escala |
| Tipo de junta | Environmentally Sealed |
| Clasificación IP | IP66 |
| Certificaciones | CE and RoHS certified; ATEX, FM, IECEx available upon request |
Intercambiable
| HBM | PC30 |
|---|---|
| Vishay Tedea-Huntleigh | 1130* |
* Vishay Tedea-Huntleigh 1130 has a M6 mounting hole
