108JA-21 Single Point Load Cell

Name: 108JA-21 Single Point Load Cell
SKU: 19115
Availability: InStock

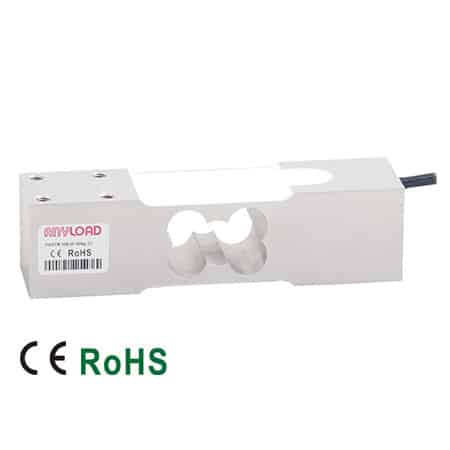

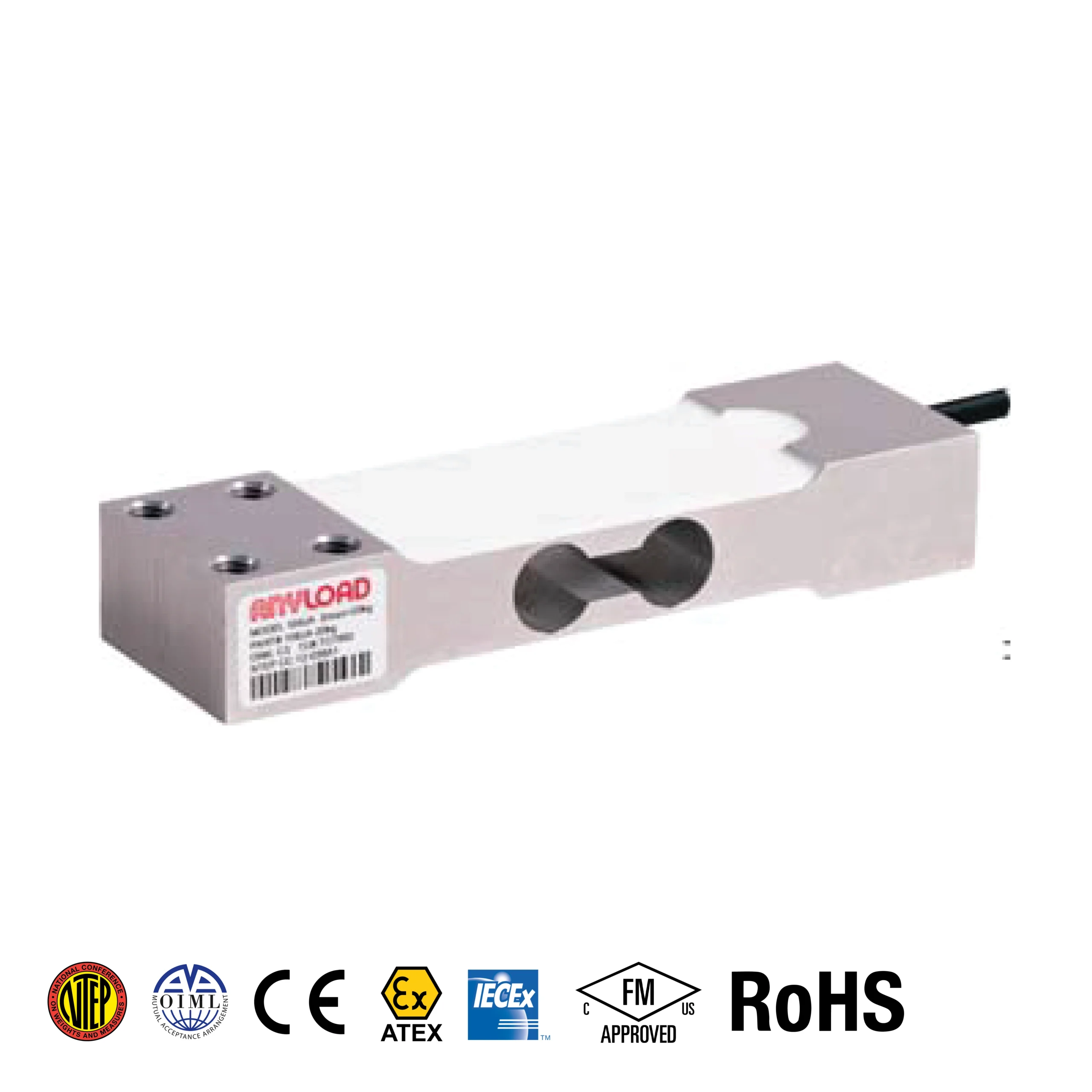

The ANYLOAD 108JA-21 is a compact aluminum single point load cell available in capacities from 30kg to 250kg, optimized for 500×500 mm platform scales and OEM weighing system integration.

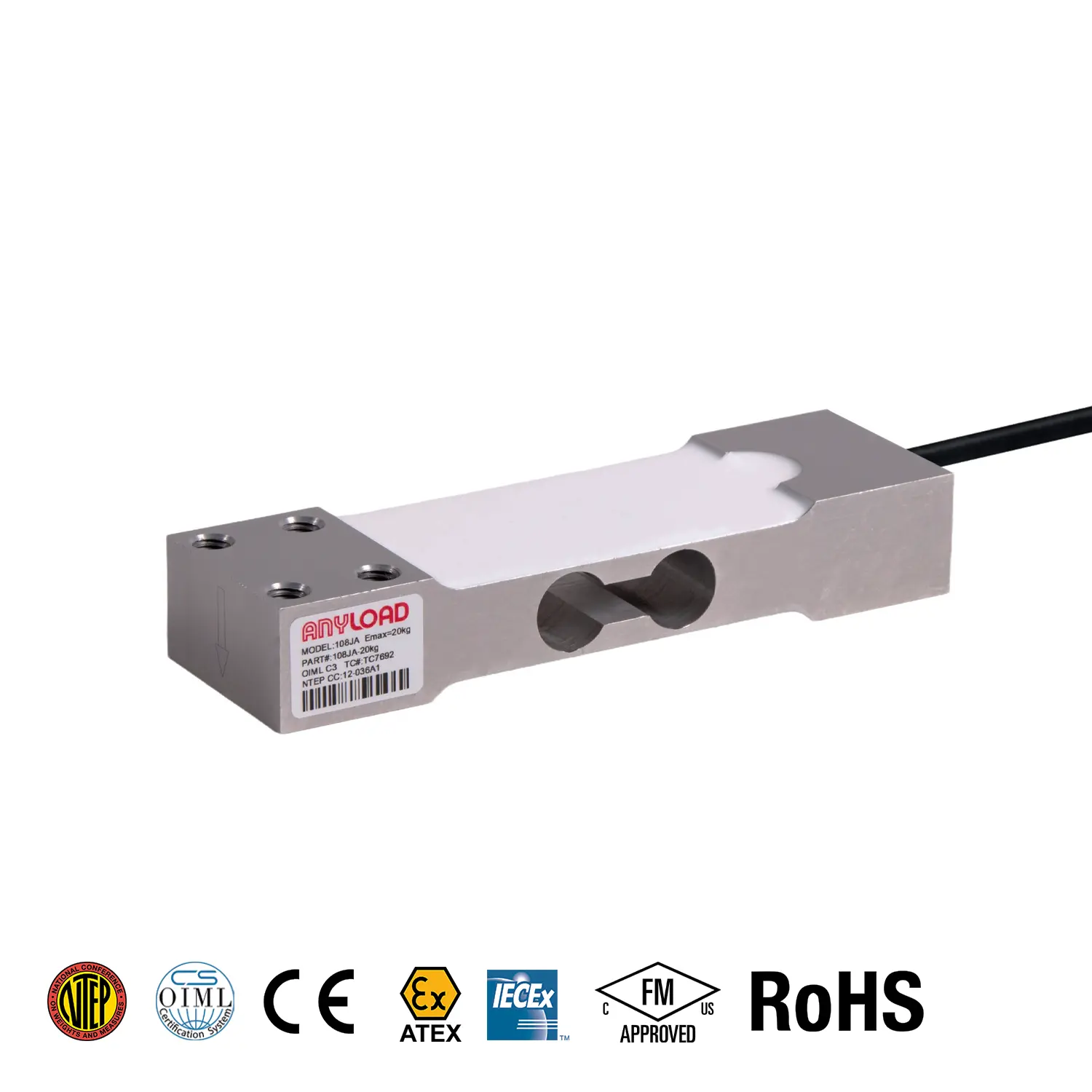

Sharing the same core performance specifications as the 108JA — including a 2.0 mV/V full scale output, IP66 sealing, and sub-±0.017% non-linearity, repeatability, and hysteresis — the 108JA-21 is engineered as a direct drop-in interchangeable replacement for the Anyload 108LAMT, Vishay-Tedea Huntleigh 1242, Vishay-Tedea Huntleigh 1241 (metric thread), and Mettler Toledo MT1241.

This makes it a practical and cost-effective solution for scale refurbishment, OEM sourcing, and service replacement across retail, postal, and light industrial weighing applications. ATEX, FM, and IECEx approved variants are available with the “-Ex” suffix for hazardous location installations.

Datasheet

Part Number

Clear

- +

Features

Rated Capacities: 30kg, 50kg, 75kg, 100kg, 150kg, 250kg
Material: Aluminum, Clear Anodized
Full Scale Output: 2mV/V ± 10%
Safe Overload: 150%
Breaking Overload: 300%
IP Rating: IP66
20kg-500kg: NTEP 1:5 000 Class III, Single Cell;
SE600kg-2t: NTEP 1:4 000 Class III, Single Cell
20kg-30kg: OIML-CS C7.5, Y=20 000;
50kg-500kg: OIML-CS C6, Y=29 000;
SE600kg-2t: OIML-CS C4, Y=4 000
CE and RoHS certified

Specifications

Rated Capacities	30kg, 50kg, 75kg, 100kg, 150kg, 250kg
Full Scale Output	2mV/V ± 10%
Zero Balance	± 0.02mV/V
Non-linearity	< ± 0.017%
Repeatability	< ± 0.017%
Hysteresis Error	< ± 0.017%
Creep in 30 minutes	< ± 0.010%
Input Resistance	415Ω ± 15Ω
Output Resistance	350Ω ± 3Ω
Recommended Excitation	10V (15V Maximum)
Insulation Resistance	> 2GΩ (50V DC)
Nominal Effect on Sensitivity	–10°C to 40°C/14°F to 104°F
Safe Overload	150% of full scale
Breaking Overload	300% of full scale
Seal Type	Environmentally sealed
IP Rating	IP66
