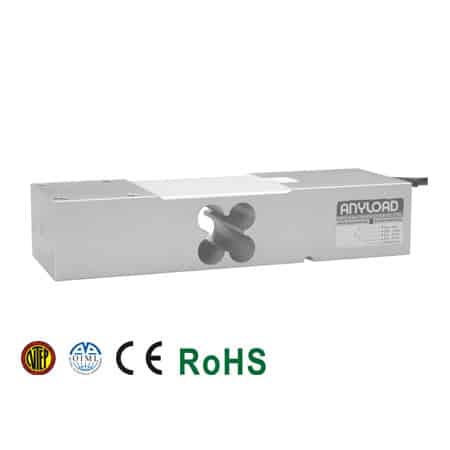

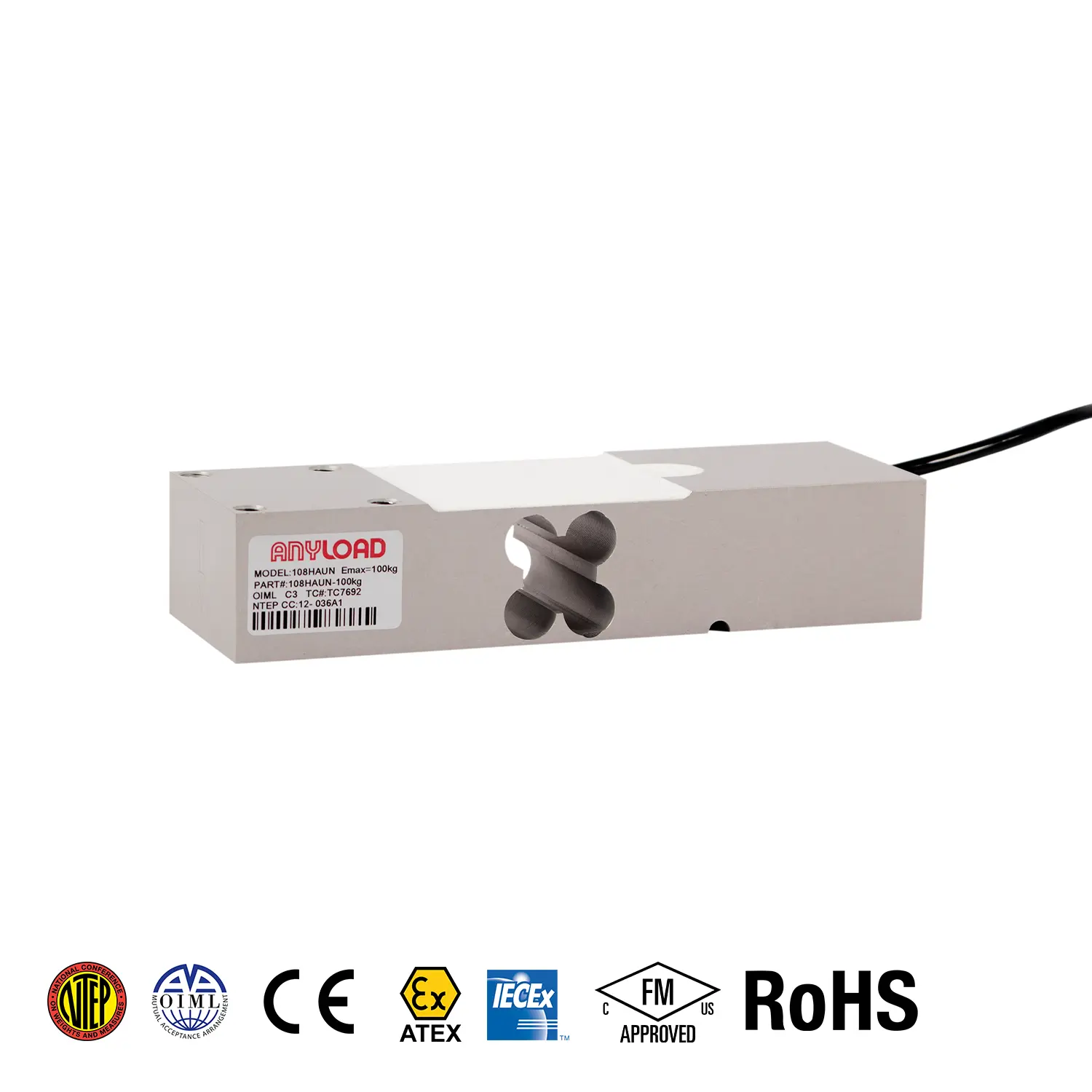

108HAUN Single Point Load Cell
The 108HAUN Single Point Load Cell is a high-precision weighing sensor designed for platform scales and industrial weighing applications. Its robust construction and dependable performance deliver accurate measurements and reliable results in a variety of environments.
- Material: Aluminum, Clear Anodized
- Rated Capacities: 50kg, 100kg, 250kg, 635kg, 1t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
- 500 kg up to & including 1t: Certified up to OIML MAA C4, Y=4000
- CE and RoHS certified
Features
- Material: Aluminum, Clear Anodized
- Rated Capacities: 50kg, 100kg, 250kg, 635kg, 1t
- Full Scale Output: 2mV/V ± 0.25%
- Safe Overload: 150%
- Breaking Overload: 300%
- IP Rating: IP66
- 50 kg up to 500 kg: Certified up to OIML MAA C5, Y=12300
- 500 kg up to & including 1t: Certified up to OIML MAA C4, Y=4000
- CE and RoHS certified
Specifications
| Rated Capacities | 1Klb-75Klb |
|---|---|
| Reference Max. Platform Size | 550mm x 600mm |
| Full Scale Output | 2mV/V ± 0.25% |
| Non-linearity | < ± 0.017% |
| Repeatability | < ± 0.017% |
| Hysteresis Error | < ± 0.017% |
| Creep in 30 minutes | < ± 0.023% |
| Input Resistance | 415Ω ± 15Ω |
| Output Resistance | 350Ω ± 3Ω |
| Recommended Excitation | 10V (15V Maximum) |
| Insulation Resistance | > 2GΩ (50V DC) |
| Temperature Effect on Sensitivity | < ±0.0012% of Cn/k |
| Nominal Temperature Range | –10°C to 40°C/14°F to 104°F |
| Service Temperature Range | –18°C to 65°C/0°F to 149°F |
| Storage Temperature Range | -50°C to 85°C/-58°F to 185°F |
| Safe Overload | 150% of full scale |
| Breaking Overload | 300% of full scale |
| Seal Type | Environmentally sealed |
| IP Rating | IP66 |
