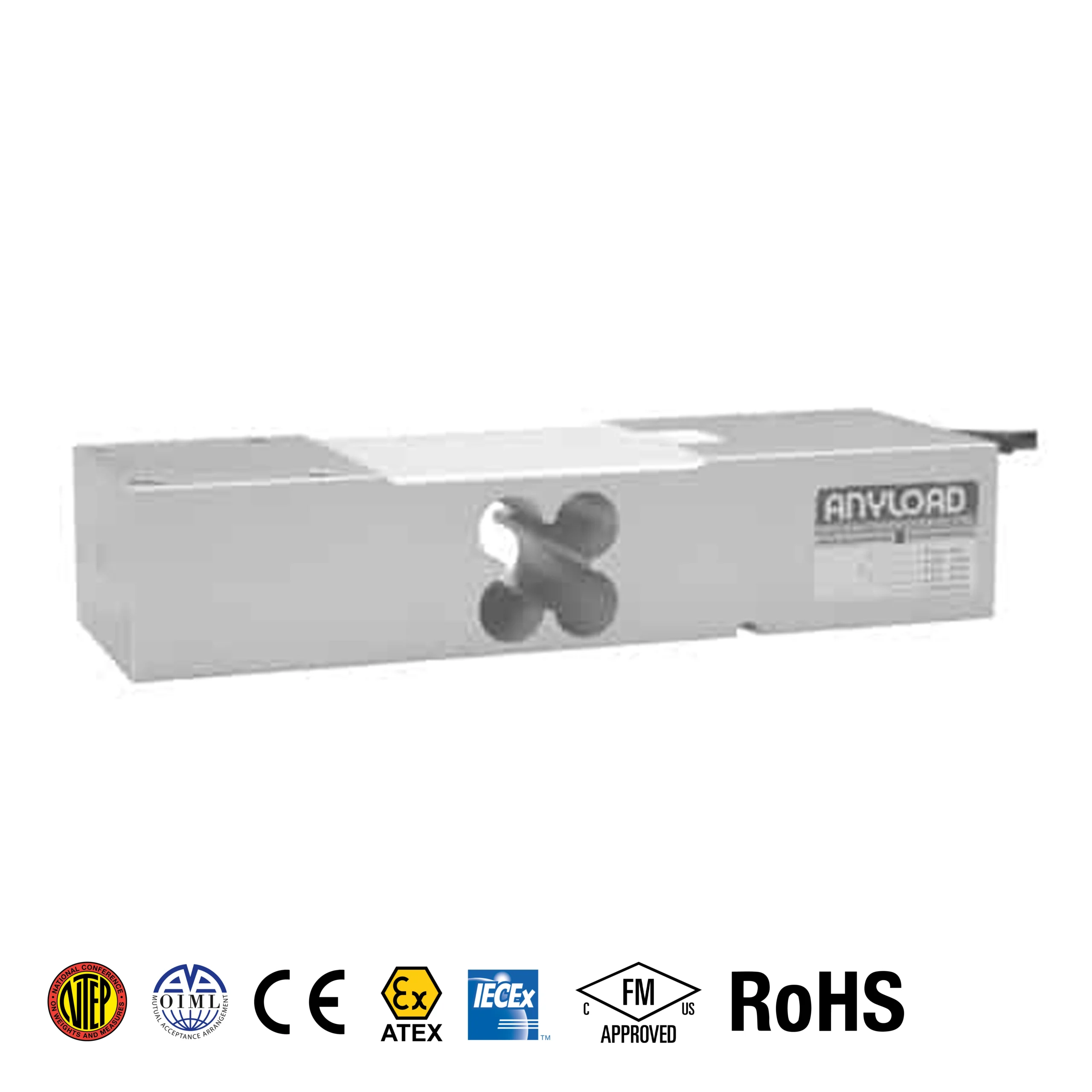

108HAUN Célula de carga monopunto

The 108HAUN delivers a full scale output of 2.0 mV/V ±0.25% with non-linearity, repeatability, and hysteresis errors all held below ±0.017%, ensuring consistent and precise measurement performance across its rated capacity range. Its compact single point design accommodates reference platform sizes up to 550×600 mm, allowing a single load cell to support the full platform without the complexity of multi-cell configurations. The cell operates on a recommended excitation of 10V (15V maximum) and performs reliably across a nominal temperature range of -10°C to 40°C (-14°F to 104°F), with a safe overload rating of 150% and breaking overload of 300% of full scale.

Certified to NTEP Class III (1:5,000 for 50kg – 250 kg; 1:4,000 for 635kg – 1t) and OIML-CS C6/C4 standards, the 108HAUN is well suited for legal-for-trade commercial weighing applications including retail scales, postal scales, medical scales, and industrial bench scales. ATEX, FM, and IECEx approved versions are available with the “-Ex” suffix for use in hazardous locations. RoHS compliant and CE marked, the 108HAUN meets international regulatory requirements for both commercial and industrial deployments.

If your application requires a compact, certified single point load cell for platform scale integration or OEM weighing system design, ANYLOAD can assist with selection across capacity ranges and approval classes. Contact us to discuss your platform dimensions, accuracy requirements, or hazardous area certifications.
