Load Cells for Motorsport Corner Balancing
and Force Measurement

Stable Readings Under Vibration for Four-Corner Weighing and Dynamic Testing

In the racing car industry, precise force and weight measurement is critical for vehicle setup, performance evaluation, and safety analysis. Applications such as suspension tuning, corner balancing, braking analysis, and aerodynamic load measurement rely on fast, accurate, and repeatable data to ensure consistent handling and optimized performance. ANYLOAD’s high-performance load cells, developed for demanding dynamic measurement environments, are well suited for use in motorsport testing and racing vehicle applications.

Desafío

  1. High Vibration Exposure: Racing vehicles operate in an environment with continuous vibration from engines, drivetrains, suspension movement, and road surface impacts.These vibrations can introduce noise, drift, and instability into force measurements, reducing confidence in setup data and making fine adjustments difficult.
  2. Four-Corner Weight Consistency & Corner Adjustment: Accurate four-corner weight measurement is critical during vehicle setup and corner balancing. Each corner must provide consistent and repeatable readings to ensure proper suspension balance, predictable handling, and even tire loading. Any deviation between corner measurements can lead to setup errors and compromised vehicle performance.
  3. Sensitivity Matching for Multi-Channel Measurement Systems: In multi-load-cell systems such as four-corner weighing platforms, mismatched sensor sensitivity can introduce measurement offsets between channels. Even small sensitivity variations can distort comparative weight readings, negatively impacting setup accuracy and repeatability. For motorsport applications, tightly matched sensitivity across all load cells is essential for meaningful corner-to-corner comparison.

Solución

  1. High Natural Frequency & Vibration Resistance: An optimized structural design with a high natural frequency minimizes resonance effects,
    reducing vibration-induced signal noise and improving measurement stability in high-vibration racing environments.

  2. Precise Corner Adjustment Through Consistent Output: ANYLOAD load cells provide stable, repeatable output across all four corners, enabling accurate corner balancing and suspension setup. Consistent measurement performance ensures that weight changes during adjustment are correctly reflected at each corner, allowing engineers to achieve balanced load distribution and predictable handling characteristics.

  3. Matched & Tuned Sensitivity Across All Load Cells: All load cells are individually calibrated and sensitivity-matched to 2.0 mV/V, with a tight tolerance of ±0.25%. This ensures uniform response across all measurement channels, minimizing corner-to-corner deviation and improving the accuracy of comparative weight analysis in four-corner and multi-sensor racing applications.

    This level of matching ensures that weight changes observed during setup reflect true mechanical adjustments rather than sensor variation.

Conclusión

ANYLOAD’s high-performance load cells provide stable measurement, mechanical robustness, and high fatigue resistance, making them suitable for use in demanding racing car testing and performance evaluation applications. Their ability to maintain reliable output under vibration, overload conditions, and repeated dynamic forces supports consistent data collection in motorsport environments. With a structurally optimized design focused on durability and measurement stability, these load cells help engineers and teams obtain dependable force data for vehicle setup, analysis, and development, contributing to improved performance consistency and operational reliability.
Enviar consulta

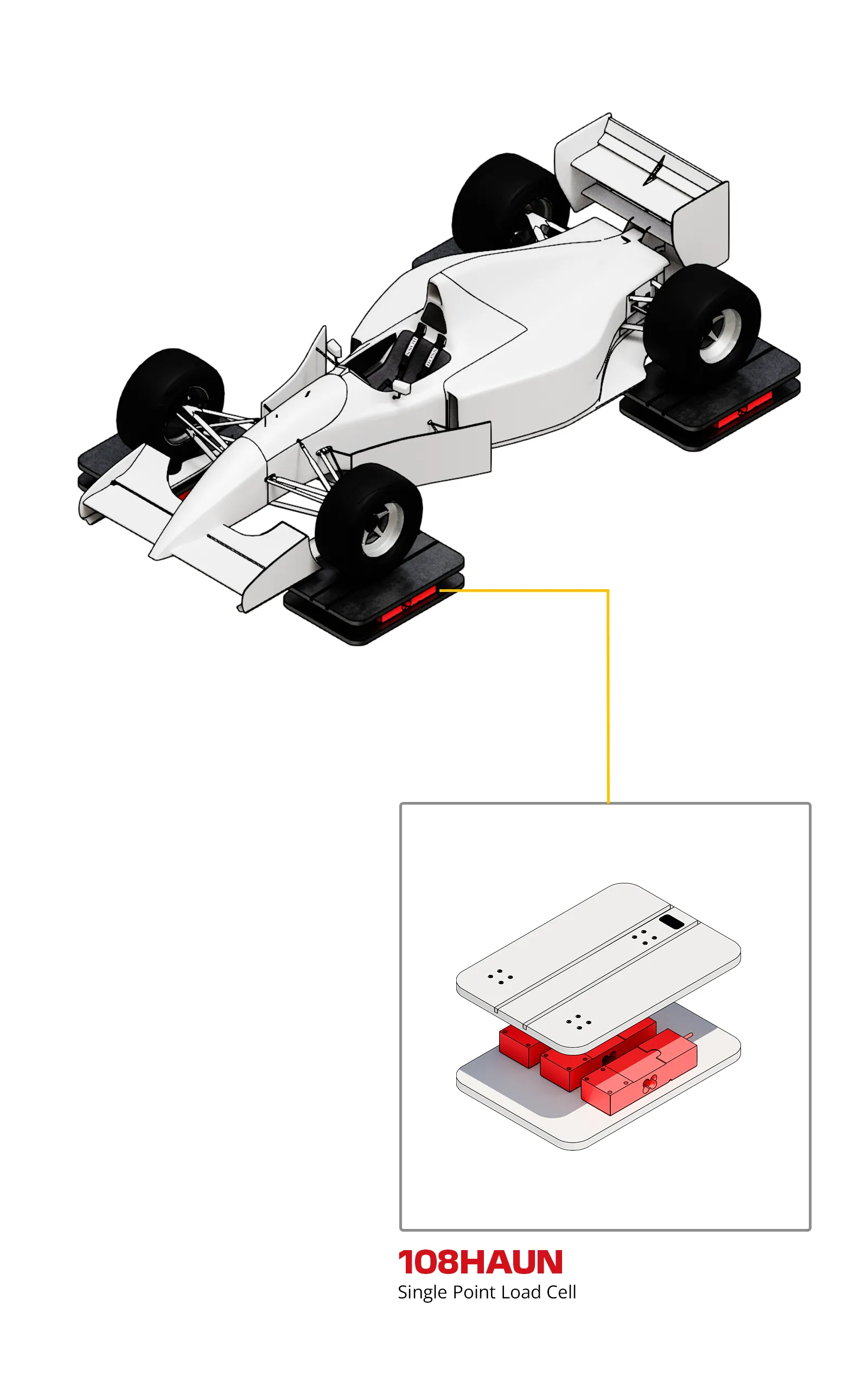

AL-Motorsport-Corner-Balance-Force
